纽荷兰零件查询(FD255) - CRAWLER DOZER (N.A. VERSION) (7/95-) (0.300[01]) - OIL PUMP - ENGINE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
193 次

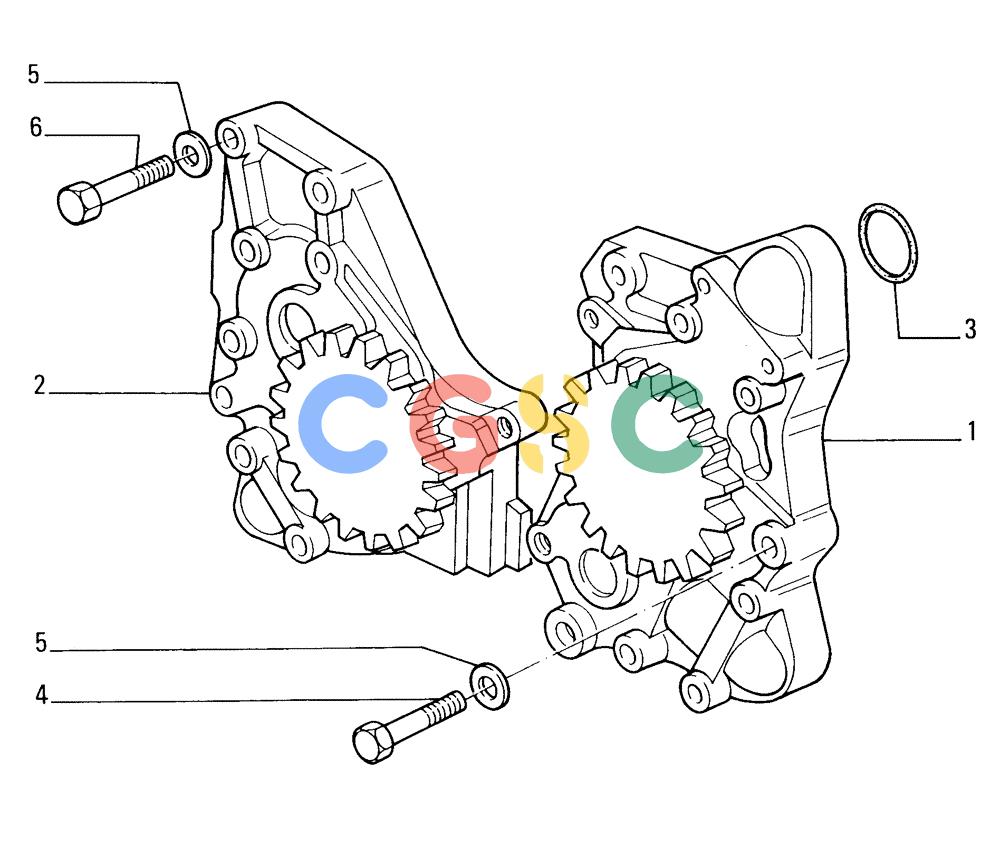

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 61319221 | [1] | ENGINE OIL PUMP | ZED- SUCTION ASSY - SEE PAG.2 |
| 2. | 61318396 | [1] | ENGINE OIL PUMP | LEC- SCAVENGING ASSY - SEE PAG.3 |
| 3. | 17282381 | [1] | SEALING ELEMENT | ZED2,62X25,07 Superseded by part number: 14457881 |
| 4. | 11288024 | [4] | BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8 | TTF |
| 5. | 11198374 | [6] | BELLEVILLE WASHER,Belleville, M10.5 | TTF |
| 6. | 11307031 | [2] | BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9 | TOR |
