纽荷兰零件查询(FD255) - CRAWLER DOZER (N.A. VERSION) (7/95-) (0.270[01]) - PLUG PIN BLOCK- CRANKCASE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
588 次

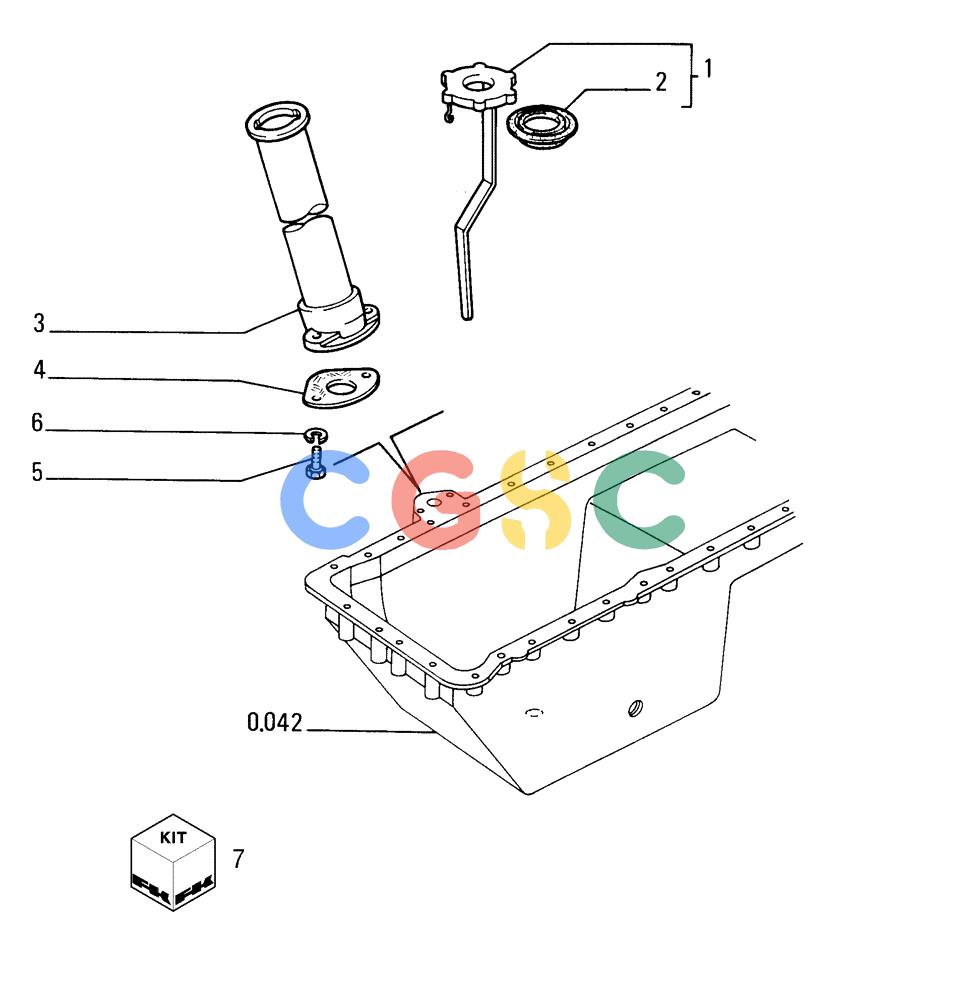

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 61319977 | [1] | DIPSTICK | LEC- ASSY, Serial Range: -C3747 Superseded by part number: 61319474 |
| 1. | 61319474 | [1] | DIPSTICK | LEC- ASSY, Start Serial: D3747 |
| 2. | 4161222 | [1] | SEAL | MOD Superseded by part number: 98418978 |
| 3. | 61674133 | [1] | RIGID TUBE | LEC |
| 4. | 61319064 | [1] | GASKET | LEC |
| 5. | 16043824 | [2] | SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd | TTF |
| 6. | 11198071 | [2] | BELLEVILLE WASHER,Belleville, M8.4 | TOR Superseded by part number: |
| 7. | 1940142 | [1] | ENGINE GASKET KIT | LEC |
