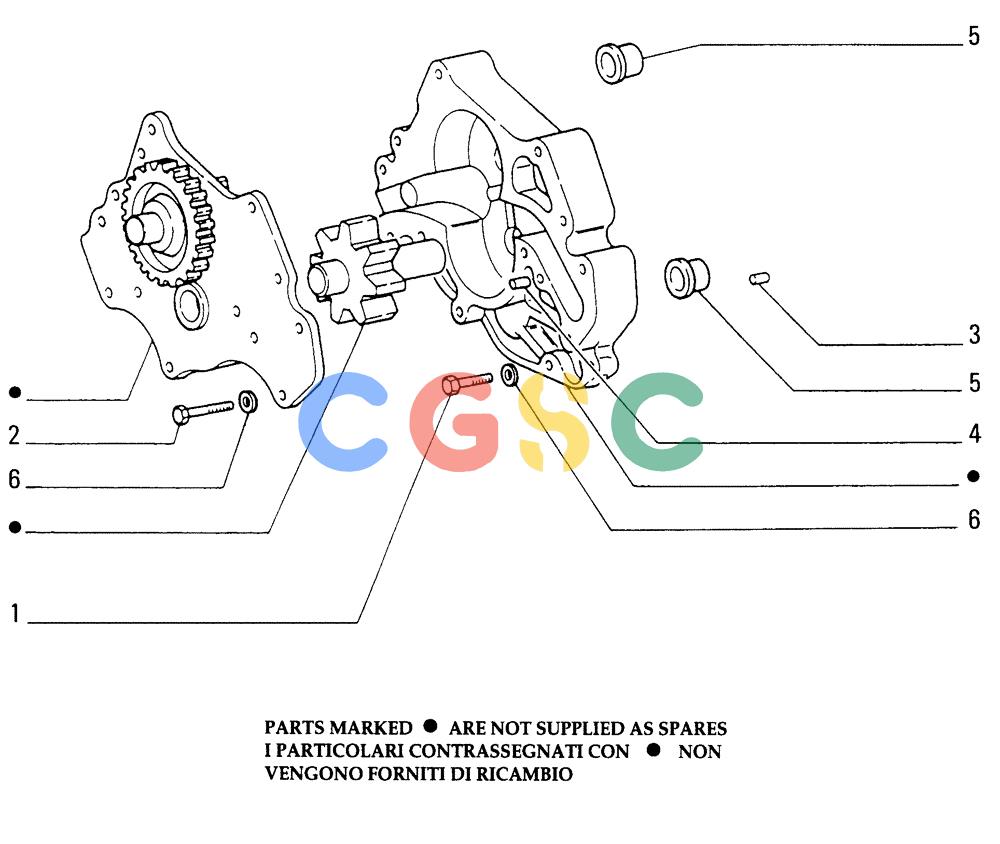

纽荷兰零件查询(FD255) - CRAWLER DOZER (N.A. VERSION) (7/95-) (0.300[03]) - OIL SCAVENGING PUMP-ENGINE - COMPONENTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
280 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 16043724 | [1] | BOLT,Hex, M8 x 1.25 x 28mm, Cl 8.8, Full Thd | JES Superseded by part number: 16043731 |
| 2. | 16044124 | [3] | BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8 | TTF |
| 3. | 61577156 | [1] | DOWEL | LEC |
| 4. | 61585585 | [2] | DOWEL | ZED |
| 5. | 4800891 | [2] | BUSHING | LEC |
| 6. | 11193874 | [4] | BELLEVILLE WASHER,8.4mm ID x 16.00mm OD x 1.4mm, 1.85mm, Cl 8.8 | TTF |
