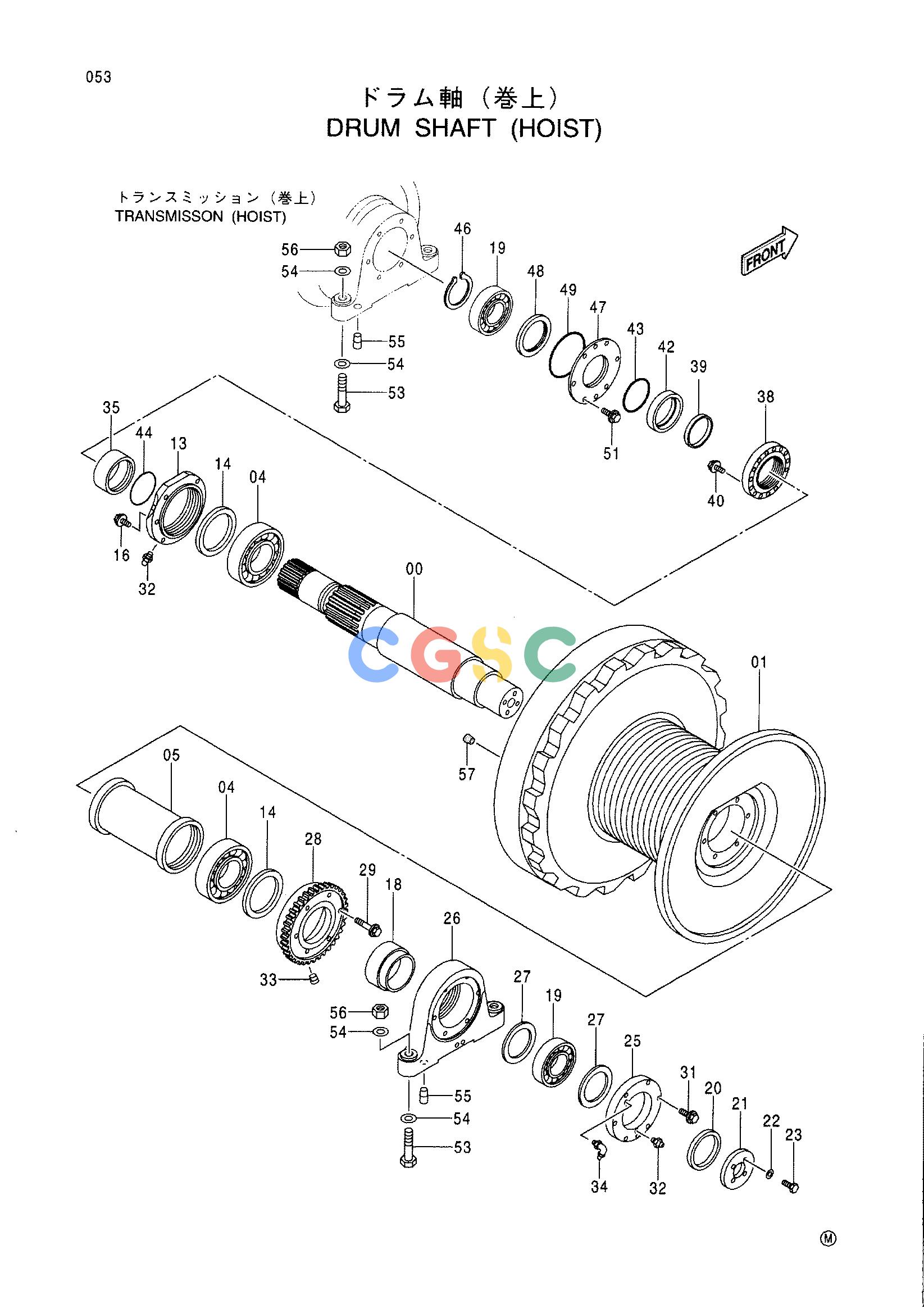

日立零件查询（CX1000）DRUM SHAFT (HOIST) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
1007 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | +++++++ | [2] | DRUM SHAFT (HOIST) | |
| 00. | 1019659 | [1] | SHAFT;DRUM | |
| 01. | 0001907 | [1] | DRUM | |
| 04. | 4222017 | [2] | BRG.;SPH.ROL. | |
| 05. | 9735404 | [1] | SPACER | |
| 13. | 3041912 | [1] | RETAINER;BRG. | |
| 14. | 4116190 | [2] | SEAL;OIL | |
| 16. | J011265 | [6] | BOLT;SEMS | |
| 18. | 4222240 | [1] | SPACER | |
| 19. | 4117992 | [2] | BRG.;SPH.ROL. | |
| 20. | 4222239 | [1] | SPACER | |
| 21. | 4222237 | [1] | RETAINER | |
| 22. | 4086891 | [4] | WASHER | |
| 23. | J901240 | [4] | BOLT | |
| 25. | 4373365 | [1] | RETAINER;BRG. | |
| 26. | 3075575 | [1] | PEDESTAL | |
| 27. | 4023745 | [2] | SEAL;OIL | |
| 28. | 3075799 | [1] | COVER | |
| 29. | J011285 | [6] | BOLT;SEMS | |
| 31. | J011240 | [6] | BOLT;SEMS | |
| 32. | J75481 | [3] | FITTING;GREASE | |
| 33. | 94-2010 | [1] | PLUG | |
| 34. | J75581 | [1] | FITTING;GREASE | |
| 35. | 4325259 | [1] | SPACER | |
| 38. | 4222242 | [1] | NUT | |
| 39. | 4260285 | [1] | SPACER | |
| 40. | J011255 | [2] | BOLT;SEMS | |
| 42. | 4222244 | [1] | SPACER | |
| 43. | A810150 | [1] | O-RING | |
| 44. | A810170 | [1] | O-RING | |
| 46. | 4070854 | [1] | RING;RETAINING | |
| 47. | 4222245 | [1] | RETAINER;BRG. | |
| 48. | 4116188 | [1] | SEAL;OIL | |
| 49. | A810220 | [1] | O-RING | |
| 51. | J011235 | [6] | BOLT;SEMS | |
| 53. | J833614 | [4] | BOLT | |
| 54. | 4114410 | [8] | WASHER | |
| 55. | 4122547 | [4] | PIN;KNOCK | |
| 56. | J953036 | [4] | NUT | |
| 57. | 456336 | [2] | CORK | |
