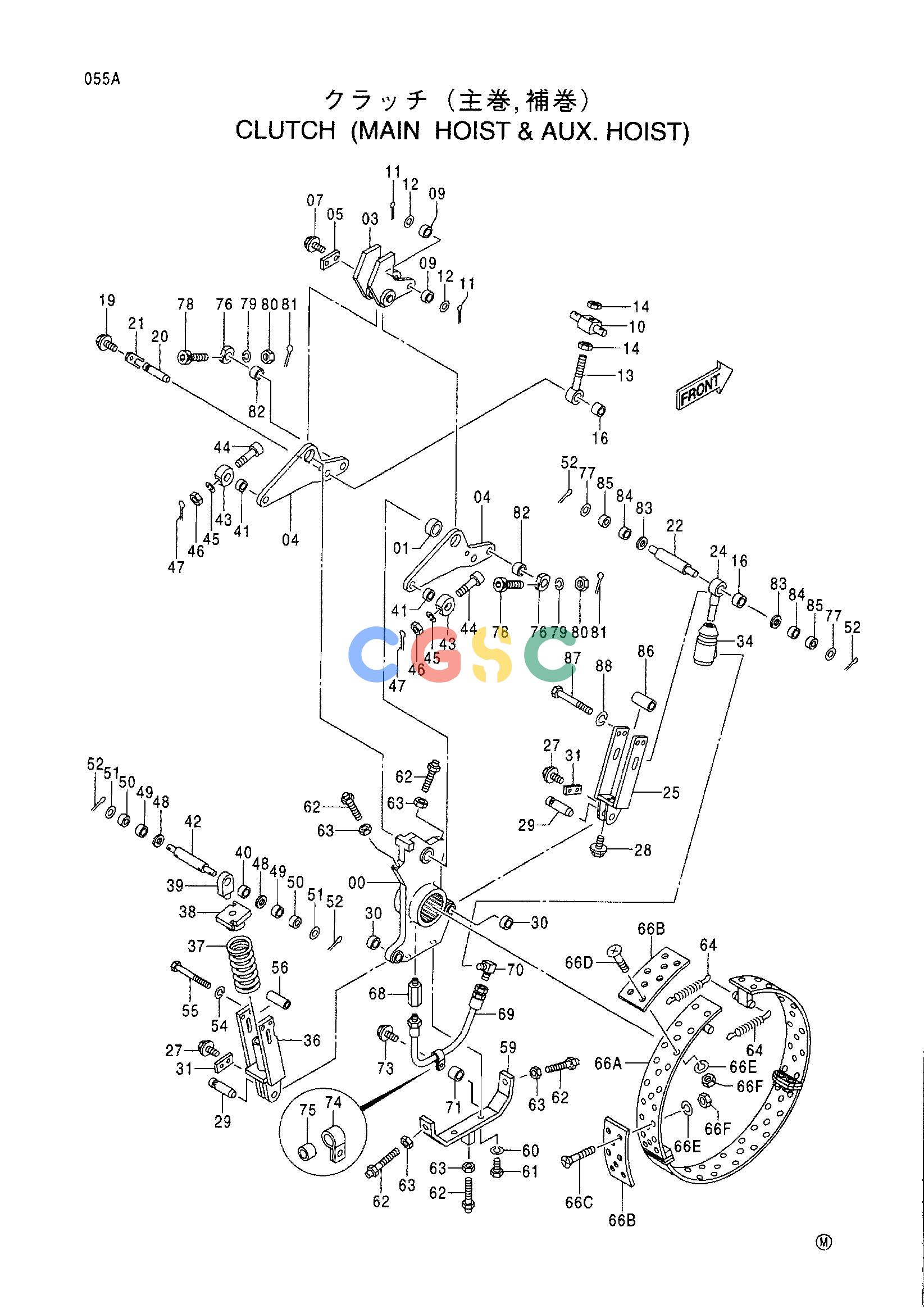

日立零件查询（CX1000）CLUTCH (MAIN HOIST & AUX.HOIST) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
483 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | +++++++ | [2] | CLUTCH | |
| 00. | 1012250 | [1] | DRIVER;CLUTCH | |
| 01. | 4161616 | [1] | BUSHING | |
| 03. | 8041701 | [1] | LEVER | |
| 04. | 3072060 | [2] | LEVER | |
| 05. | 4189281 | [2] | PLATE;ROCK | |
| 07. | J011228 | [4] | BOLT;SEMS | |
| 09. | 4178442 | [2] | BUSHING | |
| 10. | 4178395 | [1] | TRUNNION | |
| 11. | A768045 | [2] | PIN;SPLIT | |
| 12. | A590130 | [2] | WASHER;PLANE | |
| 13. | 4178394 | [1] | BOLT;EYE | |
| 14. | J953030 | [2] | NUT | |
| 15. | 4221833 | [1] | BUSHING | |
| 16. | 4161618 | [1] | BUSHING | |
| 19. | J011228 | [1] | BOLT;SEMS | |
| 20. | 4330502 | [1] | PIN | |
| 21. | 4330503 | [1] | PLATE;LOCK | |
| 22. | 4347705 | [1] | PIN | |
| 24. | 4347695 | [1] | ROD;PUSH | |
| 25. | 8062154 | [1] | BRACKET | |
| 27. | J011228 | [4] | BOLT;SEMS | |
| 28. | J011230 | [2] | BOLT;SEMS | |
| 29. | 4189276 | [2] | PIN | |
| 30. | 4182290 | [2] | BUSHING | |
| 31. | 4189279 | [2] | PLATE;ROCK | |
| 34. | 4219486 | [1] | CYLINDER;OIL | |
| 36. | 8041699 | [1] | BRACKET | |
| 37. | 4189460 | [1] | SPRING | |
| 38. | 9730081 | [1] | SEAT | |
| 39. | 4221881 | [1] | ROD;PUSH | |
| 40. | 4221833 | [1] | BUSHING | |
| 41. | 4178443 | [2] | BUSHING | |
| 42. | 4221843 | [1] | PIN | |
| 43. | 4221844 | [2] | SPACER | |
| 44. | 4221834 | [2] | BOLT;SOCKET | |
| 45. | A590908 | [2] | WASHER;SPRING | |
| 46. | M500807 | [2] | NUT | |
| 47. | A762020 | [2] | PIN;SPLIT | |
| 48. | 4221845 | [2] | SPACER | |
| 49. | 4221848 | [2] | BUSHING | |
| 50. | 4221847 | [2] | ROLLER | |
| 51. | 4221846 | [2] | SPACER | |
| 52. | A763036 | [4] | PIN;SPLIT | |
| 54. | A590912 | [2] | WASHER;SPRING | |
| 55. | J901213 | [2] | BOLT | |
| 56. | 4393753 | [2] | SPACER | |
| 59. | 8041700 | [1] | GUIDE;BAND | |
| 60. | A590920 | [2] | WASHER;SPRING | |
| 61. | J912065 | [2] | BOLT | |
| 62. | 4222249 | [5] | BOLT | |
| 63. | J951020 | [5] | NUT | |
| 64. | 4222248 | [2] | SPRING | |
| 66A-. | 9150738 | [1] | BAND;CLUTCH ASS'Y | |
| 66A. | 6015349 | [1] | BAND;CLUTCH | |
| 66B. | 4357541 | [10] | LINING | |
| 66C. | M480832 | [66] | SCREW | |
| 66D. | M480845 | [10] | SCREW | |
| 66E. | A590908 | [76] | WASHER;SPRING | |
| 66F. | M500807 | [76] | NUT | |
| 68. | 485052 | [1] | ADAPTER | |
| 69. | 4067471 | [1] | HOSE | |
| 70. | 94-1402 | [1] | ELBOW;S | |
| 71. | 4222250 | [1] | SPACER | |
| 73. | J011040 | [1] | BOLT;SEMS | |
| 74. | 4190277 | [1] | CLIP | |
| 75. | 4023275 | [1] | PROTECTOR | |
| 76. | 4347722 | [2] | SPACER | |
| 77. | 4221846 | [2] | SPACER | |
| 78. | 4221834 | [2] | BOLT;SOCKET | |
| 79. | A590908 | [2] | WASHER;SPRING | |
| 80. | M500807 | [2] | NUT | |
| 81. | A762020 | [2] | PIN;SPLIT | |
| 82. | 4178443 | [2] | BUSHING | |
| 83. | 4221845 | [2] | SPACER | |
| 84. | 4221847 | [2] | ROLLER | |
| 85. | 4221848 | [2] | BUSHING | |
| 86. | 4347794 | [2] | SPACER | |
| 87. | J901211 | [2] | BOLT | |
| 88. | A590912 | [2] | WASHER;SPRING | |
