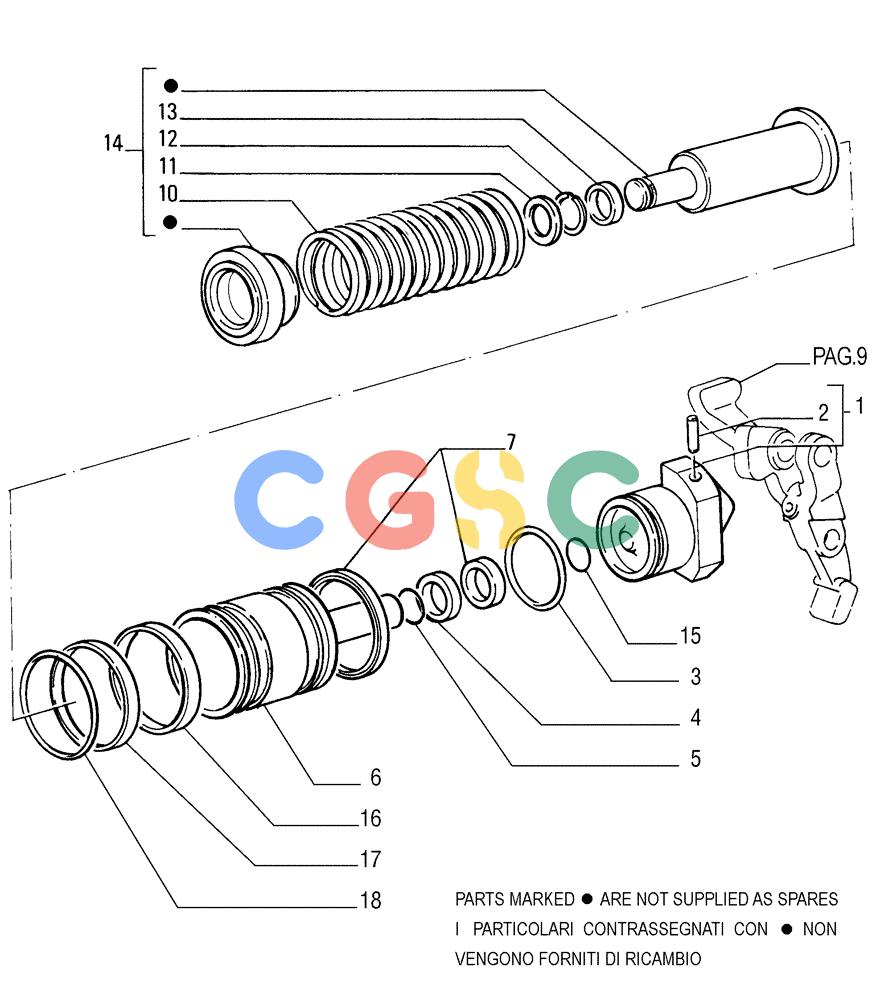

纽荷兰零件查询(FD255) - CRAWLER DOZER (N.A. VERSION) (7/95-) (1.277[10]) - REAR TRANSMISSION - BRAKES New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1017 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76041279 | [2] | PISTON | LEC, Start Serial: D3750 |
| 1. | 79107722 | [2] | PISTON | LEC, Serial Range: -C3750 Superseded by part number: 76041279 |
| 2. | 10336430 | [1] | PIN | LEC25X6 |
| 3. | 14465180 | [2] | O-RING,72.62mm ID x 3.53mm Width | BHB, Serial Range: -C3750 Superseded by part number: 14465181 |
| 4. | 79107769 | [4] | RING,40mm ID x 46.2mm OD x 7.5mm Thk | LEC |
| 5. | 14452081 | [2] | O-RING,39.69mm ID x 3.53mm Width | LEC |
| 6. | 79107746 | [2] | PISTON | LEC |
| 7. | 79102349 | [2] | SEAL | LECSEALS Superseded by part number: 76015451, 76015452 |
| 10. | 73140255 | [1] | SPRING | LEC |
| 11. | 79080202 | [1] | ROCKER ARM COTTER | LEC |
| 12. | 13398976 | [1] | SNAP RING,M40, Int | JES |
| 13. | 79060366 | [1] | RING,34.84mm ID x 39mm OD x 9.6mm Thk | LEC |
| 14. | 79107729 | [2] | SPRING | LEC- ASSY |
| 15. | 76027418 | [4] | SEAL,40mm ID x 55mm OD x 11.4mm Thk | LEC |
| 16. | 11075676 | [2] | SNAP RING,M115, Int | MKT |
| 17. | 11076976 | [2] | SNAP RING,M140, Int | TTF |
| 18. | 14473780 | [2] | O-RING,129.5mm ID x 5.33mm Width | MKT5,33X129,5 |
