纽荷兰零件查询(FD255) - CRAWLER DOZER (N.A. VERSION) (7/95-) (6.701[01]) - BATTERY - SEAT AND SUPPORT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
320 次

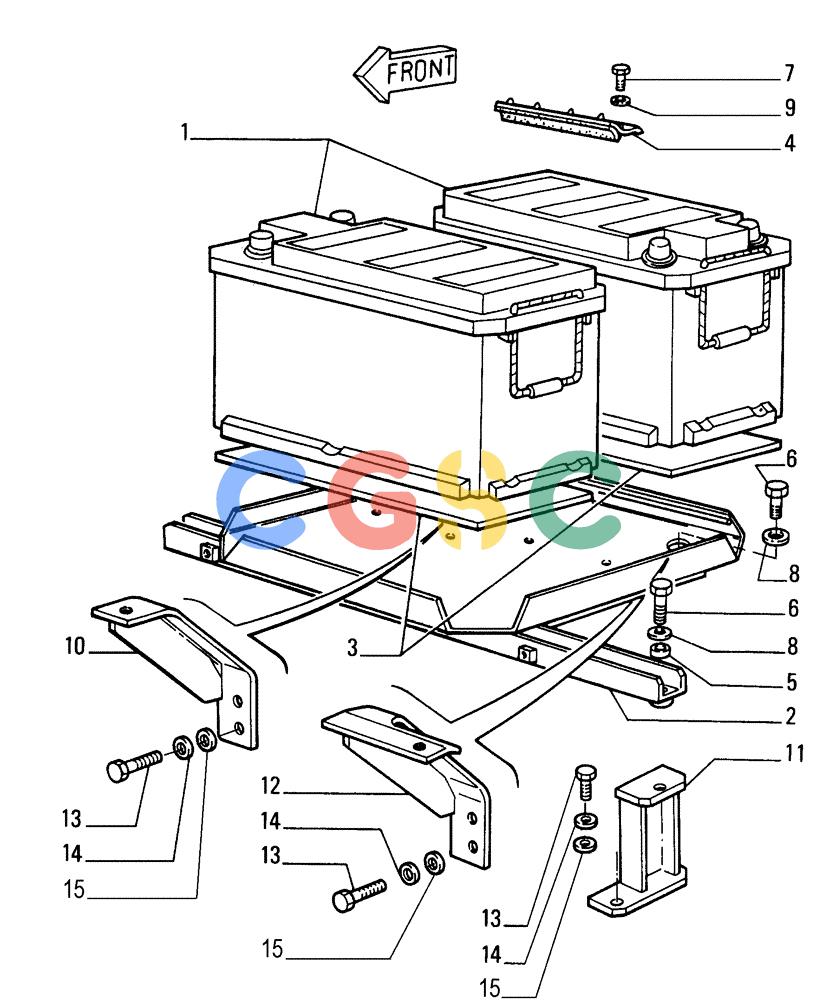

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76080875 | [2] | DRY BATTERY | LEC Superseded by part number: 1930935 |
| 2. | 79088092 | [1] | CONTAINER | LEC |
| 3. | 79010787 | [2] | PLATE | LEC |
| 4. | 79084347 | [2] | BRACKET | LEC |
| 5. | 79014057 | [2] | SPACER | LEC |
| 6. | 11106231 | [2] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9 | LEC |
| 7. | 16043631 | [4] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHB Superseded by part number: 43234 |
| 8. | 12626231 | [4] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 9. | 14496531 | [4] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 10. | 76020760 | [1] | BRACKET | LEC |
| 11. | 76026494 | [1] | BRACKET | LEC |
| 12. | 76027092 | [1] | BRACKET | LEC |
| 13. | 11112231 | [6] | SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd | LEC Superseded by part number: 398792 |
| 14. | 14496731 | [6] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 15. | 8281226 | [1] | SHIM,1mm Thk | MKT Superseded by part number: 8270597 |
