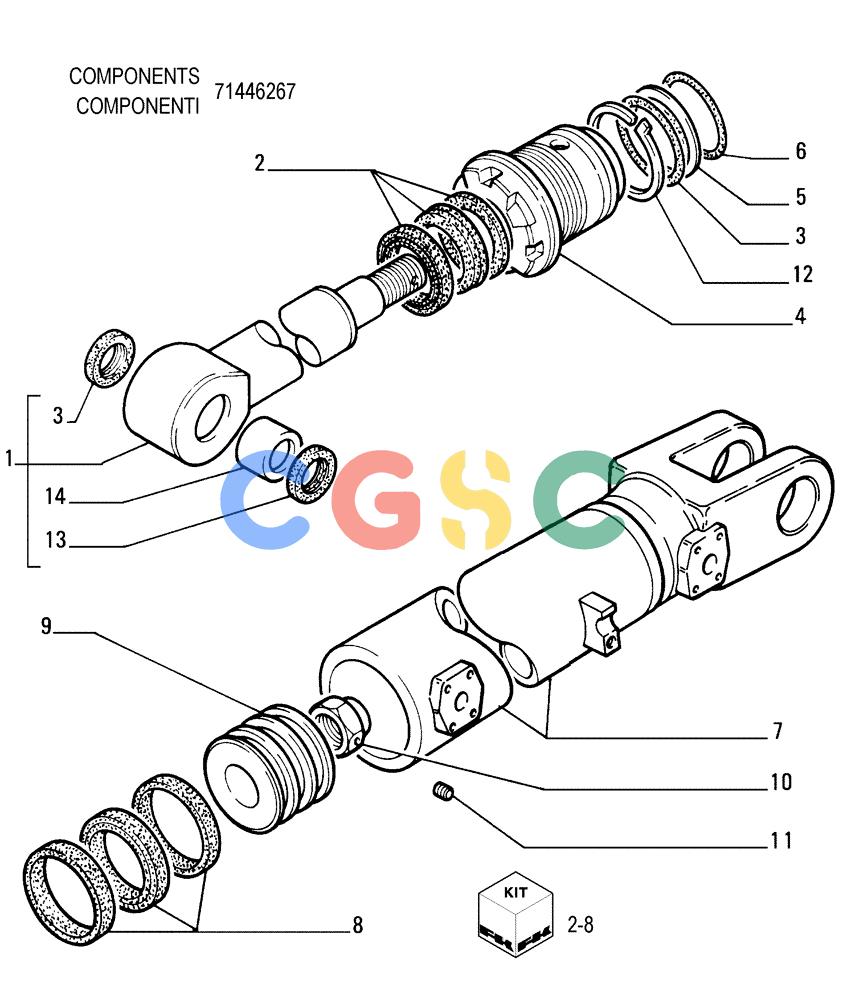

纽荷兰零件查询(FD255) - CRAWLER DOZER (N.A. VERSION) (7/95-) (9.522[04]) - RIPPER (PD) - CYLINDER - OPTIONAL CODE 76026270 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
543 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 71446268 | [1] | ROD | LEC- ASSY |
| 2. | 79071307 | [1] | SEAL | LEC |
| 3. | 14466880 | [1] | O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro | IMO Superseded by part number: 510828 |
| 4. | 71446271 | [1] | BASE PLATE | BEN |
| 5. | 79023161 | [1] | RING | LEC Superseded by part number: 79076122 |
| 6. | 14473280 | [1] | O-RING,0.21" Thk x 4.475" ID, -349, Cl 5, 75 Duro | LEC(M113.66 ID x 5.33 Thk) Superseded by part number: 70923601 |
| 7. | 71446272 | [1] | BARREL | LEC Superseded by part number: 71446267 |
| 8. | 79099850 | [1] | SET OF PARTS | LEC |
| 9. | 71446276 | [1] | PISTON | BEN |
| 10. | 79102347 | [1] | NUT | LEC |
| 11. | 79102350 | [1] | SCREW,M10 x 1.25 x 15mm | LEC |
| 12. | 79100796 | [1] | SEAL,134mm ID x 146mm OD x 12.5mm Thk | LEC |
| 13. | 8291846 | [2] | SEAL,70mm ID x 85mm OD x 7.5mm Thk | LEC |
| 14. | 79024123 | [1] | BUSHING | LEC |
