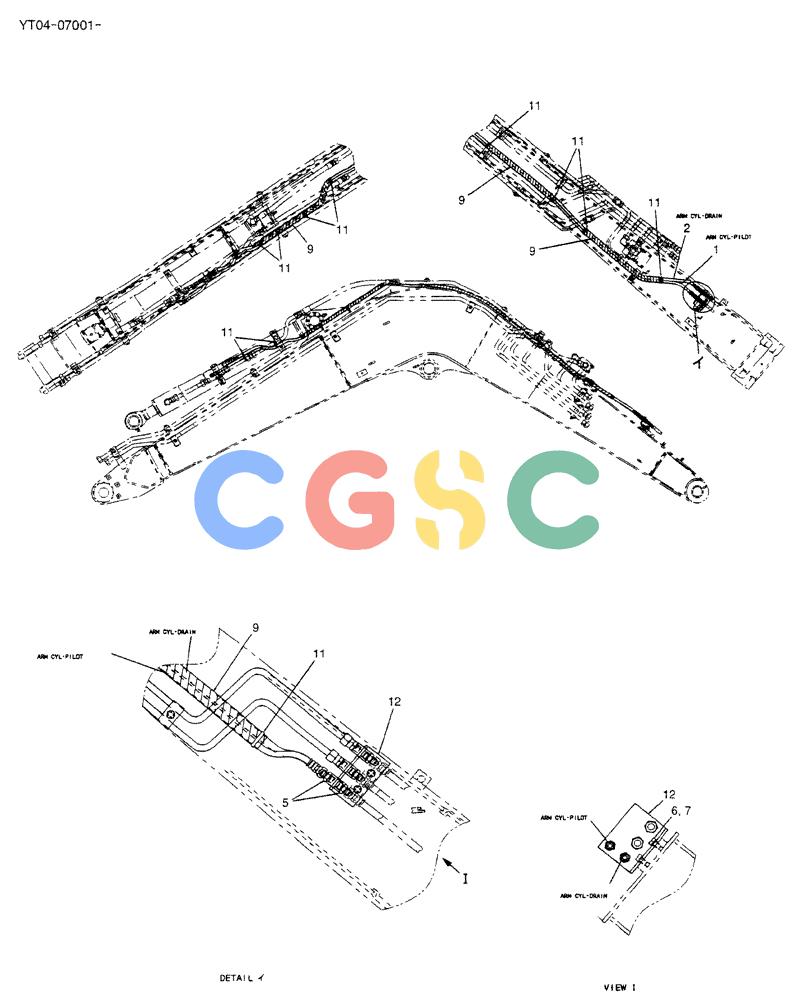

纽荷兰零件查询(BREAKER) - NIBBLER/BREAKER ATTACHMENT - E70SR ASN YT04-07001 (02-009) - HYD LINES, BOOM 3.72M (EXTRA + NIBBLER & BREAKER) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
987 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT42H00062F3 | [1] | HYD LINES, BOOM 3. 72M | |
| 1. | 2420R537D320 | [1] | HOSE ASSY.,9.60mm ID x 3200mm L | KOB3200mm Long (126 in) |
| 2. | 2444R1119D305 | [1] | HOSE | KOB |
| 5. | ZH22X06000 | [4] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) |
| 6. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 7. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 9. | 2414Z199D100 | [3] | GUARD | KOBHose -- 1000mm Long (39-3/8 in) |
| 11. | PY01P01043D8 | [10] | CABLE TIE,102mm L | KOBWire Ties -- 368mm Long |
| 12. | YT42H01278P1 | [1] | BRACKET | |
