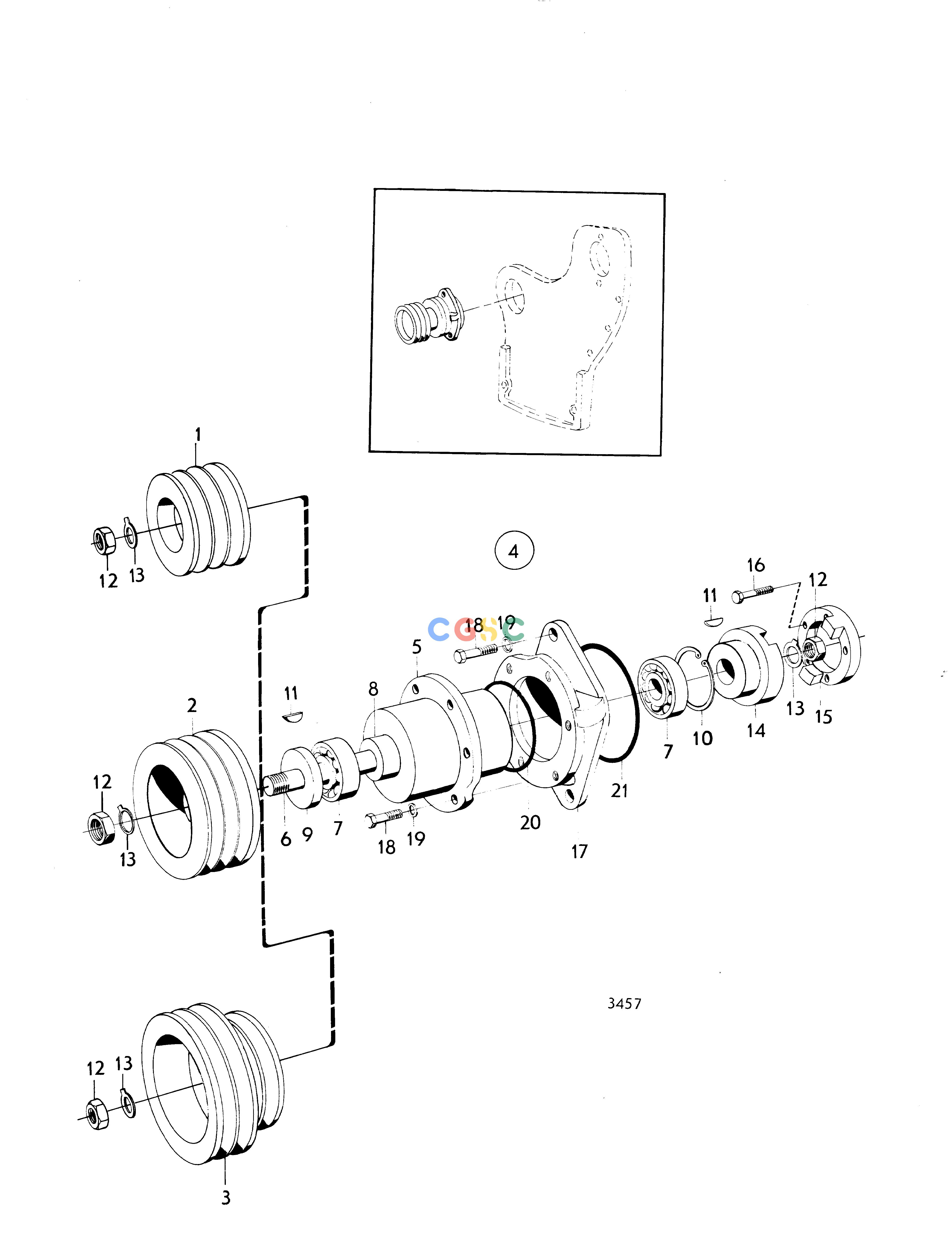

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCMiscellaneous EquipmentExtra Drive Take offEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
666 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
821065
|
[1] |
Pulley, 3 grooves
|
|
| 2. |
821064
|
[1] |
Pulley, 3 grooves
|
D=140mm
|
| 3. |
823116
|
[1] |
Pulley, 2+2 grooves
|
D=190mm, D=150mm
|
| 4. |
821066
|
[1] |
Drive outlet
|
|
| 5. |
|
|
|
|
| 6. |
821068
|
[1] |
Shaft
|
|
| 7. |
11013
|
[2] |
Ball bearing
|
|
| 8. |
821072
|
[1] |
Spacer sleeve
|
|
| 9. |
958993
|
[1] |
Sealing ring
|
|
| 10. |
914533
|
[1] |
Snap ring
|
|
| 11. |
942406
|
[2] |
Woodruff key
|
|
| 12. |
955860
|
[2] |
Hexagon nut
|
|
| 13. |
942735
|
[2] |
Tab washer
|
|
| 14. |
820960
|
[1] |
Dog clutch
|
|
| 15. |
821071
|
[1] |
Companion flange
|
|
| 16. |
955513
|
[4] |
Hexagon screw
|
|
| 17. |
820697
|
[1] |
Spacer
|
|
| 18. |
940115
|
[5] |
Hexagon screw
|
|
| 19. |
942336
|
[5] |
Spring washer
|
|
| 20. |
925095
|
[1] |
O-ring
|
|
| 21. |
420213
|
[1] |
Seal
|
|
