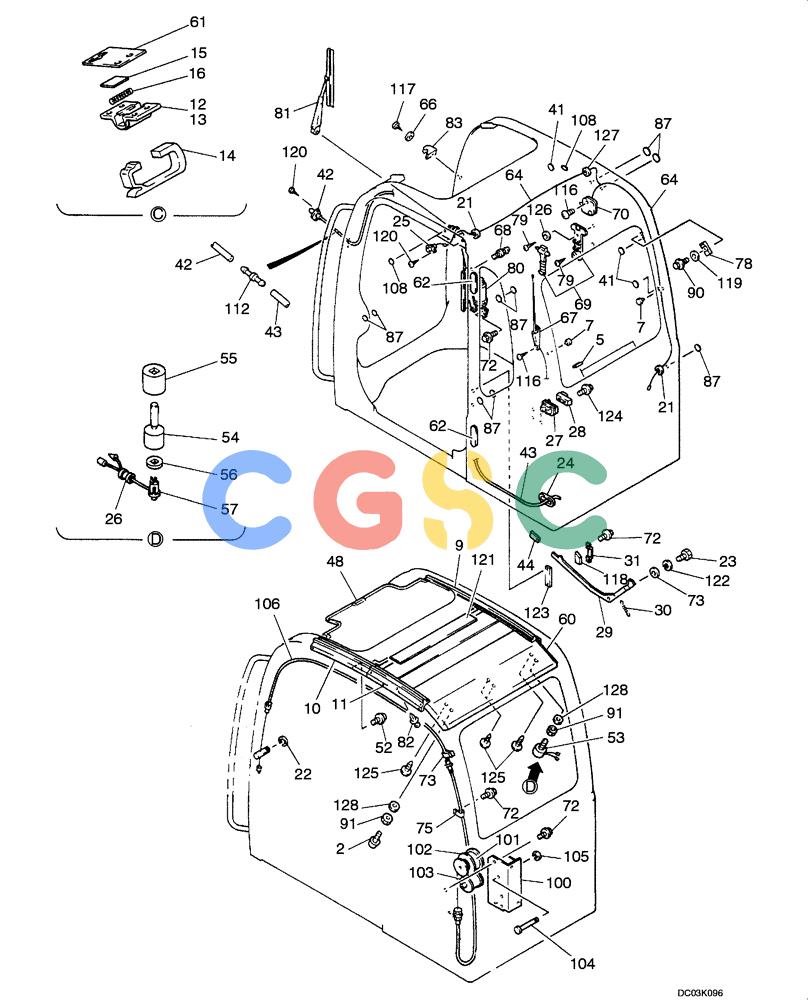

纽荷兰零件查询(E160) - CRAWLER EXCAVATOR (N.A.) (1/06-) (09 -14[00]) - CAB ASSEMBLY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
302 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN02C00103F4 | [1] | CAB | KOBCAB ASSY. |
| 2. | YT02C01066P1 | [1] | STOP | KOB |
| 5. | YT02C01081D1 | [4] | SEAL | KOB |
| 7. | YT02C01070P1 | [2] | RUBBER SLEEVE | KOB |
| 9. | YN02C01953P1 | [1] | RAIL ASSY. | KOB Superseded by part number: YN02C01953P2 |
| 10. | YN02C01954P1 | [1] | RAIL ASSY. | KOB |
| 11. | YN02C01955P1 | [1] | RAIL ASSY. | KOB |
| 12. | YT02C01232F1 | [2] | LOCK | KOBIncl. 13 - 16 |
| 13. | YT02C01232S001 | [1] | BASE | KOB |
| 14. | YT02C01232S002 | [1] | HANDLE | KOB |
| 15. | YT02C01232S003 | [1] | COVER | KOB |
| 16. | YT02C01232S004 | [1] | SPRING | KOB |
| 21. | 2420R372D14 | [2] | GROMMET | KOB |
| 23. | ZS18C08030 | [1] | SCREW,Hex, M8 x 30mm | KOB |
| 24. | YT02C01235P1 | [1] | GROMMET | KOB |
| 25. | YT50S00004P1 | [1] | SWITCH | KOB |
| 26. | YN03M01159P1 | [1] | GROMMET | KOB |
| 27. | YT02C01109F1 | [1] | CATCH | KOB Superseded by part number: YN02C04422F1 |
| 28. | YT02C01124P1 | [1] | COVER | KOB |
| 29. | YN02C02117P2 | [1] | LEVER | KOBLEVER |
| 30. | YT02C01207P1 | [1] | SPRING | KOB |
| 31. | YT02C01276P1 | [1] | COVER | KOB |
| 41. | YT02C01261D1 | [5] | PLATE | KOB |
| 42. | YT54C00001P1 | [1] | WINDSHIELD WASHER | KOBWINDSHIELD WASHER |
| 43. | YT02C01126D1 | [1] | TUBE | KOB |
| 44. | YT02C01274P1 | [1] | COVER | KOB |
| 48. | YN55C00005P1 | [1] | SUN VISOR | KOB |
| 52. | YN02C01875D1 | [8] | SCREW | KOB |
| 53. | YT02C01330F2 | [1] | STOP | KOBIncl. 54 - 57 |
| 54. | YT02C01304P1 | [1] | STOP | KOB Superseded by part number: YN02C02963P1 |
| 55. | YT02C01306P1 | [1] | RUBBER | KOB |
| 56. | YT02C01307P1 | [1] | PLATE | KOB |
| 57. | YN50E00006P1 | [1] | SWITCH ASSY | KOB |
| 60. | YN02C02019P1 | [1] | PAD | KOB |
| 61. | YN02C01888P1 | [2] | PACKING | KOB |
| 62. | YT02C01129P1 | [2] | COVER | KOB |
| 64. | YN02C01761P1 | [1] | HARNESS | KOB |
| 66. | 2418Z725D3 | [5] | WASHER | KOB |
| 67. | YT54S00018F1 | [1] | ANTENNA | KOB |
| 68. | YT02C01134P1 | [1] | HOOK | KOB |
| 69. | YN01T01012F1 | [1] | HAMMER | KOB |
| 70. | YT80S00001P1 | [1] | LIGHT | KOB Superseded by part number: 2456Z322F1 |
| 72. | ZM66C06016 | [18] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| 73. | 2418T12753 | [1] | WASHER | KOB |
| 75. | YT02C01161P1 | [2] | CLAMP | KOB |
| 78. | YT02C01140P1 | [2] | STOP | KOB |
| 79. | ZS32T40020 | [2] | SCREW | KOB |
| 80. | YN53C00011P1 | [1] | WIPER | KOB Superseded by part number: YN53C00012F2 |
| 81. | YN53C01003F1 | [1] | WIPER ARM | KOB-- is a complete arm & wiper assembly |
| 81-1. | YN53C01003S001 | [1] | WIPER ARM | KOB-- is just the wiper arm, 505.6mm Long (19-29/32 in), Not Shown |
| 81-2. | YN53C01003S002 | [1] | WIPER BLADE | KOB-- is just the wiper blade, 600mm Long (23-5/8 in), Not Shown Superseded by part number: 47669054 |
| 82. | YN02C01820P1 | [6] | CLIP | KOB |
| 83. | YN02C01294P1 | [1] | STOP | KOB |
| 87. | YT02C01261D3 | [9] | PLATE | KOB |
| 90. | ZM46C06025 | [4] | BOLT | KOB |
| 91. | ZN18F10008 | [4] | NUT | KOB |
| . . | YN02C02353F1 | [1] | ELECTRIC CABLE | KOBINCL 100-106 |
| 100. | YN02C02353S001 | [1] | BRACKET | |
| 101. | YN02C02353S002 | [1] | SHAFT | |
| 102. | YN02C02353S003 | [1] | SHAFT | KOBSHAFT |
| 103. | YN02C02353S004 | [1] | SHAFT | KOBSHAFT |
| 104. | YN02C02353S005 | [2] | SHAFT | |
| 105. | ZR36X00600 | [2] | SNAP RING | KOB |
| 106. | YN02C02353S008 | [1] | WIRE HARNESS | KOBCABLE |
| 108. | YT02C01261D2 | [3] | PLATE | KOB |
| 112. | PY21V01001P1 | [1] | CHECK VALVE | KOB |
| 116. | ZS31C05010 | [4] | BOLT,Phillips Drive, Pan HD, M5 x 10mm | KOB |
| 117. | 2420Z1227D4 | [5] | SCREW | KOB |
| 118. | YT02C01275P1 | [1] | LABEL | KOB |
| 119. | 2420T4505 | [6] | WASHER,7mm ID x 16mm OD x 1mm Thk | KOB |
| 120. | ZS32T40012 | [4] | SCREW | KOB |
| 121. | YN02C01962P1 | [1] | FOAM INSULATION | KOB |
| 122. | ZW26X08000 | [1] | LOCK WASHER | KOB Superseded by part number: 83990583 |
| 123. | YT02C01280P1 | [1] | SPACER | KOB |
| 124. | ZM22C08025 | [4] | BOLT | KOB |
| 125. | YN02001880P1 | [4] | CLIP | |
| 127. | 2420R372D8 | [1] | GROMMET | KOB |
| 128. | YT02C01268P1 | [2] | WASHER | KOB |
