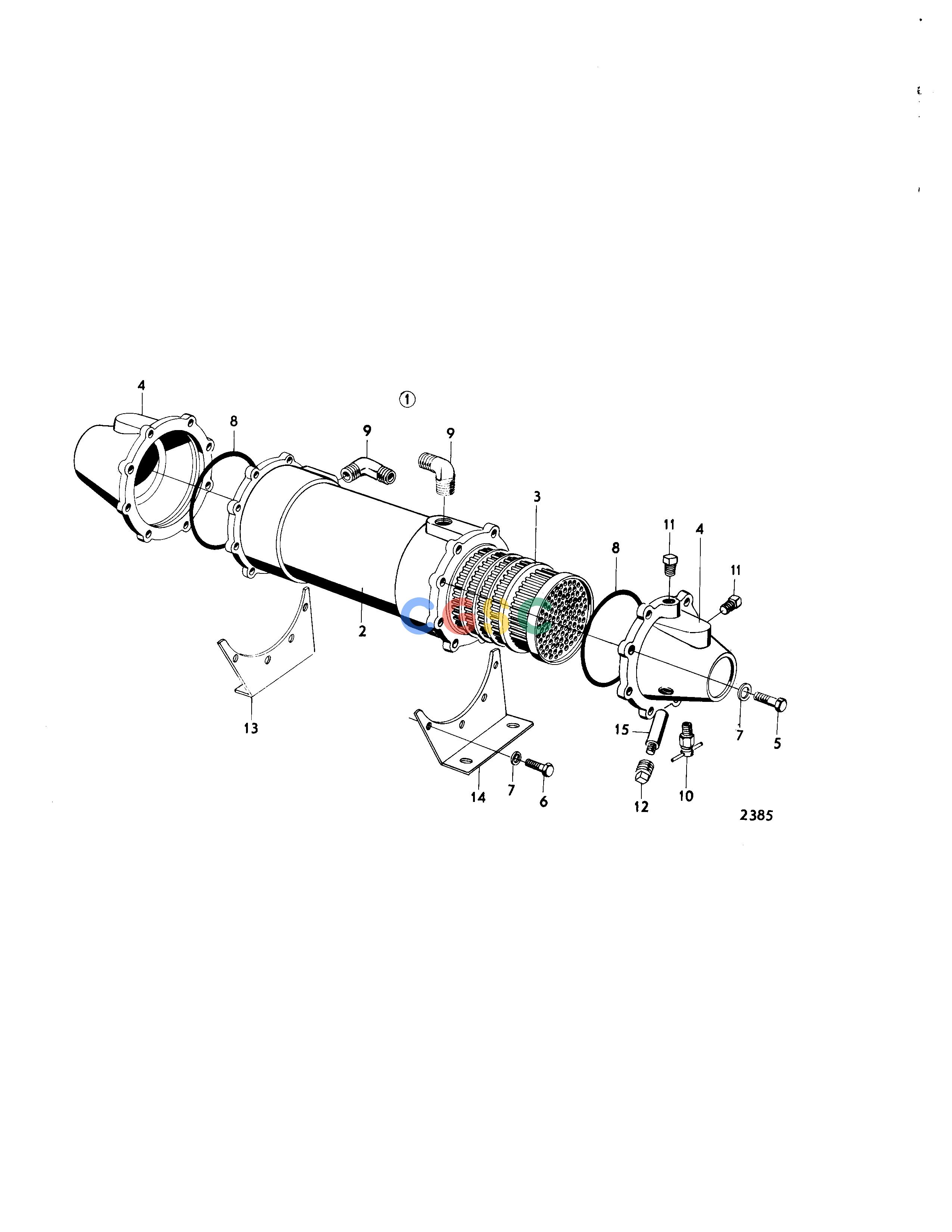

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCTransmissionsOil Cooler: 837412EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
278 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
837412
|
[1] |
Oil cooler
|
|
| 2. |
813883
|
[1] |
Housing
|
|
| 3. |
813885
|
[1] |
Insert
|
|
| 4. |
836888
|
[2] |
End cover
|
|
| 5. |
955514
|
[8] |
Hexagon screw
|
|
| 6. |
940117
|
[8] |
Hexagon screw
|
|
| 7. |
941906
|
[16] |
Spring washer
|
|
| 8. |
925027
|
[2] |
O-ring
|
|
| 9. |
814925
|
[2] |
Elbow union
|
|
| 12. |
800475
|
[2] |
Plug
|
|
| 13. |
813878
|
[1] |
Base
|
|
| 14. |
813879
|
[1] |
Base
|
|
| 15. |
800476
|
[2] |
Zinc electrode
|
|
