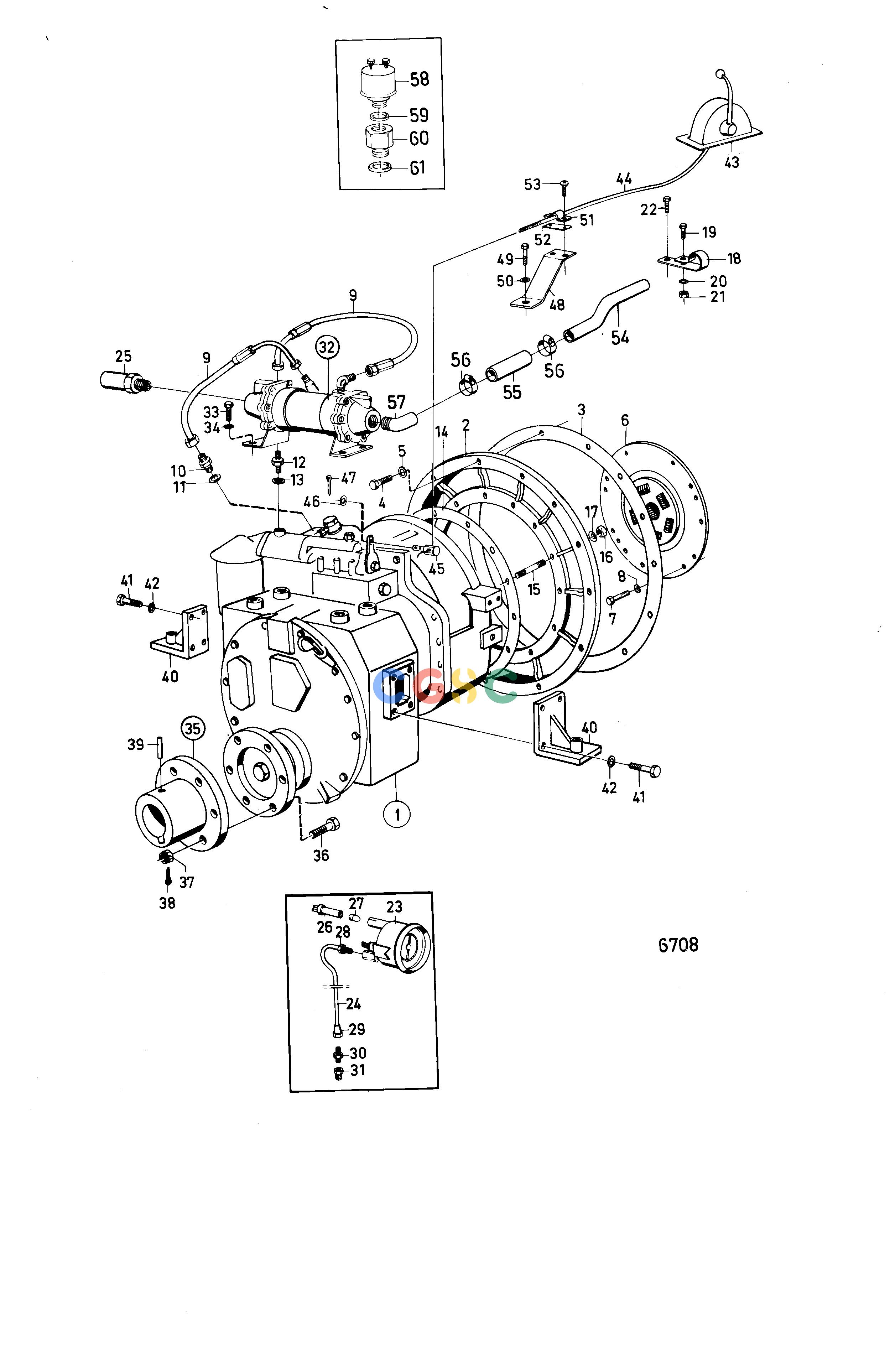

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCTransmissionsReverse Gear SCG MRF 350 with Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
932 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
837450
|
[1] |
Extension part
|
|
| 3. |
800314
|
[1] |
Gasket
|
|
| 4. |
940160
|
[12] |
Hexagon screw
|
|
| 5. |
941909
|
[12] |
Spring washer
|
|
| 6. |
837451
|
[1] |
Absorber
|
|
| 7. |
955559
|
[8] |
Hexagon screw
|
|
| 8. |
940280
|
[8] |
Spring washer
|
|
| 9. |
820968
|
[2] |
Hose
|
|
| 10. |
942418
|
[1] |
Nipple
|
|
| 11. |
957184
|
[1] |
Gasket
|
|
| 12. |
942363
|
[1] |
Fitting
|
|
| 13. |
18821
|
[1] |
Gasket
|
|
| 14. |
815247
|
[1] |
Gasket
|
|
| 15. |
953261
|
[12] |
Stud
|
|
| 16. |
955827
|
[12] |
Hexagon nut
|
|
| 17. |
942336
|
[12] |
Spring washer
|
|
| 18. |
824419
|
[1] |
Clamp
|
|
| 19. |
955524
|
[1] |
Hexagon screw
|
|
| 20. |
941907
|
[1] |
Spring washer
|
|
| 21. |
955826
|
[1] |
Hexagon nut
|
|
| 22. |
955588
|
[1] |
Hexagon screw
|
|
| 23. |
827236
|
[1] |
Oil manometer
|
|
| 24. |
954303
|
[1] |
Tube
|
L=5000mm D=3/16''
|
| 25. |
942315
|
[1] |
Hose nipple
|
|
| 26. |
808175
|
[1] |
Bulb socket
|
|
| 27. |
182059
|
[1] |
Bulb
|
24V
|
| 28. |
87698
|
[1] |
Fitting screw
|
|
| 29. |
954320
|
[1] |
Fitting nut
|
|
| 30. |
954334
|
[1] |
Nipple
|
|
| 31. |
809139
|
[1] |
Nipple
|
|
| 32. |
821082
|
[1] |
Oil cooler
|
|
| 33. |
955534
|
[4] |
Hexagon screw
|
|
| 34. |
942336
|
[4] |
Spring washer
|
|
| 35. |
820933
|
[1] |
Clutch flange
|
|
| 36. |
955696
|
[6] |
Hexagon screw
|
|
| 37. |
955883
|
[6] |
Castle nut
|
|
| 38. |
907834
|
[6] |
Split pin
|
|
| 39. |
17186
|
[1] |
Taper pin
|
|
| 40. |
823218
|
[2] |
Bracket
|
|
| 41. |
955560
|
[8] |
Hexagon screw
|
|
| 42. |
940280
|
[8] |
Spring washer
|
|
| 43. |
|
|
|
See group 9
|
| 44. |
|
|
|
See group 9
|
| 45. |
814082
|
[1] |
Cube
|
|
| 46. |
940191
|
[1] |
Washer
|
|
| 47. |
17276
|
[1] |
Split pin
|
|
| 48. |
837405
|
[1] |
Bracket
|
|
| 49. |
940133
|
[1] |
Hexagon screw
|
|
| 50. |
942336
|
[1] |
Spring washer
|
|
| 51. |
21471054
|
[1] |
Bracket
|
|
| 52. |
819068
|
[1] |
Washer
|
|
| 53. |
950021
|
[2] |
Cross recessed screw
|
|
| 54. |
842066
|
[1] |
Coolant pipe
|
|
| 55. |
949478
|
[1] |
Rubber hose
|
L=110mm (952976)
|
| 56. |
943478
|
[8] |
Hose clamp
|
(951794)
|
| 57. |
898683
|
[1] |
Hose attachment
|
|
| 58. |
837781
|
[1] |
Oil pressure sensor
|
See group 3
|
| 59. |
957181
|
[1] |
Gasket
|
See group 3
|
| 60. |
842714
|
[1] |
Nipple
|
|
| 61. |
957180
|
[1] |
Gasket
|
|
