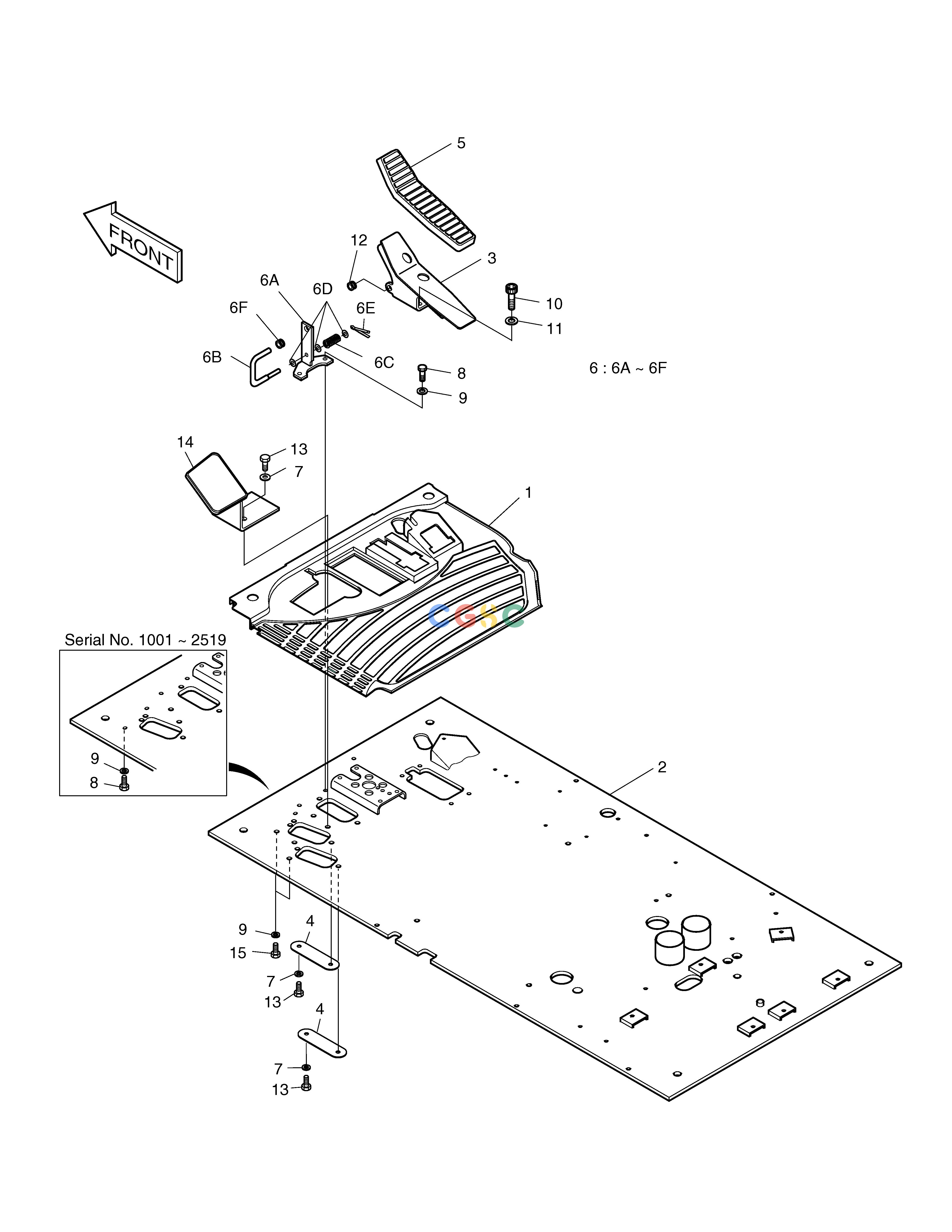

斗山零件查询FLOOR ASS'Y-ROTATING & TILTING SOLAR 160W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
919 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
621-02186
|
[-] |
FLOOR ASS'Y
|
|
| -. |
621-02186A
|
[-] |
FLOOR ASS'Y
|
|
| -. |
621-02186B
|
[-] |
FLOOR ASS'Y
|
|
| 1. |
161-00493
|
[1] |
MAT;FLOOR
|
161-00493A
|
| 1. |
161-00493A
|
[1] |
MAT;FLOOR
|
|
| 10. |
S2211866
|
[2] |
BOLT
|
|
| 11. |
S5110601
|
[2] |
WASHER;SPRING M10
|
|
| 12. |
160-00045
|
[1] |
BUSHING;RUBBER
|
|
| 13. |
S0511653
|
[4] |
BOLT
|
|
| 13. |
S0511653
|
[6] |
BOLT
|
|
| 14. |
195-02333
|
[1] |
REST;FOOT
|
|
| 15. |
2120-2166D12
|
[4] |
BOLT
|
|
| 2. |
621-02175
|
[1] |
PLATE;FLOOR
|
|
| 2. |
K1000224
|
[1] |
PLATE;FLOOR
|
|
| 2. |
K1000224A
|
[1] |
PLATE;FLOOR
|
K1000224B
|
| 2. |
K1000224B
|
[1] |
PLATE;FLOOR
|
|
| 3. |
195-01735
|
[1] |
BRACKET;PEDAL(L.H)
|
|
| 4. |
621-01507
|
[1] |
PLATE
|
|
| 4. |
621-01507
|
[2] |
PLATE
|
|
| 5. |
161-00386
|
[1] |
RUBBER;PEDAL
|
|
| 6. |
195-01939
|
[1] |
BRACKET
|
|
| 6A. |
195-01937
|
[1] |
BRACKET
|
|
| 6B. |
133-00167
|
[1] |
BAR
|
|
| 6C. |
129-00144
|
[1] |
SPRING
|
|
| 6D. |
2114-1898D14
|
[3] |
WASHER
|
|
| 6E. |
S5735351
|
[1] |
PIN;SPLIT
|
|
| 6F. |
160-00045
|
[1] |
BUSHING;RUBBER
|
|
| 7. |
2114-1898D1
|
[4] |
WASHER
|
|
| 7. |
2114-1898D1
|
[6] |
WASHER
|
|
| 8. |
2120-2166D5
|
[4] |
BOLT
|
|
| 8. |
2120-2166D5
|
[2] |
BOLT
|
|
| 9. |
2114-1898D14
|
[4] |
WASHER
|
|
| 9. |
2114-1898D14
|
[6] |
WASHER
|
|
