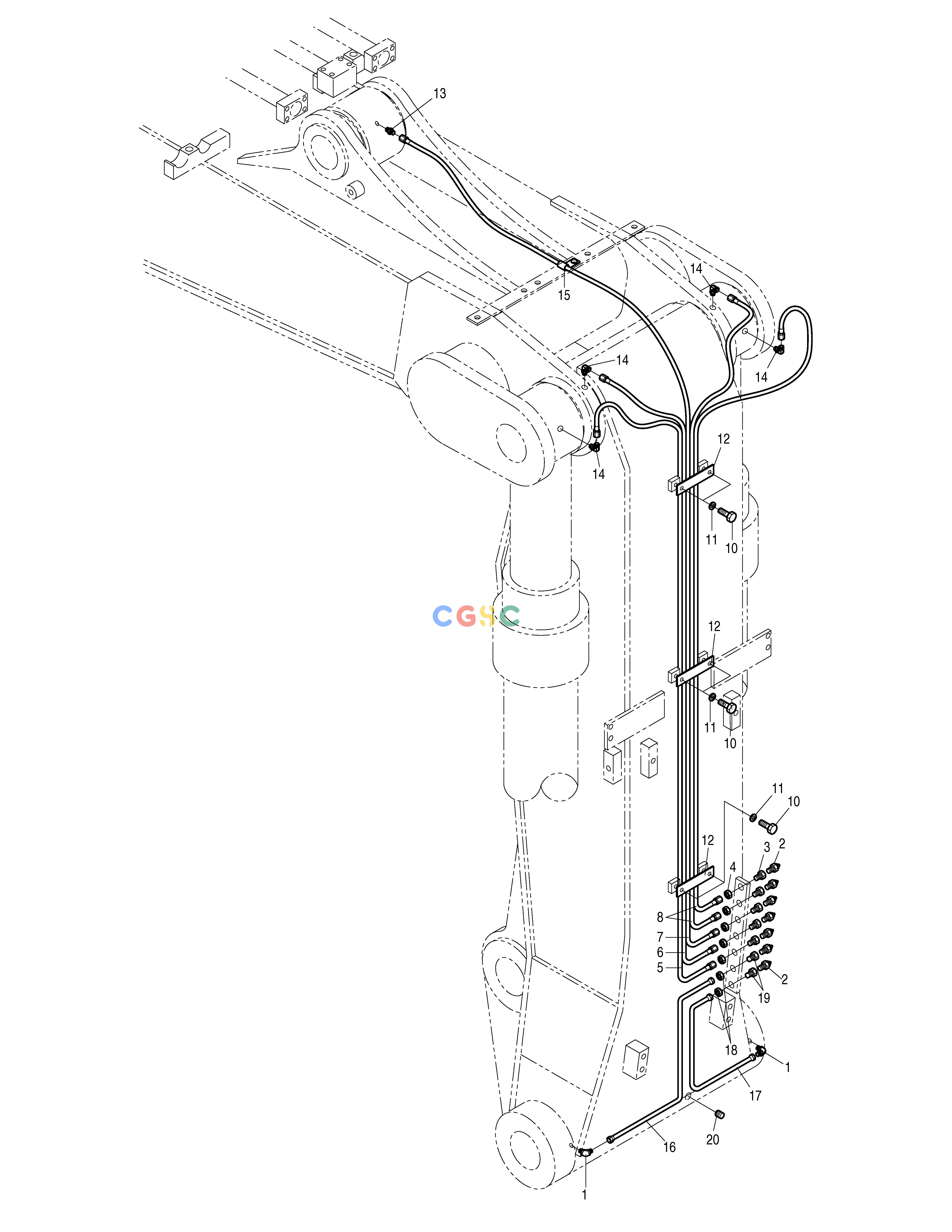

斗山零件查询FRONT LUBRICATION PIPING-ARTI.BOOM SOLAR 160W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
330 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-00733
|
[-] |
LUBRICATION PPING-ARTI.
|
|
| 1. |
2181-1925
|
[2] |
ELBOW
|
|
| 10. |
S0511553
|
[6] |
BOLT M10X1.5X14
|
|
| 11. |
S5102603
|
[6] |
. WASHER
|
|
| 12. |
124-00030
|
[3] |
CLAMP;PIPE
|
|
| 13. |
2181-1110D30
|
[3] |
ADAPTER
|
|
| 14. |
2181-1186D12
|
[2] |
ELBOW
|
|
| 15. |
2124-1353D2
|
[1] |
CLIP
|
|
| 16. |
140-00902A
|
[1] |
PIPE;L.H(FRONT LUB.)
|
|
| 17. |
140-00903A
|
[1] |
PIPE;R.H(FRONT LUB.)
|
|
| 18. |
S4032833
|
[2] |
NUT
|
|
| 19. |
181-00525
|
[2] |
REDUCER
|
|
| 2. |
S6710041
|
[7] |
NIPPLE,GREASE
|
|
| 20. |
S3524403
|
[1] |
PLUG
|
|
| 3. |
181-00103
|
[5] |
REDUCER
|
|
| 4. |
121-00006
|
[5] |
NUT
|
|
| 5. |
DS2054241
|
[1] |
HOSE PF1/4-1780L
|
|
| 6. |
2184-1060D31
|
[1] |
HOSE PF1/4-1700L
|
|
| 7. |
2184-1060D54
|
[1] |
HOSE PF1/4-2900L
|
|
| 8. |
2184-1060D107
|
[2] |
HOSE PF1/4-1600L
|
|
