斗山零件查询MAIN PIPING-ONE & TWO WAY SOLAR 160W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
966 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

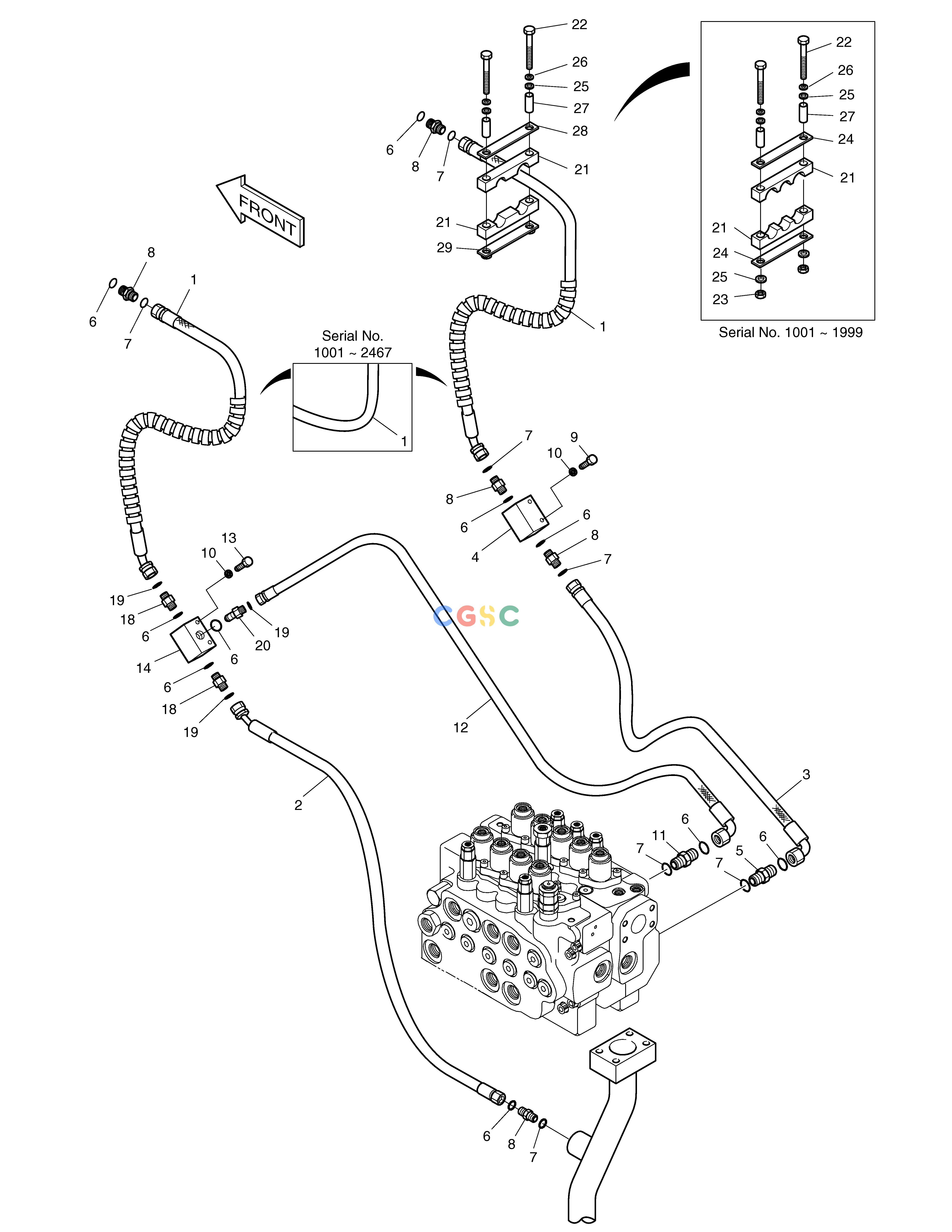

2400-2125A
|
[-] |
MAIN PIPING-BREAKER(ONE & TWO WAY)
|
|
| 1. |
DS2012157
|
[2] |
HOSE 3/4-1700L
|
|
| 1. |
DS2012210
|
[2] |
HOSE 3/4-1750L
|
|
| 10. |
S5102603
|
[4] |
. WASHER
|
|
| 11. |
2181-2627D3
|
[1] |
ADAPTER
|
|
| 12. |
2184-1197D73
|
[1] |
HOSE PF3/4-960L
|
|
| 13. |
S0512053
|
[2] |
BOLT
|
|
| 14. |
2420-9635B
|
[1] |
VALVE;SWITCH
|
|
| 18. |
2181-2627D15
|
[2] |
ADAPTER
|
|
| 19. |
S8000291
|
[3] |
O-RING
|
|
| 2. |
DS2012136
|
[1] |
HOSE
|
|
| 20. |
2181-2816D6
|
[1] |
ELBOW
|
|
| 21. |
124-00033
|
[2] |
CLAMP;RUBBER
|
|
| 21. |
124-00316
|
[2] |
CLAMP;HOSE
|
|
| 21. |
K1000013
|
[2] |
CLAMP;HOSE
|
|
| 22. |
S0559253
|
[2] |
BOLT M10X1.5X85
|
|
| 22. |
S0559153
|
[2] |
BOLT
|
|
| 23. |
S4012633
|
[2] |
NUT
|
|
| 24. |
621-00504
|
[2] |
PLATE
|
|
| 25. |
S5010613
|
[4] |
WASHER
|
|
| 25. |
S5010613
|
[4] |
WASHER
|
|
| 26. |
S5102603
|
[2] |
. WASHER
|
|
| 27. |
2182-1018D47
|
[2] |
PIPE
|
|
| 28. |
621-03028
|
[1] |
PLATE
|
|
| 29. |
621-03029
|
[1] |
PLATE
|
|
| 3. |
DS2013386
|
[1] |
HOSE 3/4-650L
|
|
| 4. |
2423-1568
|
[1] |
BLOCK
|
|
| 5. |
2181-2627D10
|
[1] |
ADAPTER
|
|
| 6. |
S8030121
|
[10] |
O-RING
|
|
| 7. |
S8000231
|
[7] |
O-RING
|
|
| 8. |
2181-2627D1
|
[5] |
ADAPTER
|
|
| 9. |
S0558853
|
[2] |
BOLT M10X1.5X65
|
|
