斗山零件查询MAIN PIPING-ROTATING & TILTING SOLAR 160W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
692 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-00675A
|
[-] |

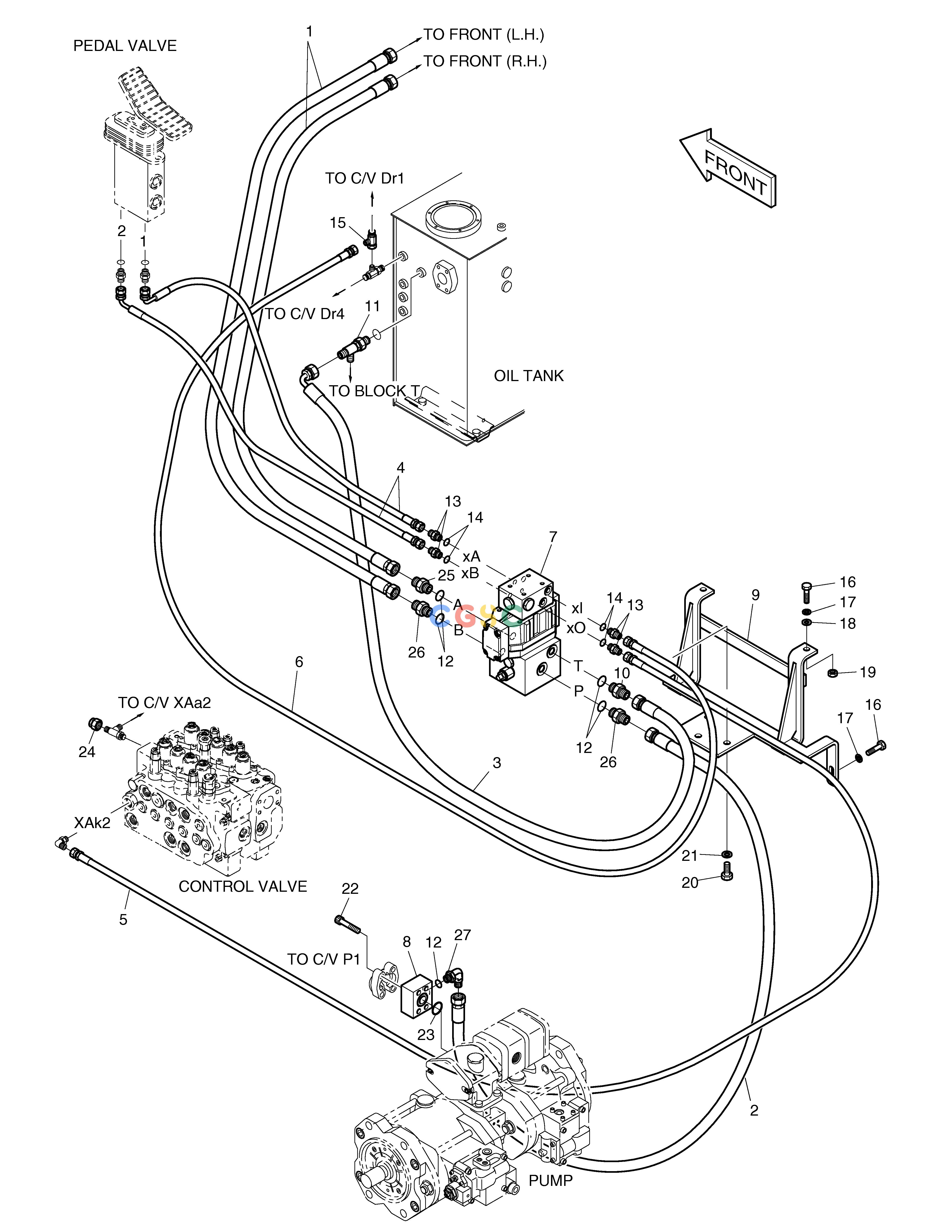

MAIN PIPING-ROTATION & TILTING
|
|
| 1. |
DS2011304
|
[2] |
HOSE;ORS1/2-2700L
|
|
| 10. |
2181-1126D6
|
[1] |
ADAPTER
|
|
| 11. |
2181-1951D5
|
[1] |
TEE
|
|
| 12. |
S8000181
|
[5] |
O-RING
|
|
| 13. |
2181-1126D14
|
[4] |
ADAPTER
|
|
| 14. |
S8000111
|
[4] |
O-RING
|
|
| 15. |
181-00673D1
|
[1] |
TEE;UNION
|
|
| 16. |
S0512453
|
[3] |
BOLT M10X1.5X40
|
|
| 17. |
S5100603
|
[3] |
WASHER
|
|
| 18. |
S5010613
|
[2] |
WASHER
|
|
| 19. |
S4012633
|
[2] |
NUT
|
|
| 2. |
DS2011291
|
[1] |
HOSE PF1/2-1200L
|
|
| 20. |
S0515256
|
[3] |
BOLT M12X1.75X30
|
|
| 21. |
S5100703
|
[3] |
WASHER;SPRING
|
|
| 22. |
S2213066
|
[4] |
BOLT;SOCKET M10X1.5X70
|
|
| 23. |
2180-1026D2
|
[1] |
O-RING
|
|
| 24. |
2181-2820D1
|
[1] |
PLUG
|
|
| 25. |
2181-4133D3
|
[1] |
ADAPTER
|
|
| 26. |
2181-4133D37
|
[2] |
ADAPTER
|
|
| 27. |
2181-2815D3
|
[1] |
ELBOW
|
|
| 3. |
DS2055663
|
[1] |
HOSE PF1/2-2200L
|
|
| 4. |
2184-1046D186
|
[2] |
HOSE PF1/4-3900L
|
|
| 5. |
2184-1046D180
|
[1] |
HOSE PF1/4-2700L
|
|
| 6. |
2184-1045D152
|
[1] |
HOSE PF1/4-2000L
|
|
| 7. |
420-00322A
|
[1] |
OPTION VALVE
|
420-00322C
|
| 7. |
420-00322C
|
[1] |
OPTION VALVE
|
|
| 8. |
423-00122
|
[1] |
BLOCK
|
|
| 9. |
195-01835A
|
[1] |
BRACKET
|
|
