神钢零件查询(F4HFE613T A004) - ENGINE 504384900 - 84232924 (3/11-) (10.105.01) - PISTON - ENGINE (5801371818 - 504336352) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
957 次

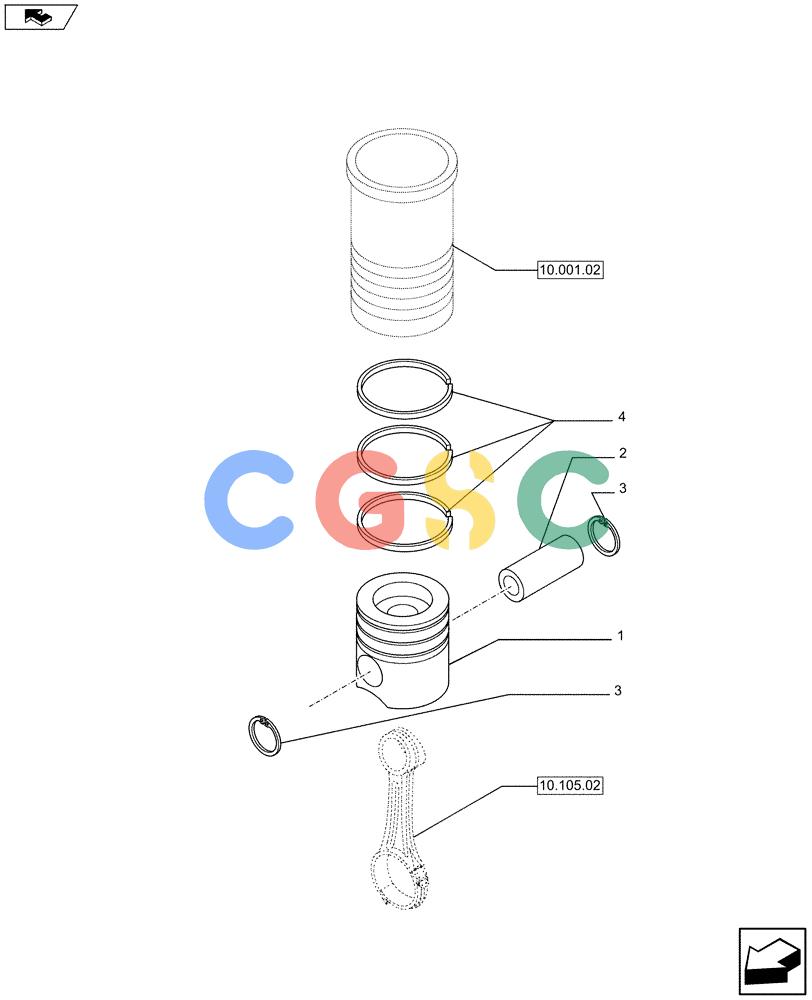

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 84364065 | [6] | PISTON | TORSTD. Superseded by part number: 8097879 |
| 1. | 84364066 | [6] | PISTON | TOR(+0,4) Superseded by part number: |
| 1. | 84364067 | [6] | PISTON | TOR(+0,8) Superseded by part number: |
| 2. | 4892712 | [6] | PISTON PIN,38mm OD x 82mm L | TOR |
| 3. | 2854030 | [12] | SNAP RING,M40.8 OD | TOR Superseded by part number: 504093651 |
| 4. | 87582179 | [6] | PISTON RINGS KIT | TORSTD. Superseded by part number: 8094845 |
| 4. | 87582180 | [6] | PISTON RINGS KIT | TOR(+0,4) Superseded by part number: 87316944 |
| 4. | 87582181 | [6] | PISTON RINGS KIT | TOR(+0,8) |
