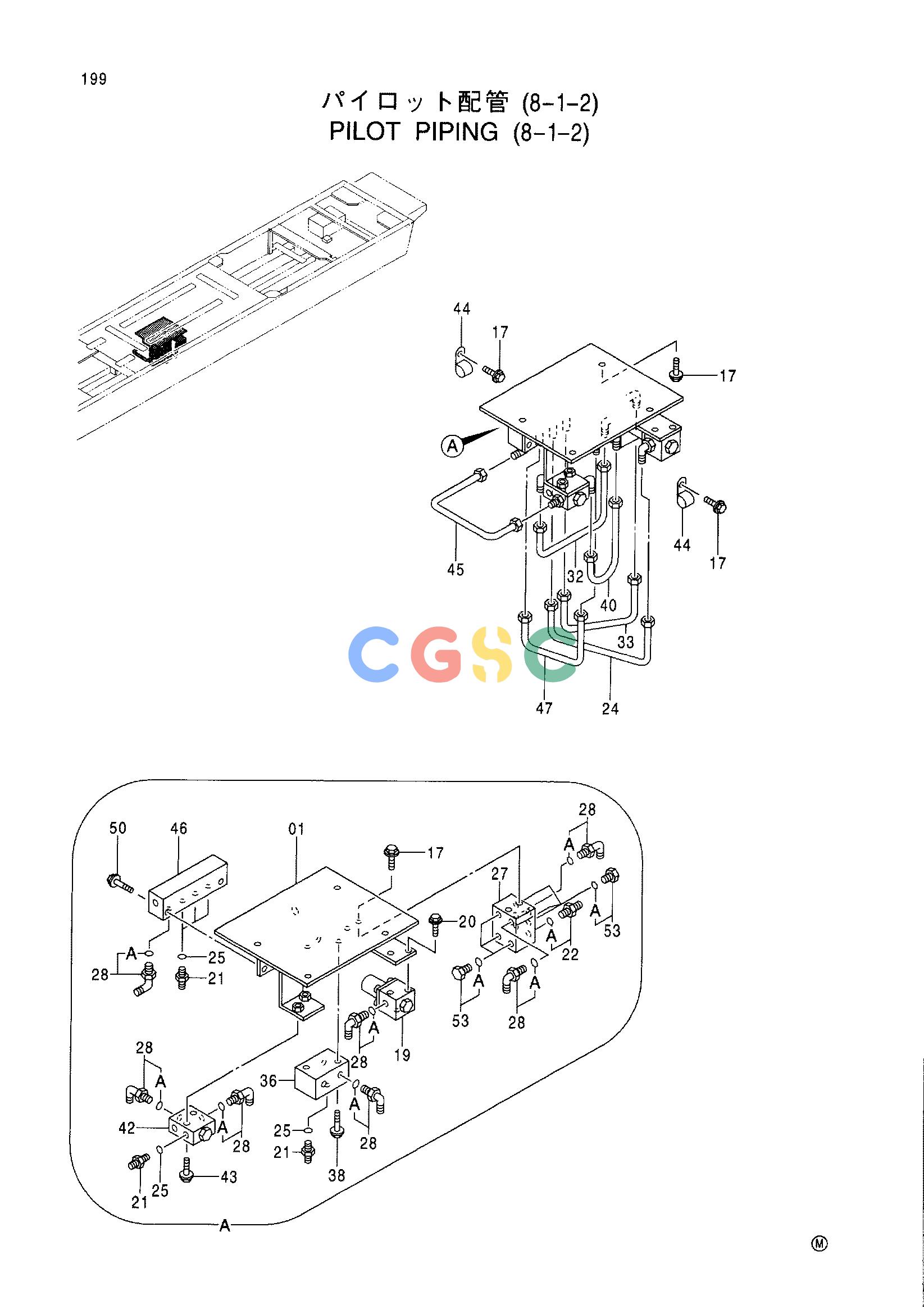

日立零件查询（CX1000）PILOT PIPING (8-1-2) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
160 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 7034841 | [1] | BRACKET | |
| 17. | J011020 | [8] | BOLT;SEMS | |
| 19. | 4302289 | [1] | VALVE;SOLENOID | |
| 20. | J010620 | [2] | BOLT;SEMS | |
| 21. | 4317623 | [5] | FITTING;PIPE | |
| 22. | 4200467 | [1] | ADAPTER;S | |
| 22A. | 957366 | [1] | O-RING | |
| 24. | 4402949 | [1] | PIPE | |
| 25. | 964255 | [5] | O-RING | |
| 27. | 4314477 | [1] | VALVE;SHUTTLE | |
| 28. | 4317622 | [7] | FITTING;PIPE | |
| 28A. | 957366 | [1] | O-RING | |
| 32. | 4402945 | [1] | PIPE | |
| 33. | 4402950 | [1] | PIPE | |
| 36. | 4207238 | [1] | VALVE | |
| 38. | J011070 | [2] | BOLT;SEMS | |
| 40. | 4402946 | [1] | PIPE | |
| 42. | 4368190 | [1] | VALVE;PILOT | |
| 43. | J011055 | [2] | BOLT;SEMS | |
| 44. | 4259817 | [2] | CLIP | |
| 45. | 4402932 | [1] | PIPE | |
| 46. | 3035921 | [1] | MANIFOLD | |
| 47. | 4402947 | [1] | PIPE | |
| 50. | J011050 | [2] | BOLT;SEMS | |
| 53. | 4093624 | [6] | PLUG | |
| 53A. | 957366 | [1] | O-RING | |
