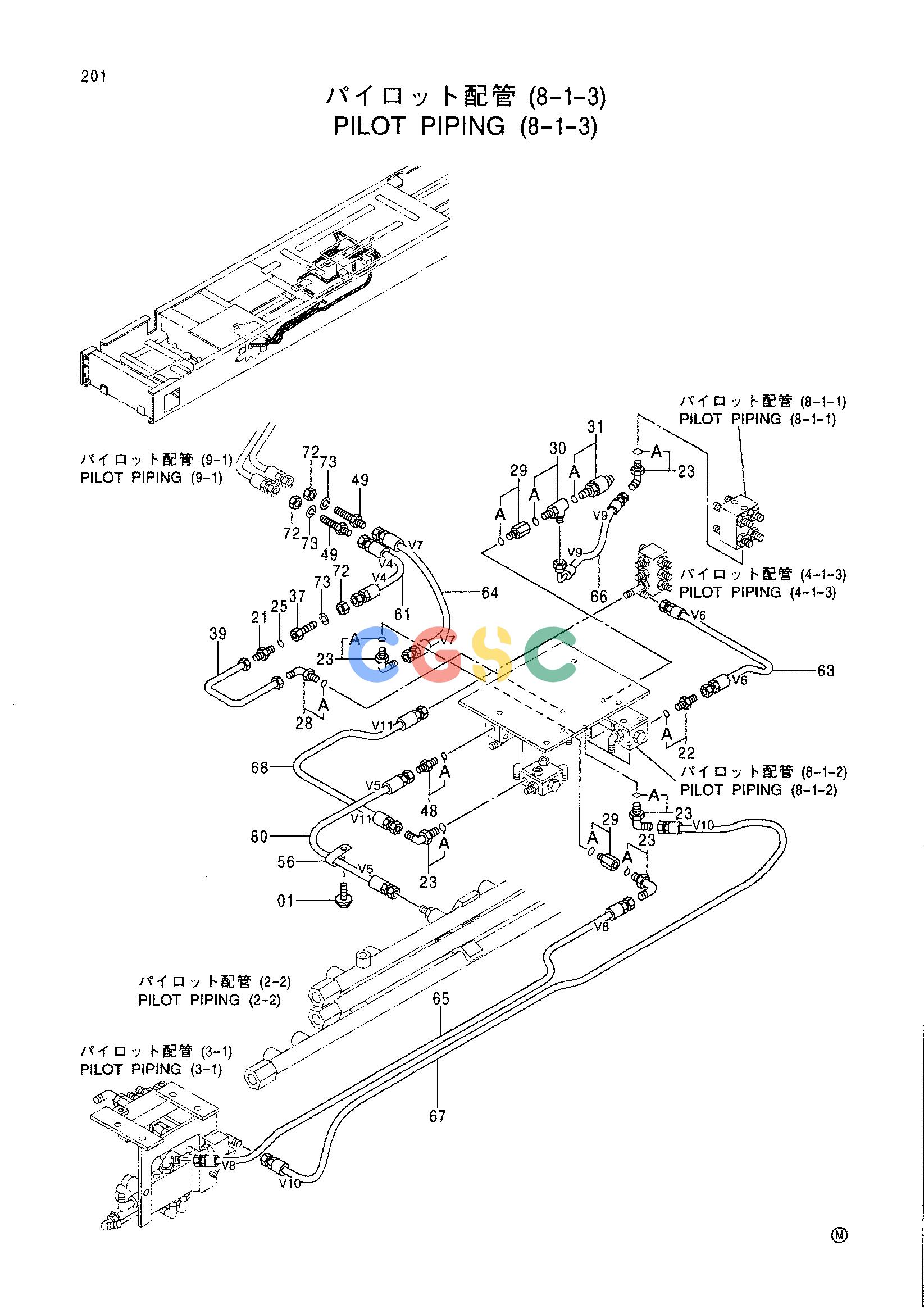

日立零件查询（CX1000）PILOT PIPING (8-1-3) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
704 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | J011020 | [1] | BOLT;SEMS | |
| 21. | 4317623 | [1] | FITTING;PIPE | |
| 22. | 4200467 | [1] | ADAPTER;S | |
| 22A. | 957366 | [1] | O-RING | |
| 23. | 4156434 | [5] | ELBOW;S | |
| 23A. | 957366 | [1] | O-RING | |
| 25. | 964255 | [1] | O-RING | |
| 28. | 4317622 | [1] | FITTING;PIPE | |
| 28A. | 957366 | [1] | O-RING | |
| 29. | 4202564 | [2] | ADAPTER;S | |
| 29A. | 957366 | [1] | O-RING | |
| 30. | 4307265 | [1] | TEE;S | |
| 30A. | 957366 | [1] | O-RING | |
| 31. | 4254563 | [1] | SWITCH;PRESSURE | |
| 31A. | 4113154 | [1] | O-RING | |
| 37. | 4402492 | [1] | REDUCER | |
| 39. | 4402948 | [1] | PIPE | |
| 48. | 4200466 | [1] | ADAPTER;S | |
| 48A. | 4509180 | [1] | O-RING | |
| 49. | 4317426 | [2] | ADAPTER;S | |
| 56. | 4190275 | [1] | CLIP | |
| 61. | 4357773 | [1] | HOSE (V4) | |
| 63. | 4385503 | [1] | HOSE (V6) | |
| 64. | 4403584 | [1] | HOSE (V7) | |
| 65. | 4374926 | [1] | HOSE (V8) | |
| 66. | 4282193 | [1] | HOSE (V9) | |
| 67. | 4357986 | [1] | HOSE (V10) | |
| 68. | 4375295 | [1] | HOSE (V11) | |
| 72. | 4202531 | [3] | NUT | |
| 73. | A590916 | [3] | WASHER;SPRING | |
| 80. | 4375294 | [1] | HOSE (V5) | |
