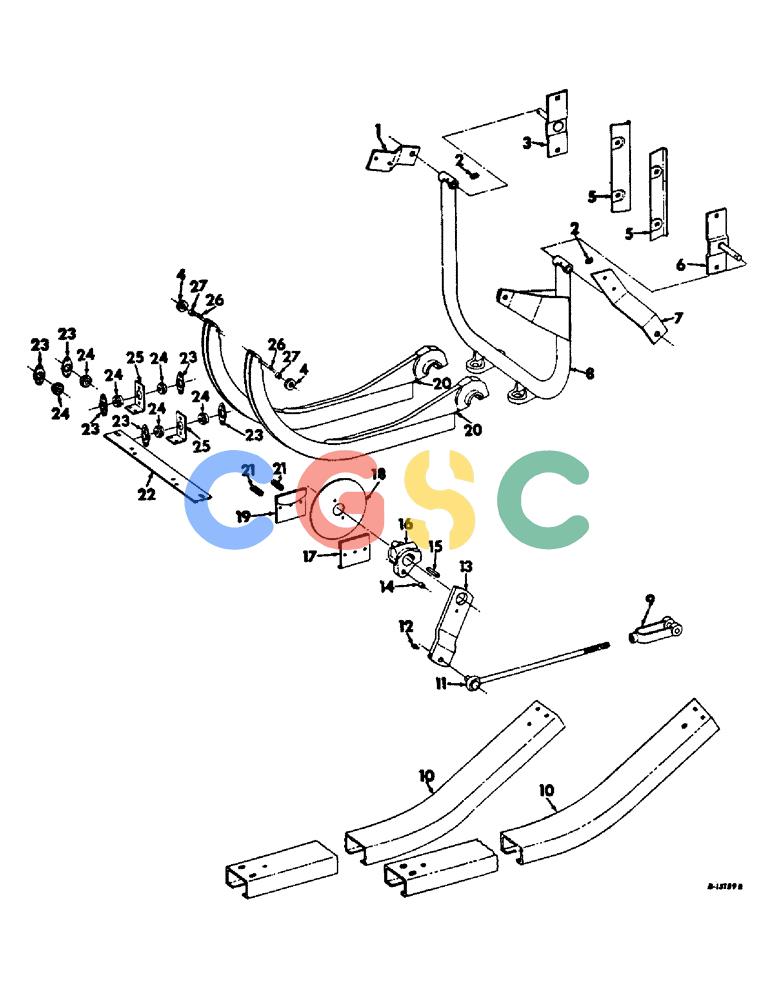

| 1. |
674096R1
|
[1] |
STRAP
|
IH
needle pivot support RH
|
| . . |
18685R1
|
[2] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2
|
IH
BOLT, 3/8 x 1-1/2 znd sq-nk crg Superseded by part number: 280552
|
| . . |
120377
|
[2] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[2] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 2. |
87415
|
[2] |
LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive
|
NH
NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive
|
| 3. |
203056C1
|
[1] |
PIVOT
|
IH
ASSY, needle tie pipe RH
|
| . . |
608701R1
|
[6] |
WASHER
|
IH
21/32 x 1-1/4 x 16 ga C-Z Superseded by part number: 86624155
|
| . . |
18481R1
|
[2] |
COTTER PIN,3/16" x 1"
|
IH
PIN, SPLIT (COTTER), 3/16" x 1" Superseded by part number: 432-1216
|
| 4. |
667412R1
|
[2] |
ROLL
|
IH
SHEAVE, wire needle
|
| 5. |
674099R1
|
[2] |
WEDGE
|
IH
hay
|
| . . |
15016R1
|
[4] |
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/8" , Gr 2
|
IH
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/8", G2 Superseded by part number: 86508777
|
| . . |
664646R1
|
[4] |
LOCK NUT,7/16"-14, GB
|
IH
NUT, 7/16-14 znd hex. lock Superseded by part number: 280980
|
| 6. |
203055C1
|
[1] |
LARGE PIN
|
IH
PIVOT ASSY, needle tie pipe LH
|
| 7. |
674098R1
|
[1] |
STRAP
|
IH
needle pivot support LH
|
| 8. |
674315R2
|
[1] |
PIPE
|
IH
ASSY, needle tie
|
| . . |
615041R1
|
[2] |
WASHER
|
IH
13/32 x 7/8 x 14 ga Superseded by part number: 195-104
|
| . . |
432-1240
|
[1] |
COTTER PIN,3/16" x 2 1/2"
|
CAS
3/16 x 2-1/4 C-Z cot. Superseded by part number: 86523959
|
| 9. |
127786
|
[1] |
ADJUSTABLE CLEVIS,5/16"-18 x 4 15/16"
|
IH
CLEVIS, 5/8-18 x 4-15/16 HV rod end Superseded by part number: 213-2110
|
| . . |
22754R1
|
[1] |
CLEVIS PIN,5/8" x 1.844"
|
IH
PIN, CLEVIS, , Rod end 5/8" x 1.844"
|
| . . |
87395
|
[1] |
COTTER PIN,1/8" OD x 1-1/4" OAL
|
NH
PIN, SPLIT (COTTER), 1/8" x 1-1/4"
|
| 10. |
674197R1
|
[2] |
GUARD
|
IH
auxiliary needle
|
| . . |
18794R1
|
[2] |
BOLT,Hex, 7/16" - 14 x 1", Gr 2
|
IH
7/16 x 1 C-Z hex-hd mach Superseded by part number: 9706729
|
| . . |
271501
|
[2] |
SOCKET
|
NNA
NUT, 7/16-14 C-Z hex.
|
| . . |
120383
|
[2] |
LOCK WASHER,Helical Spring, 7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| . . |
607891R1
|
[2] |
WASHER
|
IH
15/32 x 1 x 16 ga C-Z Superseded by part number: 495-81158
|
| . . |
17351R1
|
[4] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8 x 1 znp sq nk crg Superseded by part number: 88682
|
| 11. |
201698C91
|
[1] |
PITMAN
|
IH
assy
|
| . . |
280374
|
[1] |
NUT,Hex, 5/8" - 11, Gr 5
|
NH
5/8-18 znd hex.
|
| . . |
21796R1
|
[2] |
WASHER
|
IH
21/32 x 1 x 16 ga C-Z Superseded by part number: 495-81176
|
| . . |
137185
|
[1] |
COTTER PIN,1/8" x 1"
|
IH
PIN, SPLIT (COTTER), 1/8" x 1" Superseded by part number: 80755
|
| 12. |
80722
|
[1] |
LUBE NIPPLE,3/16" x .55" lg, Drive
|
WIN
FITTING, 3/16 str drive lub.
|
| 13. |
201704C1
|
[1] |
CRANK
|
IH
needle drive
|
| . . |
181620
|
[1] |
SCREW,Hex, 5/16" - 24 x 2", Gr 5
|
IH
5/16-24 x 2 znd hex-hd cap shear bolt Superseded by part number: 414-532
|
| . . |
120368
|
[1] |
NUT,5/16"-24, G5
|
IH
Superseded by part number: 86629539
|
| . . |
80681
|
[1] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 14. |
662555R1
|
[1] |
BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L
|
IH
needle shear bolt
|
| 15. |
Q72
|
[1] |
KEY,5/16" Sq x 1 7/8", Par
|
IH
3/8 x 1-7/8 sq parallel
|
| . . |
443057
|
[1] |
GROOVED PIN,3/8" x 2 1/4", Type F
|
IH
Pin, Grooved, 3/8" x 2 1/4", Type F Superseded by part number: 435-61236
|
| 16. |
674323R1
|
[1] |
HUB
|
IH
needle drive crank
|
| 17. |
754777R91
|
[1] |
SHOE
|
IH
ASSY, brake LH Superseded by part number: 754777R92
|
| 18. |
674324R1
|
[1] |
DISC
|
IH
PLATE, brake pressure
|
| . . |
180077
|
[2] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
|
IH
SCREW, 5/16-18 x 3/4 znd hex-hd cap Superseded by part number: 87872
|
| 19. |
754778R91
|
[1] |
SHOE
|
IH
ASSY, brake RH Superseded by part number: 754778R92
|
| . . |
180044
|
[1] |
SPRING
|
NNA
SCREW, 1/4-20 x 2 znd hex-hd cap Superseded by part number: 413-432, 413-432, NLS
|
| . . |
120375
|
[2] |
NUT,Hex, 1/4" - 20, Gr 5
|
IH
Superseded by part number: 7770
|
| 20. |
674319R12
|
[2] |
NEEDLE
|
IH
ASSY, wire
|
| 21. |
U13033
|
[1] |
SPRING
|
IH
brake
|
| . . |
18770R1
|
[2] |
BOLT,Hex, 5/16"-18 x 2 3/4", G2
|
IH
5/16 x 2-3/4 znd hex-hd mach Superseded by part number: 180112
|
| . . |
120376
|
[4] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| . . |
120393
|
[2] |
BEARING WASHER,5/16", SAE
|
IH
WASHER, 11/32 x 11/16 x .065 C-Z Superseded by part number: 28588R1
|
| 22. |
674704R1
|
[1] |
SUPPORT
|
IH
wire guide
|
| . . |
469668R1
|
[2] |
WASHER
|
IH
13/32 x 3/4 x 16 ga C-Z Superseded by part number: 86632580
|
| 23. |
352133R1
|
[6] |
PLATE
|
IH
wire guide mounting
|
| . . |
436732
|
[12] |
SCREW,Slotted Pan Hd, #10-24 x 1/2"
|
IH
10-24 x 1/2 znd slt-pan-hd mach Superseded by part number: 70-1108
|
| . . |
120361
|
[12] |
NUT,Hex Mach Screw, #10 - 24
|
IH
Superseded by part number: 87304
|
| . . |
120217
|
[12] |
LOCK WASHER,#10
|
IH
WASHER, LOCK, #10 Superseded by part number: 80684
|
| . . |
21784R1
|
[12] |
WASHER
|
IH
17/64 x 1/2 x 16 ga C-Z Superseded by part number: 86624137
|
| 24. |
670617R2
|
[6] |
GUIDE
|
IH
wire Superseded by part number: 3102165R2
|
| 25. |
674703R1
|
[2] |
BRACKET
|
IH
wire guide
|
| . . |
18764R1
|
[4] |
HARDWARE,Hex, 5/16"-18 x 3/4", G2
|
IH
BOLT, 5/16 x 3/4 znd hex-hd mach Superseded by part number: 424-512
|
| 26. |
201697C1
|
[2] |
ROLLER
|
IH
needle tip
|
| . . |
271562
|
[4] |
SHIELD,Hex, 5/8" - 11 x 2", Gr 5
|
NNA
SCREW, 5/8-11 x 2 hex-hd cap Superseded by part number: 413-1032, 413-1032, NLS
|
| . . |
492-11062
|
[4] |
BEARING WASHER,5/8"
|
CAS
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| . . |
589068R1
|
[4] |
WASHER
|
IH
21/32 x 1-1/4 x 11 ga C-Z Superseded by part number: 495-51066
|
| 27. |
667415R1
|
[2] |
BUSHING
|
IH
needle sheave
|
| . . |
46-413
|
[2] |
RIVET,Csk, 1/4" x 3/4"
|
CAS
1/4 x 13/16 csk-hd solid
|
