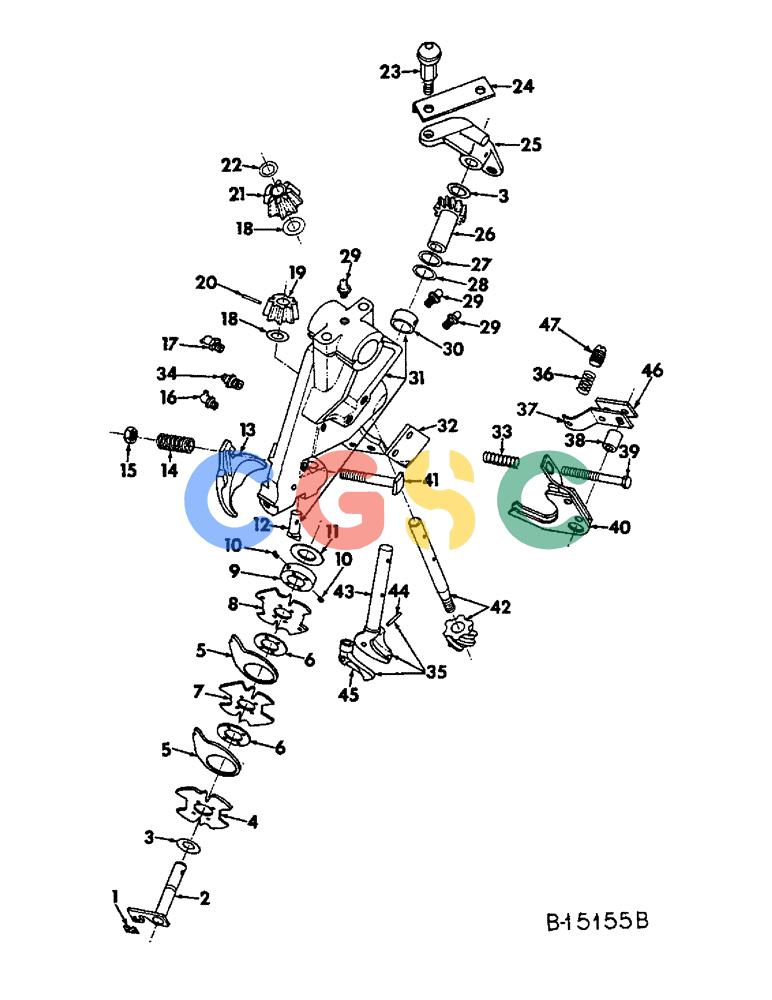

201608C95
|
[1] |
KNOTTER
|
IH
ASSY, LH
|
| . . |
201646C95
|
[1] |
KNOTTER
|
IH
ASSY, RH
|
| 1. |
668962R1
|
[1] |
KNIFE,14.28mm L x 9.53mm W x 0.71mm Thk
|
IH
BLADE, twine knife
|
| . . |
436690
|
[1] |
SCREW,Slotted Pan Hd, #8-32 x 3/16"
|
IH
8/32 x 3/16 znd pan-hd slt mach Superseded by part number: 470-1083
|
| . . |
178373R1
|
[1] |
WASHER
|
IH
17/32 x 1 x 16 ga C-Z Superseded by part number: 495-51053
|
| 2. |
201629C1
|
[1] |
LARGE PIN
|
IH
BODY ASSY, twine knife
|
| 3. |
201632C1
|
[3] |
SHIM
|
IH
knife body (as required)
|
| . . |
23042R1
|
[1] |
WASHER
|
IH
17/32 x 1 x 22 ga C-Z (as required) Superseded by part number: 87026182
|
| 4. |
201625C1
|
[1] |
DISC
|
IH
DISK, cord holder front
|
| 5. |
201626C1
|
[2] |
CLEANER
|
IH
cord holder Superseded by part number: 3101508R1
|
| . . |
120621
|
[4] |
SCREW,Sl Flat Hd, #10 - 24 x 1"
|
IH
10-24 x 1 znd slt-f-hd mach Superseded by part number: 473-11016
|
| 6. |
201622C1
|
[2] |
SPACER
|
IH
cord holder disk
|
| 7. |
201624C1
|
[1] |
DISC
|
IH
DISK, cord holder center
|
| 8. |
201623C2
|
[1] |
DISC
|
IH
DISK, cord holder rear
|
| 9. |
201621C1
|
[1] |
HUB
|
IH
cord holder disk
|
| 10. |
202015C2
|
[2] |
SET SCREW
|
IH
SCREW, 1/4-20 x 3/8 hex-soc half dog pt set w/nylon pellet
|
| 11. |
201627C1
|
[1] |
SHIM
|
IH
cord holder tube 24 ga (as required)
|
| 12. |
V618H
|
[1] |
SPACER
|
IH
PIECE, knotter frame wearing
|
| . . |
117898
|
[1] |
PIN
|
IH
5/32 x 1-1/16 sq-end str Superseded by part number: 17141R1
|
| 13. |
667563R2
|
[1] |
CAM
|
IH
knotter jaw closing
|
| 14. |
U13033
|
[1] |
SPRING
|
IH
knotter closing cam
|
| 15. |
385525R1
|
[1] |
LOCK NUT,3/8"-16, GB
|
IH
NUT, 3/8-16 cad hex lock Superseded by part number: 87039402
|
| 16. |
87415
|
[1] |
LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive
|
NH
NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive
|
| 17. |
19630R91
|
[1] |
LUBE NIPPLE,90 Degree, 1/8" NPT x .76" lg, Drive
|
IH
FITTING, 1/8-27 PTF 90 deg angle self tap lub Superseded by part number: 87017581
|
| 18. |
667239R1
|
[3] |
DISC
|
IH
SHIM, knotter hook shaft (as required)
|
| 19. |
495197R4
|
[1] |
GEAR
|
IH
PINION, bill hook
|
| 20. |
Q3854
|
[1] |
PIN
|
IH
knotter pinion
|
| 21. |
495192R3
|
[1] |
GEAR
|
IH
PINION, cord holder drive bevel
|
| 22. |
202207C1
|
[1] |
SHIM
|
IH
cord holder spindle
|
| 23. |
201634C1
|
[1] |
GUIDE
|
IH
FOLLOWER ASSY, cam
|
| . . |
120377
|
[1] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[1] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 24. |
201705C2
|
[1] |
CLIP
|
IH
spring
|
| 25. |
201633C1
|
[1] |
ARM
|
IH
acutating LH
|
| 25. |
201647C1
|
[1] |
ARM
|
IH
acutating RH
|
| . . |
17176R1
|
[1] |
LOCK PIN,3/16" x 1", Slotted
|
IH
Pin, 3/16" x 1", Slotted Superseded by part number: 82895491
|
| 26. |
201617C1
|
[1] |
TUBE,0.507" ID, 1.4" OD, 2.88" Length
|
IH
cord holder helical
|
| 27. |
202205C1
|
[1] |
SHIM
|
IH
cord holder tube 24 ga (as required)
|
| 28. |
201628C1
|
[2] |
SHIM
|
IH
cord holder tube .010 (as required)
|
| 29. |
219-86
|
[3] |
LUBE NIPPLE,1/8" NPTF
|
CAS
FITTING, 1/8-27 PTF str self tap lub
|
| 30. |
201611C1
|
[1] |
BUSHING
|
IH
knotter disk shaft
|
| 31. |
201609C95
|
[1] |
FRAME
|
IH
W/BEARING PIECE, bushing and cap bolts, knotter
|
| . . |
113-233
|
[2] |
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
|
CAS
3/8-16 x 1-3/4 znd hex-hd cap Superseded by part number: 9706689
|
| . . |
366862C1
|
[2] |
LOCK WASHER,3/8"
|
IH
3/8" Superseded by part number: 80680
|
| . . |
18796R1
|
[1] |
BOLT,Hex, 7/16"-14 x 1 1/2", G2
|
IH
7/16 x 1-1/2 znd hex-hd mach Superseded by part number: 179862
|
| . . |
120383
|
[1] |
LOCK WASHER,Helical Spring, 7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| . . |
21760R1
|
[1] |
WASHER,0.47" ID x 0.88" OD x 0.19" Thk
|
IH
15/32 x 7/8 x 7 ga C-Z
|
| . . |
607891R1
|
[1] |
WASHER
|
IH
15/32 x 1 x 16 ga C-Z Superseded by part number: 495-81158
|
| 32. |
201734C1
|
[1] |
GUIDE
|
IH
needle
|
| . . |
413-410
|
[2] |
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
|
CAS
SCREW, 1/4-20 x 5/8 znd hex-hd cap Superseded by part number: 280641
|
| . . |
492-11025
|
[2] |
LOCK WASHER,1/4"
|
CAS
WASHER, LOCK, 1/4" Superseded by part number: 72187247, 80682
|
| 33. |
131DS
|
[1] |
SPRING
|
IH
keeper pressure
|
| 34. |
87569
|
[1] |
LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive
|
PA
FITTING, 1/4-28 spec taper drive thd lub
|
| 35. |
201612C91
|
[1] |
HOOK
|
IH
ASSY, knotter Superseded by part number: 204793C91
|
| 36. |
313678R1
|
[1] |
SPRING
|
IH
twine end retainer helper, use with 201609C93
|
| 36. |
204716C1
|
[1] |
SPRING
|
IH
twin end retainer helper, use with 201609C95
|
| 37. |
201637C2
|
[1] |
SPRING
|
IH
twine end retainer, use with 201609C93
|
| 37. |
204714C1
|
[1] |
SPRING
|
IH
twine end retainer, use with 201609C95
|
| . . |
19962R1
|
[1] |
DOWEL,3/8" x 3/4"
|
IH
PIN, 3/8 x 3/4 dowel Superseded by part number: 37-1612
|
| 38. |
201642C1
|
[1] |
BUSHING
|
IH
PIVOT, keeper blade
|
| . . |
469668R1
|
[2] |
WASHER
|
IH
13/32 x 3/4 x 16 ga C-Z Superseded by part number: 86632580
|
| 39. |
201643C1
|
[1] |
SCREW
|
IH
keeper blade adjustment
|
| . . |
472146R1
|
[1] |
LOCK NUT,5/16"-18, GB
|
IH
NUT, 5/16-18 cdp hex. lock Superseded by part number: 230-4215
|
| . . |
NLS
|
[1] |
NO LONGER SERVICED
|
BAS
5/16-18 znd hex. jam
|
| . . |
120393
|
[2] |
BEARING WASHER,5/16", SAE
|
IH
WASHER, 11/32 x 11/16 x 16 ga C-Z (as required) Superseded by part number: 28588R1
|
| 40. |
201638C1
|
[1] |
HOLDER
|
IH
KEEPER ASSY, cord holder
|
| 41. |
667533R1
|
[1] |
BOLT,3/8" - 16 x 2 7/8"
|
IH
3/8-16 x 2-7/8 znd special knotter jam cam
|
| 42. |
202206C91
|
[1] |
SHAFT
|
IH
AND PINION ASSY, cord holder drive
|
| . . |
LEC271506
|
[2] |
7/16-20 znd hex.
|
SHIM
|
| . . |
Q5066
|
[1] |
PIN
|
IH
.1905 x 31/32 str
|
| . . |
21810R1
|
[1] |
WASHER
|
IH
19/32 x 15/16 x 22 ga C-Z Superseded by part number: Q3476
|
| . . |
21811R1
|
[2] |
WASHER
|
IH
19/32 x 15/16 x 20 ga C-Z Superseded by part number: Q232
|
| 44. |
666515R1
|
[1] |
PIN
|
IH
knotter hook jam
|
| 45. |
201613C91
|
[1] |
HOOK
|
IH
JAM ASSY, knotter hook Superseded by part number: 204793C91
|
| 46. |
204715C1
|
[1] |
SHEET
|
IH
PAD, shim, for use with frame, 201609C95
|
| . . |
120238
|
[1] |
JAM NUT,Jam, 1/2"-13, G5
|
IH
1/2 jam type 5 Superseded by part number: 329-148
|
| . . |
21739R1
|
[1] |
WASHER
|
IH
.344 x .562 x .054 Superseded by part number: 131402H
|
| 47. |
204717C1
|
[1] |
ADJUSTMENT SCREW
|
IH
spring adjusting, for use w/frame, 201609C95
|
