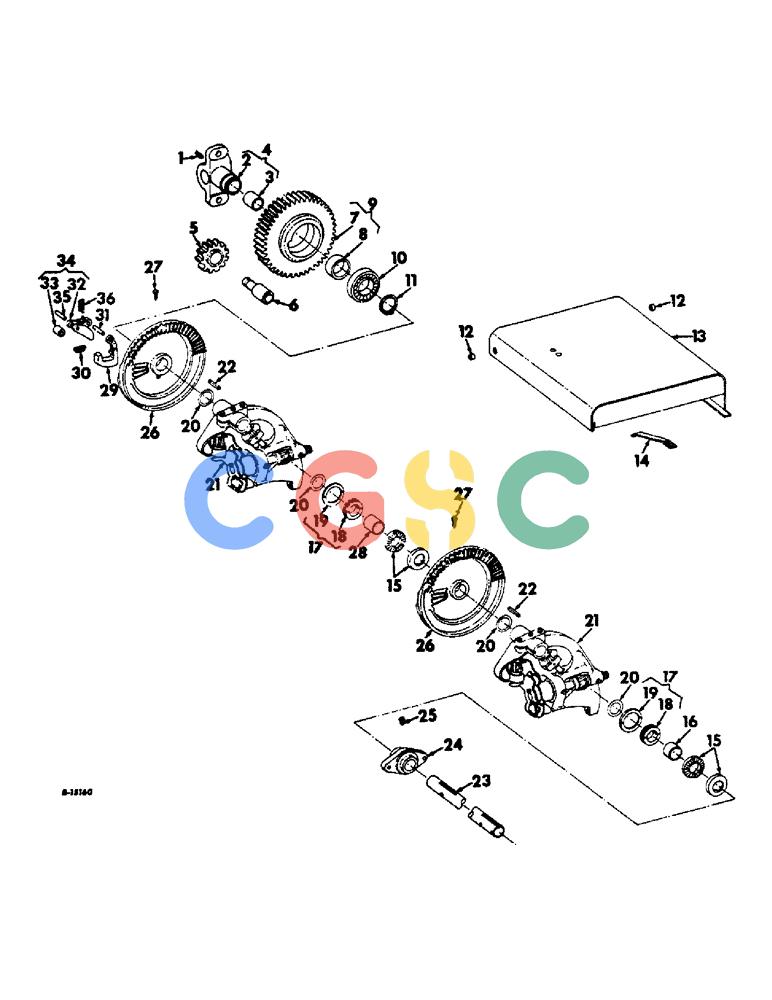

| 1. |
16964R91
|
[1] |
FITTING
|
IH
1/4-28 90 deg angle lub Superseded by part number: 87414
|
| 3. |
667844R1
|
[1] |
BUSHING
|
IH
twister shaft
|
| . . |
180177
|
[2] |
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
|
IH
SCREW, 1/2-13 x 1-1/2 znd hex-hd cap Superseded by part number: 113-410
|
| . . |
120384
|
[2] |
WASHER,1/2"
|
IH
LOCK, 1/2" Superseded by part number: 116121
|
| 4. |
669630R91
|
[1] |
SUPPORT
|
IH
W/BUSHING, twister and gear insert
|
| 5. |
674104R1
|
[1] |
GEAR
|
IH
PINION, auger drive idler
|
| 6. |
674464R91
|
[1] |
BEARING ASSY,0.6267" ID x 1.1811" OD x 1.531"
|
IH
ASSY, auger drive
|
| . . |
23685R1
|
[1] |
SET SCREW,Hex Soc, 3/8"-16 x 1 3/4"
|
IH
Cup Pt Hex Soc, 3/8"-16 x 1 3/4" Superseded by part number: 483-13828
|
| . . |
120377
|
[1] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| 8. |
667826R1
|
[1] |
BUSHING
|
IH
knotter drive gear
|
| 9. |
674353R11
|
[1] |
GEAR
|
IH
W/BUSHING, twister drive
|
| 10. |
271255R91
|
[1] |
BALL BEARING
|
IH
BEARING ASSY, twister drive gear Superseded by part number: 87591960
|
| 11. |
287049R1
|
[1] |
SNAP RING,#196, Ext
|
IH
Ring, Snap, , twister drive gear bearing #196, Ext Superseded by part number: 9671310
|
| 12. |
11309N
|
[2] |
SPACER
|
IH
knotter cover
|
| . . |
19570R1
|
[2] |
BOLT,Hex, 1/4" - 20 x 5/8", Gr 2
|
IH
1/4 x 5/8 znd hex-hd mach Superseded by part number: 280641
|
| . . |
492-11025
|
[2] |
LOCK WASHER,1/4"
|
CAS
WASHER, LOCK, 1/4" Superseded by part number: 72187247, 80682
|
| . . |
120392
|
[2] |
WASHER,1/4", SAE
|
IH
9/32 x 5/8 x 16 ga C-Z Superseded by part number: 87361
|
| 13. |
667784R92
|
[1] |
COVER
|
IH
ASSY, twister
|
| 14. |
667787R1
|
[1] |
SPRING
|
IH
knotter cover
|
| . . |
110638
|
[2] |
RIVET
|
IH
3/16 x 5/16 b-hd solid
|
| 15. |
674348R1
|
[4] |
COLLAR
|
IH
twister shaft adjusting
|
| . . |
443100
|
[4] |
STUD
|
IH
no. 12 x 1/2 rd-hd grooved drive
|
| 16. |
201684C1
|
[1] |
SPACER
|
IH
twister frame LH
|
| 17. |
202512C91
|
[2] |
RING
|
IH
ASSY, twister spacer
|
| 19. |
238604R1
|
[2] |
SNAP RING,#212, Ext
|
IH
RING, SNAP, #212, Ext
|
| 20. |
667439R1
|
[14] |
SHIM
|
IH
twister shaft .005 (as required)
|
| 21. |
201676C91
|
[2] |
TWISTER
|
IH
ASSY, for components see list of parts under detail of twister
|
| 22. |
Q72
|
[2] |
KEY,5/16" Sq x 1 7/8", Par
|
IH
3/8 x 1-7/8 sq parallel
|
| 23. |
201683C1
|
[1] |
SHAFT
|
IH
wire twister
|
| . . |
608085R1
|
[1] |
WASHER
|
IH
1-13/32 x 2 x 16 ga Superseded by part number: 495-81213
|
| . . |
68676H
|
[14] |
WASHER
|
IH
1-13/32 x 1-3/4 x 22 ga (as required)
|
| . . |
137263
|
[1] |
STRIP
|
NNA
3/16" x 2" Superseded by part number: 432-1232
|
| 24. |
674347R1
|
[1] |
FLANGE
|
IH
BEARING, twister shaft L
|
| . . |
18495R1
|
[2] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
|
IH
3/8 x 1-1/4 znd hex-hd mach Superseded by part number: 180124
|
| . . |
120382
|
[2] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 25. |
87415
|
[1] |
LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive
|
NH
NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive
|
| 26. |
201687C1
|
[2] |
GEAR
|
IH
trip dog carrier and wire twister
|
| . . |
86837295
|
[2] |
SCREW, 1/2-20 x 2 znd hex-hd cap
|
GUIDE
|
| 27. |
201688C1
|
[2] |
SCREW
|
IH
twister gear set
|
| . . |
124829
|
[2] |
JAM NUT,Hex, 3/8" - 16, Gr 5
|
IH
Superseded by part number: 329-146
|
| 28. |
201689C1
|
[1] |
SPACER
|
IH
twister shaft RH
|
| 29. |
663378R1
|
[1] |
PAWL
|
IH
DOG, auxiliary trip
|
| 30. |
R1003
|
[1] |
SPRING
|
IH
auxiliary trip dog
|
| 31. |
664947R1
|
[1] |
PIVOT
|
IH
trip dog
|
| . . |
21755R1
|
[1] |
WASHER
|
IH
15/32 x 13/16 x 18 ga C-Z (as required)
|
| . . |
21756R1
|
[1] |
WASHER
|
IH
15/32 x 3/4 x 22 ga (as required) Superseded by part number: 86624145
|
| 33. |
V341
|
[1] |
PAWL
|
IH
ROLLER, trip dog
|
| 34. |
663478R11
|
[1] |
PAWL
|
IH
DOG AND ROLLER, trip
|
| 35. |
V690
|
[1] |
PIN
|
IH
STUD, trip dog roller
|
| 36. |
V680
|
[1] |
SPRING
|
IH
trip dog Superseded by part number: 753027R1
|
