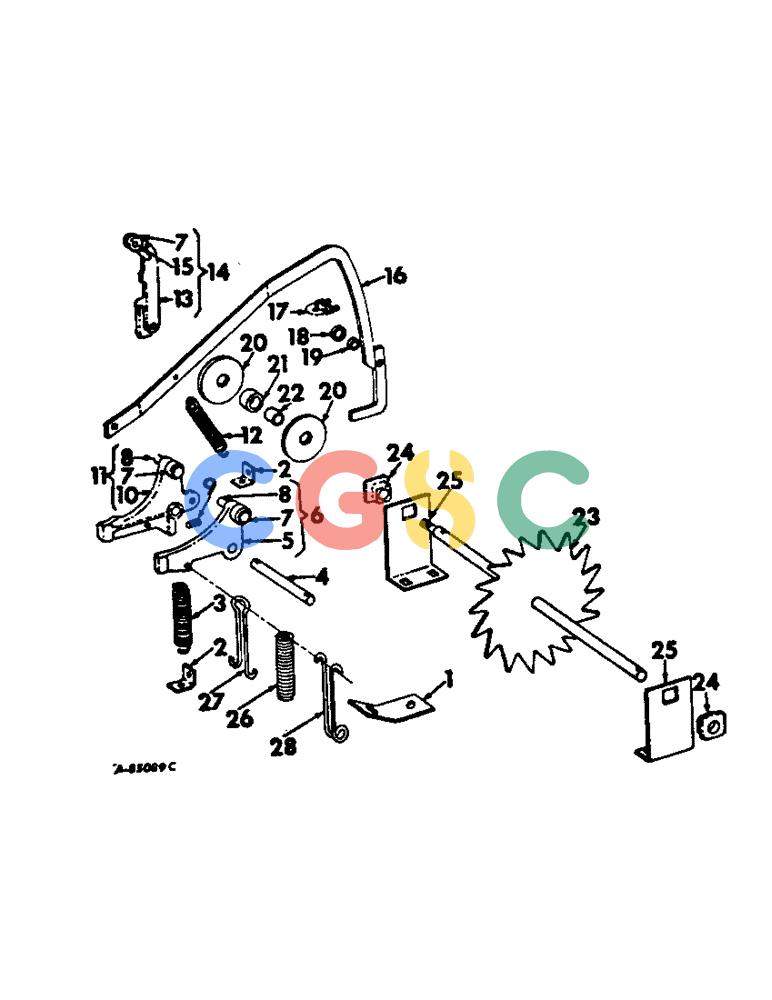

| 1. |
201692C1
|
[1] |
ANCHOR
|
IH
spring trip, 440 custom wire baler
|
| 2. |
668082R1
|
[1] |
ANCHOR
|
IH
spring trip, 2 for twine balers, 1 for wire balers
|
| . . |
18494R1
|
[1] |
BOLT,Hex, 3/8" - 16 x 1", Gr 2
|
IH
3/8 x 1 C-Z hex-hd mach Superseded by part number: 424-616
|
| . . |
18684R1
|
[1] |
BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2
|
IH
3/8 x 1-1/4 znd sq-nk crg Superseded by part number: 550796R1
|
| . . |
120377
|
[2] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[2] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 3. |
101330H
|
[1] |
SPRING
|
IH
trip, for twine balers
|
| 4. |
674190R1
|
[1] |
STUD
|
IH
trip arm, for twine balers
|
| 4. |
664778R1
|
[1] |
PIN
|
IH
STUD, trip arm, for wire balers
|
| . . |
87395
|
[1] |
COTTER PIN,1/8" OD x 1-1/4" OAL
|
NH
PIN, SPLIT (COTTER), 1/8" x 1-1/4"
|
| . . |
178375R1
|
[3] |
WASHER
|
IH
25/32 x 1-1/4 x 16 ga C-Z (as required) Superseded by part number: 249100
|
| 6. |
201690C91
|
[1] |
ARM
|
IH
ASSY, trip, for wire baler
|
| 7. |
662019R1
|
[1] |
ROLLER,28.57mm OD x 12.7mm L
|
IH
trip arm, 2 for twine balers, 1 for wire balers
|
| 8. |
662020R1
|
[1] |
STUD
|
IH
trip arm roller
|
| . . |
21996R1
|
[1] |
LOCK PIN,1/4" x 1 3/8", Slotted
|
IH
Pin, 1/4" x 1 3/8", Slotted Superseded by part number: 17053R1
|
| . . |
121222
|
[1] |
COTTER PIN,3/32" x 3/4"
|
IH
PIN, SPLIT (COTTER), 3/32" x 3/4" Superseded by part number: 132-321
|
| . . |
477242R1
|
[1] |
WASHER
|
IH
13/32 x 1 x 22 ga C-Z
|
| 9. |
131DS
|
[1] |
SPRING
|
IH
lockout latch, for twine baler
|
| . . |
23301R1
|
[1] |
LOCK PIN,5/16" x 1 1/4", Slotted
|
IH
Pin, 5/16" x 1 1/4", Slotted Superseded by part number: 438-12020
|
| 11. |
674417R11
|
[1] |
ARM
|
IH
ASSY, trip, for twine balers
|
| 12. |
204009C1
|
[1] |
SPRING
|
IH
trip rod, replaces 6646, when 6646 or 6646-1 is ordered furnish 204009C1
|
| 14. |
204141C91
|
[1] |
LATCH
|
IH
ASSY, lockout, for twine balers
|
| 15. |
674193R1
|
[1] |
LARGE PIN
|
IH
STUD, trip lockout roller
|
| 16. |
674187R1
|
[1] |
ROD
|
IH
ASSY, trip, for twine balers
|
| 16. |
674188R1
|
[1] |
ROD
|
IH
ASSY, trip, for wire balers
|
| 17. |
667502R91
|
[1] |
SUPPORT
|
IH
CLAMP ASSY, trip rod
|
| 18. |
674021R1
|
[1] |
ROLLER,22.23mm OD x 9.65mm L
|
IH
trip rod
|
| . . |
18656R1
|
[1] |
BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2
|
IH
1/4 x 1-1/4 C-Z hex-hd mach Superseded by part number: 424-420
|
| . . |
492-11025
|
[1] |
LOCK WASHER,1/4"
|
CAS
WASHER, LOCK, 1/4" Superseded by part number: 72187247, 80682
|
| . . |
21549R1
|
[1] |
WASHER
|
IH
9/32 x 3/4 x 18 ga C-Z Superseded by part number: 495-81106
|
| 19. |
674020R1
|
[1] |
BUSHING,6.55mm ID x 9.53mm OD x 10.67mm L
|
IH
trip rod
|
| 20. |
667782R1
|
[2] |
SHEAVE
|
IH
trip rod Superseded by part number: 210557C1
|
| 21. |
3100851R1
|
[1] |
ROLLER,35.05mm OD x 13.49mm L
|
IH
trip rod
|
| 22. |
3100852R1
|
[1] |
SPACER,16.94mm ID x 22.23mm OD x 12.7mm L
|
IH
trip rod roller
|
| 23. |
204616C1
|
[1] |
DRIVE SPROCKET
|
IH
WHEEL ASSY, meter, replaces 674014R1
|
| . . |
667927R1
|
[1] |
LOCK NUT,5/8"-11, GB
|
IH
NUT, 5/8-11 hex lock Superseded by part number: 231-42110
|
| . . |
20703R1
|
[2] |
WASHER
|
IH
29/32 x 1-3/4 x 16 ga C-Z (as required) Superseded by part number: 495-81059
|
| . . |
103325
|
[1] |
LOCK WASHER,5/8"
|
IH
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| . . |
21648R1
|
[2] |
LOCK PIN,1/4" x 1 1/4", Slotted
|
IH
Pin, 1/4" x 1 1/4", Slotted Superseded by part number: 438-11620
|
| 24. |
668999R1
|
[2] |
BUSHING
|
IH
meter wheel
|
| 25. |
674013R1
|
[2] |
BRACKET
|
IH
meter wheel shaft brg
|
| . . |
18508R1
|
[4] |
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 3/8 x 3/4 C-Z sq-nk crg Superseded by part number: 86508748
|
| . . |
619856R1
|
[4] |
WASHER
|
IH
13/32 x 1 x 16 ga C-Z Superseded by part number: 87613182
|
| 26. |
665025R1
|
[1] |
SPRING
|
IH
BODY, spring trip, 440 custom wire baler
|
| 27. |
665026R1
|
[1] |
HOOK
|
IH
LOOP, spring trip, 440 custom wire baler
|
| 28. |
665027R1
|
[1] |
HOOK
|
IH
spring trip, 440 custom wire baler
|
