沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BElectrical SystemAlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
486 次

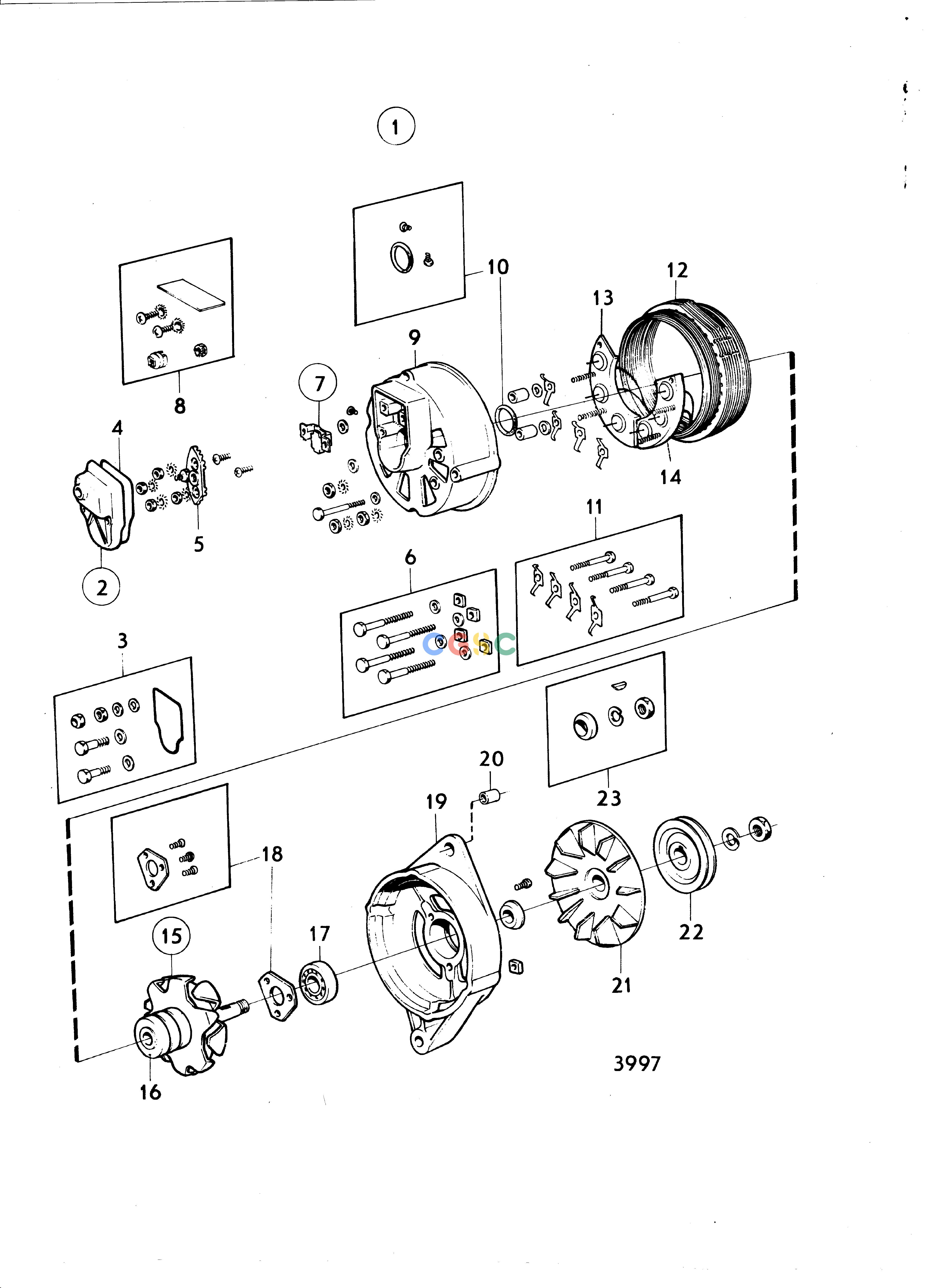

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
827302
|
[1] |
Alternator
|
12V 38A
|
| 2. |
827565
|
[1] |
Cover
|
|
| 3. |
827566
|
[1] |
Mounting kit
|
|
| 4. |
825531
|
[1] |
Gasket
|
|
| 5. |
825532
|
[1] |
Diode retainer
|
For charging of 2 batteries use double diode set 825970
|
| 6. |
825566
|
[1] |
Set
|
|
| 7. |
825527
|
[1] |
Carbon retainer
|
|
| 8. |
352749
|
[1] |
Repair kit
|
|
| 9. |
|
|
|
|
| 10. |
1560922
|
[1] |
Seal
|
|
| 11. |
827568
|
[1] |
Screw kit
|
|
| 12. |
|
|
|
|
| 13. |
827563
|
[1] |
Diode retainer
|
|
| 14. |
1517037
|
[1] |
Diode retainer
|
|
| 15. |
825923
|
[1] |
Rotor
|
|
| 16. |
|
|
|
|
| 17. |
181800
|
[1] |
Ball bearing
|
|
| 18. |
825526
|
[1] |
Washer
|
|
| 19. |
|
|
|
|
| 20. |
465033
|
[1] |
Guide
|
|
| 21. |
820460
|
[1] |
Fan
|
|
| 22. |
820459
|
[1] |
Pulley
|
|
| 23. |
1560928
|
[1] |
Mounting kit
|
(825565)
|
