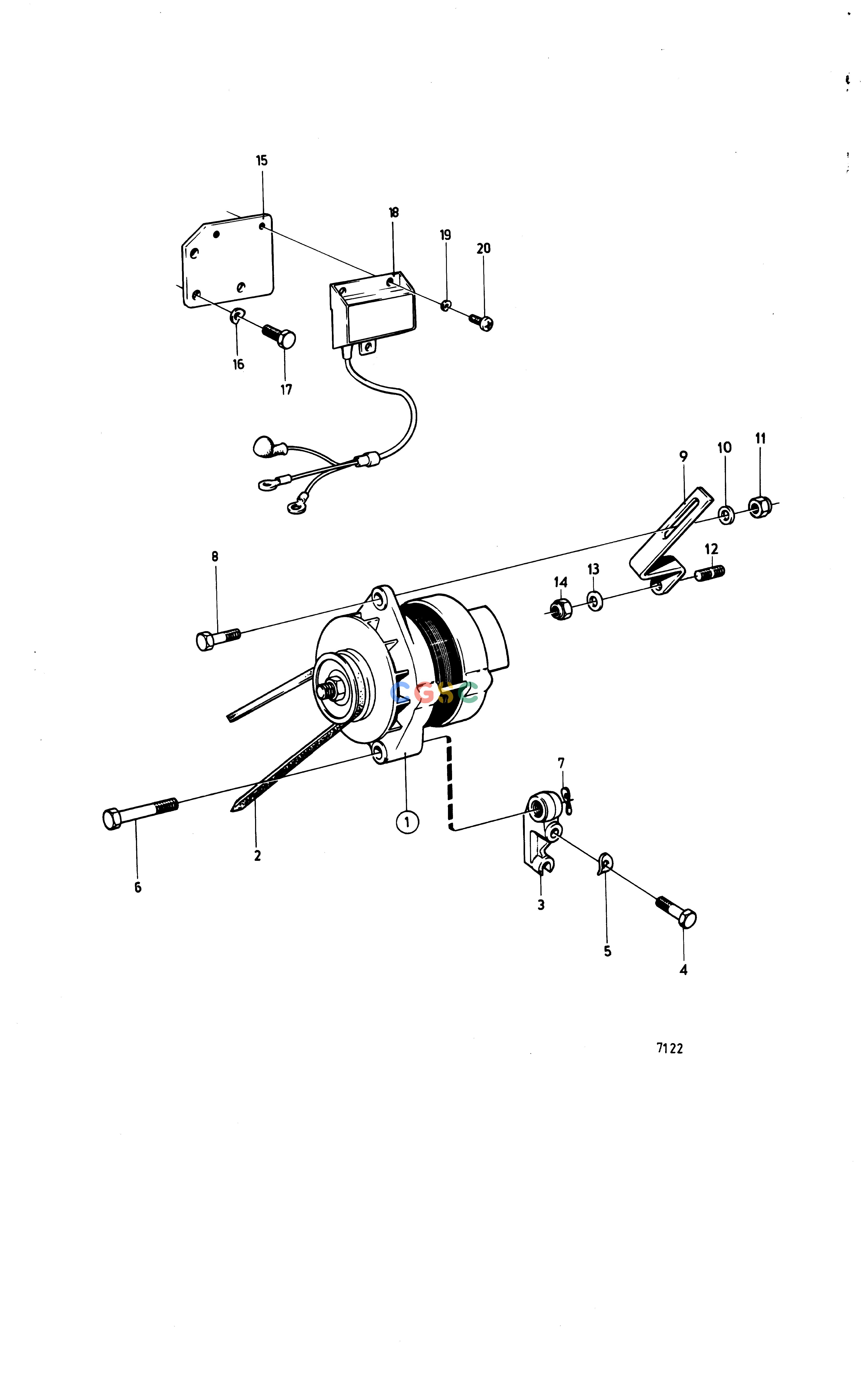

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BElectrical SystemAlternator and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
254 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
827302
|
[1] |
Alternator
|
Replaced by 834610., MO-2349
|
| 1. |
834610
|
[1] |
Alternator
|
Replaced by 834965., MO-13324, 13251-13399.
|
| 1. |
|
|
|
Replaced by 831380., MO-13325-13250, 13400-16047.
|
| 1. |
841380
|
[1] |
Alternator
|
Replaced by 841770., MO 16048-
|
| 2. |
958317
|
[1] |
V-belt
|
L=1175mm
|
| 3. |
833480
|
[1] |
Bracket
|
833480+955554+941909 are used for MD17, only when unresilient engine suspension is mounted.
|
| 4. |
955537
|
[1] |
Hexagon screw
|
L=51mm, MO-633
|
| 4. |
955322
|
[1] |
Hexagon screw
|
L=50mm, MO 634-
|
| 4. |
955535
|
[1] |
Hexagon screw
|
L=32mm, MO-633
|
| 4. |
955319
|
[1] |
Hexagon screw
|
L=35mm, MO 634-
|
| 5. |
942336
|
[2] |
Spring washer
|
MO-633
|
| 5. |
941908
|
[2] |
Spring washer
|
MO 634-
|
| 6. |
955554
|
[1] |
Hexagon screw
|
833480+955554+941909 are used for MD17, only when unresilient engine suspension is mounted.
|
| 7. |
941909
|
[1] |
Spring washer
|
833480+955554+941909 are used for MD17, only when unresilient engine suspension is mounted.
|
| 8. |
955298
|
[1] |
Hexagon screw
|
MO-18779, L=40mm
|
| 9. |
833289
|
[1] |
Tensioner
|
|
| 10. |
191172
|
[1] |
Washer
|
MO-18779
|
| 11. |
955782
|
[1] |
Hexagon nut
|
|
| 12. |
953042
|
[1] |
Stud
|
|
| 13. |
955894
|
[1] |
Washer
|
|
| 14. |
955782
|
[1] |
Hexagon nut
|
(946036)
|
| 15. |
833290
|
[1] |
Bracket
|
MO-2349
|
| 16. |
941906
|
[2] |
Spring washer
|
MO-2349
|
| 17. |
955271
|
[2] |
Hexagon screw
|
MO-2349
|
| 18. |
843547
|
[1] |
Governor
|
(827089) MO-2349
|
| 19. |
941905
|
[3] |
Spring washer
|
MO-2349
|
| 20. |
956076
|
[3] |
Cross recessed screw
|
MO-2349
|
