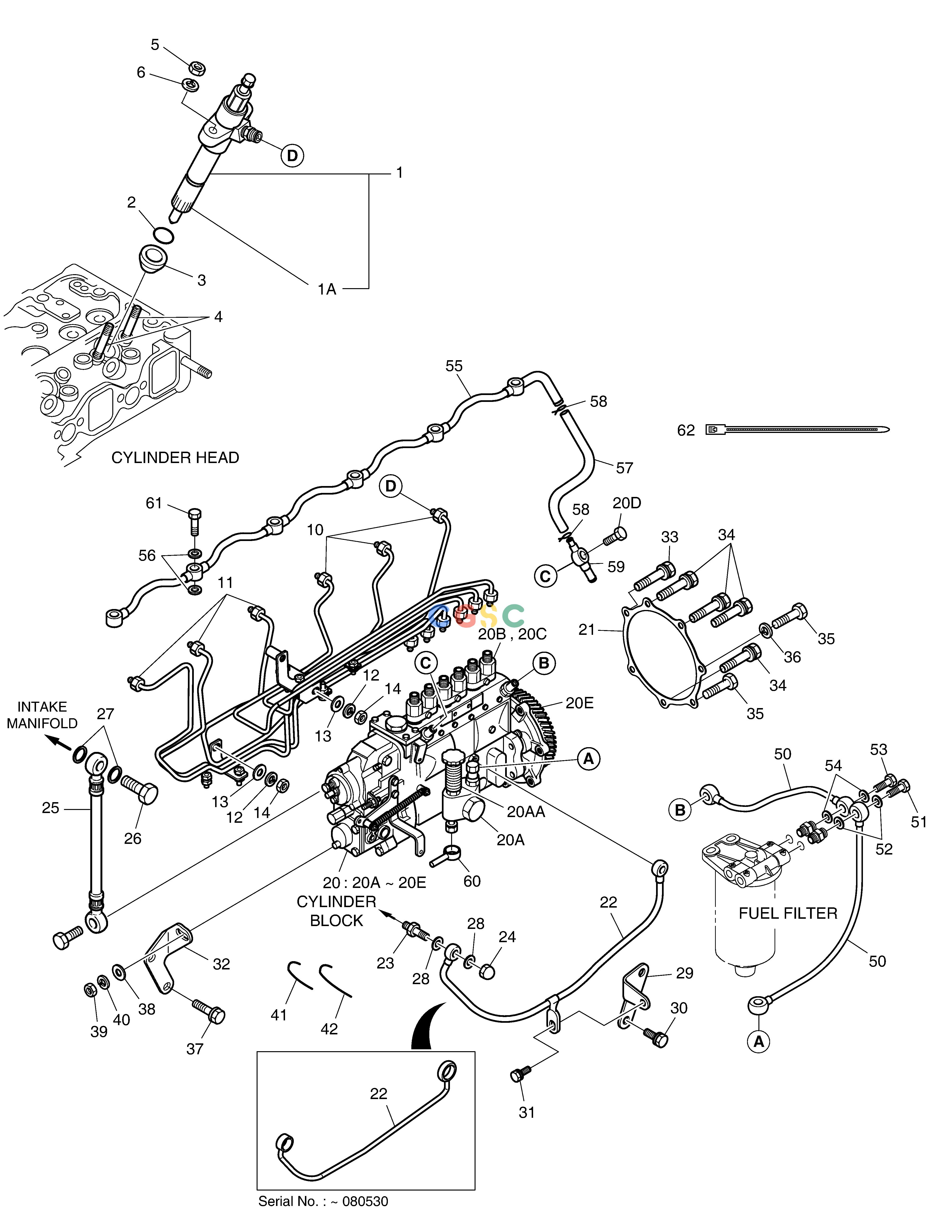

斗山零件查询FUEL SYSTEM SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
505 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.10101-7102B
|
[6] |
|
|
| 1. |
65.10101-7091
|
[6] |
NOZZLE HOLDER ASS'Y
|
65.10101-7102B
|
| 10. |
65.10301-6202
|
[1] |
PRESSURE PIPE ASS`Y
|
|
| 11. |
65.10301-6203
|
[1] |
PRESSURE PIPE ASS`Y
|
|
| 12. |
06.16731-2107
|
[2] |
WASHER
|
|
| 13. |
06.15010-2311
|
[2] |
WASHER
|
|
| 14. |
06.11063-8214
|
[2] |
. NUT
|
|
| 1A. |
65.10102-6061
|
[1] |
NOZZLE
|
|
| 2. |
65.96507-0050
|
[6] |
SEAL;RING
|
|
| 20. |
65.11101-7389A
|
[1] |
PUMP;INJECTION
|
400912-00069
|
| 20. |
400912-00069
|
[1] |
|
|
| 20A. |
105220-649A
|
[1] |
PUMP,FEED
|
|
| 20AA. |
400908-00004
|
[1] |
. HAND PRIMING PUMP
|
|
| 20B. |
131150-2620
|
[6] |
PLUNGER
|
|
| 20C. |
131110-5520
|
[1] |
VALVE;DELIVERY
|
|
| 20D. |
131424-1520
|
[1] |
VALVE;OVERFLOW
|
|
| 20E. |
156639-8820
|
[1] |
COUPLING
|
|
| 21. |
65.11902A0001
|
[1] |
GASKET;INJECTION PUMP MOUNTING
|
|
| 22. |
65.05701-5200
|
[1] |
PIPE;OIL
|
65.05701-5328
|
| 22. |
65.05701-5328
|
[1] |
PIPE;OIL
|
|
| 23. |
65.98155-0011
|
[1] |
UNION;HOLLOW
|
|
| 24. |
06.12172-9314
|
[1] |
NUT;CAP
|
|
| 25. |
65.08301-6010A
|
[1] |
HOSE;AIR
|
|
| 26. |
65.98150-0053B
|
[1] |
SCREW;HOLLOW
|
|
| 27. |
06.56180-0714
|
[2] |
RING;SEAL
|
|
| 28. |
06.56180-0714
|
[2] |
RING;SEAL
|
|
| 29. |
65.97403-0014
|
[1] |
BRACKET
|
|
| 3. |
65.96507-0044B
|
[6] |
RING;SEAL
|
|
| 3. |
65.96507-0051
|
[6] |
SEAL;RING
|
|
| 30. |
06.01943-3213
|
[2] |
BOLT ASS`Y M10X1.25X20
|
|
| 31. |
06.01923-3112
|
[1] |
BOLT ASS`Y M8X18
|
|
| 32. |
65.11401-0002C
|
[1] |
BRACKET;REAR
|
|
| 33. |
06.01913-3122
|
[1] |
BOLT ASS`Y M8X55
|
|
| 34. |
06.01913-3124
|
[4] |
BOLT ASS`Y M8X65
|
|
| 35. |
06.01283-7128
|
[2] |
BOLT;HEX. M8X85
|
|
| 36. |
06.16731-2107
|
[1] |
WASHER
|
|
| 37. |
06.01953-3213
|
[2] |
BOLT ASS`Y M10X1.25X20
|
|
| 38. |
06.15010-2312
|
[1] |
WASHER;PLAIN
|
|
| 39. |
06.11063-9215
|
[1] |
NUT M10X1.25
|
|
| 4. |
65.90201-0099
|
[12] |
BOLT;STUD
|
|
| 40. |
06.16731-2108
|
[1] |
WASHER;SPRING
|
|
| 41. |
65.11596-0001
|
[3] |
WIRE;SEAL
|
|
| 42. |
65.11596-0002
|
[1] |
WIRE;SEAL
|
|
| 5. |
06.11063-8214
|
[12] |
. NUT
|
|
| 50. |
65.96341-0100
|
[2] |
HOSE;FUEL
|
65.96341-0140
|
| 50. |
65.96341-0140
|
[2] |
HOSE,FUEL
|
|
| 51. |
06.78144-2204
|
[1] |
SCREW;HOLLOW
|
|
| 52. |
65.96507-0043
|
[2] |
. RING;SEAL
|
|
| 53. |
06.78144-2204
|
[1] |
SCREW;HOLLOW
|
|
| 54. |
65.96507-0043
|
[2] |
. RING;SEAL
|
|
| 55. |
65.12301-5824
|
[1] |
PIPE;FUEL
|
|
| 56. |
06.56180-0712
|
[12] |
RING;SEAL
|
65.96501-0001
|
| 56. |
65.96501-0001
|
[12] |
|
|
| 57. |
65.96301-0176
|
[1] |
HOSE;RUBBER
|
|
| 58. |
65.97401-0089
|
[2] |
CLIP
|
|
| 59. |
65.12301-5825
|
[1] |
PIPE;FUEL(RETURN)
|
|
| 6. |
06.16731-2107
|
[12] |
WASHER
|
|
| 60. |
65.12301-5022
|
[1] |
PIPE;FUEL(RETURN)
|
|
| 61. |
65.98150-0015B
|
[6] |
SCREW;HOLLOW
|
|
| 62. |
65.97460-0002
|
[1] |
CABLE TIE
|
|
