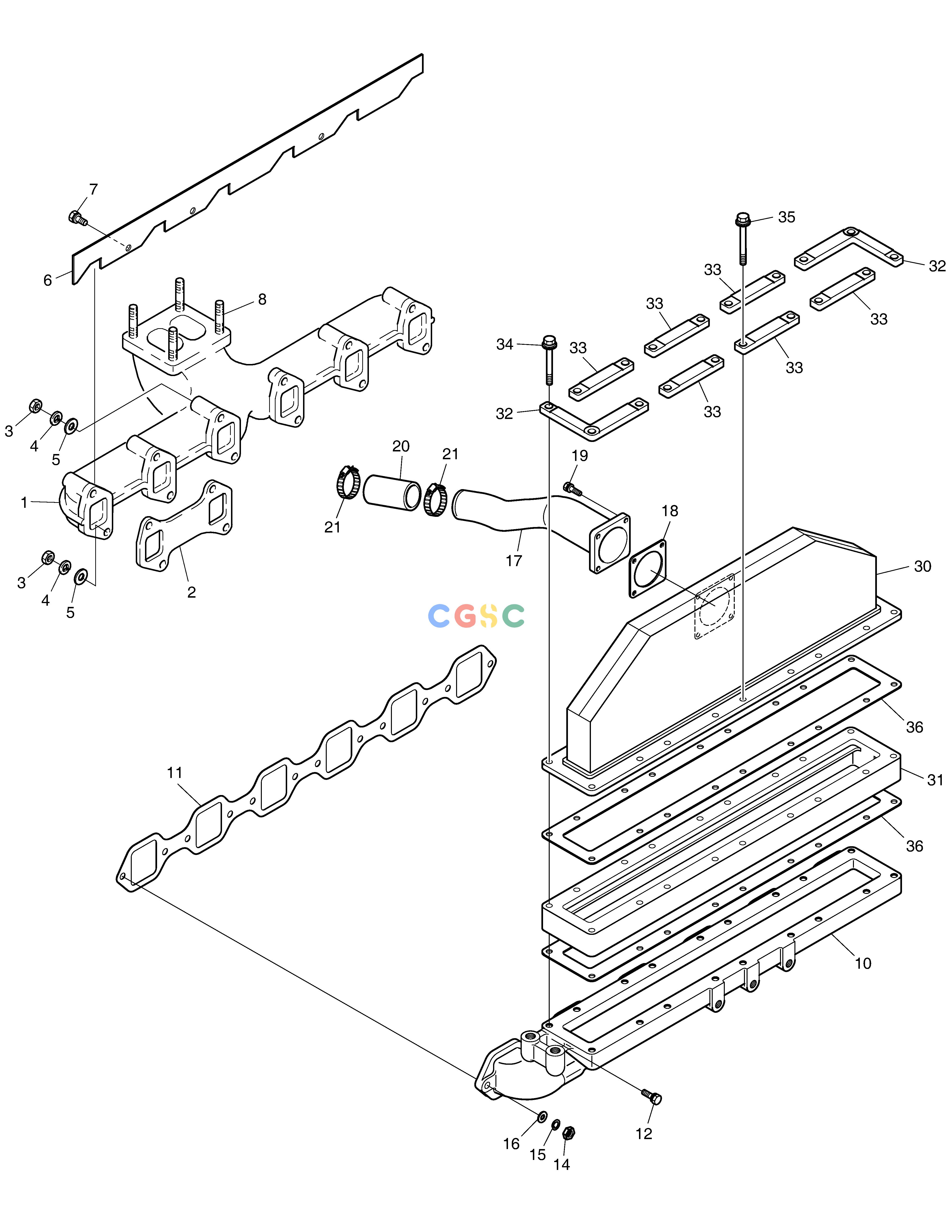

斗山零件查询INTAKE & EXHAUST MANIFOLD SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
861 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.08101-0274
|
[1] |
MANIFOLD;EXHAUST
|
65.08101-0199
|
| 1. |
65.08101-0199
|
[1] |
MANIFOLD;EXHAUST
|
|
| 10. |
65.08201-5056A
|
[1] |
MANIFOLD;INTAKE
|
240203-00046
|
| 10. |
240203-00046
|
[1] |
|
|
| 11. |
65.08902A0004
|
[1] |
GASKET;INTAKE MANIFOLD
|
65.08902-0034
|
| 11. |
65.08902-0034
|
[1] |
GASKET;INTAKE MANIFOLD
|
|
| 12. |
06.01923-3115
|
[8] |
BOLT ASS`Y M8X25
|
65.90020-0142
|
| 12. |
65.90020-0142
|
[8] |
BOLT ASS`Y
|
|
| 14. |
06.11063-8214
|
[3] |
. NUT
|
65.90535-0003
|
| 14. |
65.90535-0003
|
[3] |
NUT
|
|
| 15. |
06.16731-2107
|
[3] |
WASHER
|
|
| 16. |
06.15010-2311
|
[3] |
WASHER
|
|
| 17. |
65.08202-0137
|
[1] |
PIPE;INLET
|
|
| 18. |
65.09904-0008
|
[1] |
GASKET;AIR HEATER
|
|
| 19. |
06.01913-3115
|
[4] |
BOLT ASS`Y M8X25
|
|
| 2. |
65.08901-0028
|
[3] |
GASKET;EXHAUST MANIFOLD
|
400610-00041
|
| 2. |
400610-00041
|
[3] |
GASKET,EXHAUST MANIFOLD
|
|
| 20. |
65.96301-0279
|
[1] |
HOSE;RUBBER
|
|
| 21. |
06.67020-0109
|
[2] |
CLAMP;HOSE
|
|
| 3. |
06.11063-8214
|
[12] |
. NUT
|
|
| 30. |
65.09501-7002
|
[1] |
INTER COOLER ASS'Y
|
400215-00001
|
| 30. |
400215-00001
|
[1] |
. INTERCOOLER ASSY
|
|
| 31. |
65.26803-7032B
|
[1] |
. AIR HEATER
|
|
| 32. |
110968-00001
|
[2] |
STIFFENER;INTERCOOLER
|
|
| 33. |
110968-00002
|
[6] |
STIFFENER;INTERCOOLER
|
|
| 34. |
06.01923-3122
|
[17] |
BOLT ASS`Y M8X55
|
|
| 34. |
06.01923-3124
|
[17] |
BOLT ASS`Y M8X65
|
|
| 35. |
06.01923-3123
|
[1] |
. BOLT ASS`Y M8X60
|
|
| 35. |
06.01923-3125
|
[1] |
. BOLT ASS`Y M8X70
|
|
| 36. |
65.09905-0006
|
[2] |
GASKET;INTER COOLER
|
|
| 4. |
06.16731-2107
|
[12] |
WASHER
|
|
| 5. |
06.15010-2311
|
[12] |
WASHER
|
|
| 6. |
65.08120-0026
|
[1] |
HEAT;SCREEN
|
111002-00142
|
| 6. |
111002-00142
|
[1] |
SCREEN,HEAT;EXHAUST MANIFOLD
|
|
| 7. |
06.01913-3111
|
[3] |
BOLT ASS`Y M8X16
|
|
| 8. |
06.06175-8208
|
[4] |
BOLT;STUD M10X1.25X30
|
|
