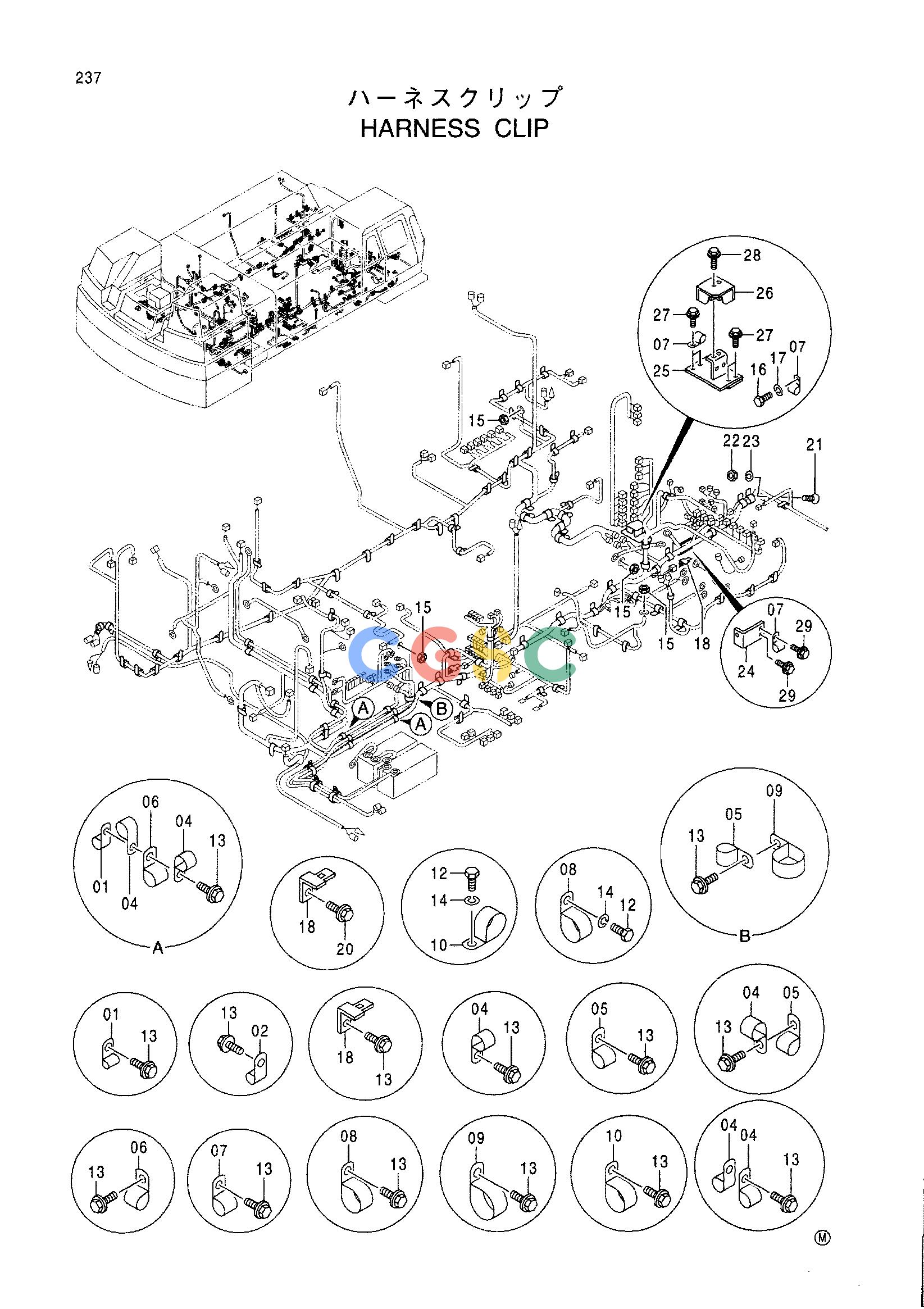

日立零件查询（CX1000）HARNESS CLIP Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
381 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 4190261 | [27] | CLIP (10) | |
| 02. | 4190275 | [15] | CLIP (14) | |
| 04. | 4190274 | [25] | CLIP (20) | |
| 05. | 4190263 | [10] | CLIP (25) | |
| 06. | 4192035 | [3] | CLIP (28) | |
| 07. | 4190264 | [8] | CLIP (35) | |
| 08. | 4190291 | [7] | CLIP (40) | |
| 09. | 4193848 | [7] | CLIP (45) | |
| 10. | 4190265 | [5] | CLIP (50) | |
| 12. | J901016 | [4] | BOLT | |
| 13. | J011022 | [85] | BOLT;SEMS | |
| 14. | A590910 | [4] | WASHER;SPRING | |
| 15. | J950010 | [5] | NUT | |
| 16. | J901025 | [1] | BOLT | |
| 17. | A590910 | [1] | WASHER;SPRING | |
| 18. | 4336875 | [2] | BRACKET | |
| 20. | J011022 | [2] | BOLT;SEMS | |
| 21. | M470313 | [3] | SCREW | |
| 22. | M500303 | [3] | NUT | |
| 23. | A590903 | [3] | WASHER;SPRING | |
| 24. | 9753439 | [1] | BRACKET | |
| 25. | 8084722 | [1] | BRACKET | |
| 26. | 8084721 | [1] | COVER | |
| 27. | J021025 | [4] | BOLT;SEMS | |
| 28. | J021030 | [2] | BOLT;SEMS | |
| 29. | J011025 | [2] | BOLT;SEMS | |
