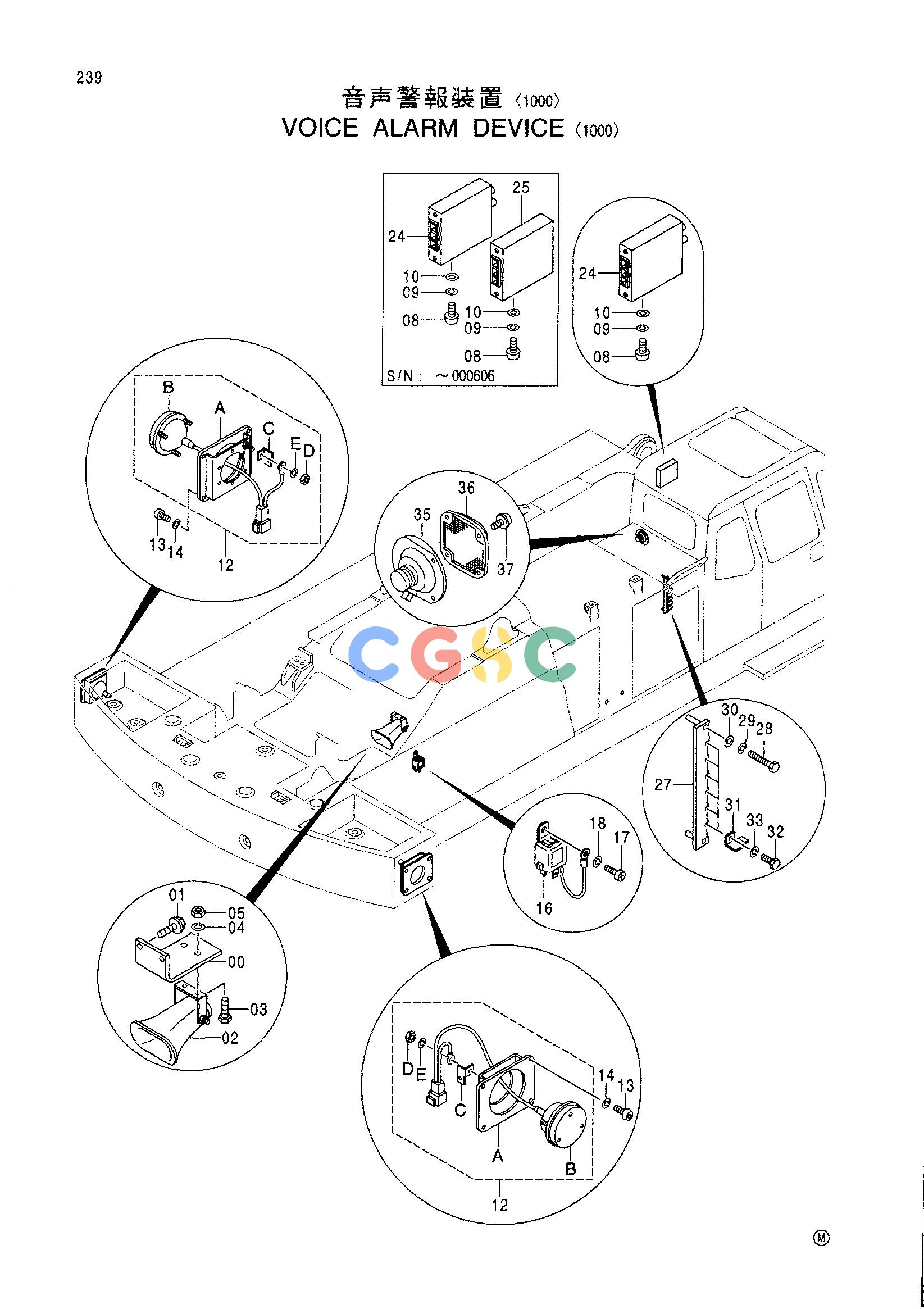

日立零件查询（CX1000）VOICE ALARM DEVICE <1000> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
211 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4389946 | [1] | BRACKET | |
| 01. | J011230 | [2] | BOLT;SEMS | |
| 02. | 4164270 | [1] | SPEAKER | I4470519 |
| 02. | 4470519 | [1] | SPEAKER | |
| 03. | J900820 | [2] | BOLT | |
| 04. | A590908 | [2] | WASHER;SPRING | |
| 05. | M500807 | [2] | NUT | |
| 08. | J850816 | [8] | SCREW | YJ850816 |
| 08. | J850816 | [4] | SCREW | |
| 09. | J251008 | [8] | WASHER;SPRING | YJ251008 |
| 09. | J251008 | [4] | WASHER;SPRING | |
| 10. | J250008 | [8] | WASHER;PLANE | YJ250008 |
| 10. | J250008 | [4] | WASHER;PLANE | |
| 12. | 7035958 | [2] | LAMP;SIDE ASS'Y | |
| 12A. | 8075090 | [1] | COVER | |
| 12B. | 4020829 | [1] | LAMP | |
| 12C. | 4336874 | [1] | BRACKET | |
| 12D. | M500605 | [1] | NUT | |
| 12E. | A590906 | [1] | WASHER;SPRING | |
| 13. | 4327727 | [8] | BOLT | |
| 14. | A590906 | [8] | WASHER;SPRING | |
| 16. | 4175981 | [1] | FLASHER | |
| 17. | M430610 | [1] | SCREW | |
| 18. | A590906 | [1] | WASHER;SPRING | |
| 24. | 4386631 | [1] | UNIT | T4465376 |
| 24. | 4386631 | [1] | UNIT | 2047942 |
| 24. | 4465376 | [1] | UNIT | |
| 25. | 4403684 | [1] | UNIT | |
| 27. | 9748726 | [1] | BRACKET | |
| 28. | J900660 | [2] | BOLT | |
| 29. | A590906 | [2] | WASHER;SPRING | |
| 30. | A590106 | [2] | WASHER;PLANE | |
| 31. | 4252767 | [5] | BRACKET | |
| 32. | J900610 | [5] | BOLT | |
| 33. | A590906 | [5] | WASHER;SPRING | |
| 35. | 4361302 | [1] | SPEAKER | |
| 36. | 4364504 | [1] | SPEAKER;GRILLE | |
| 37. | J680414 | [4] | SCREW;SEMS | |
