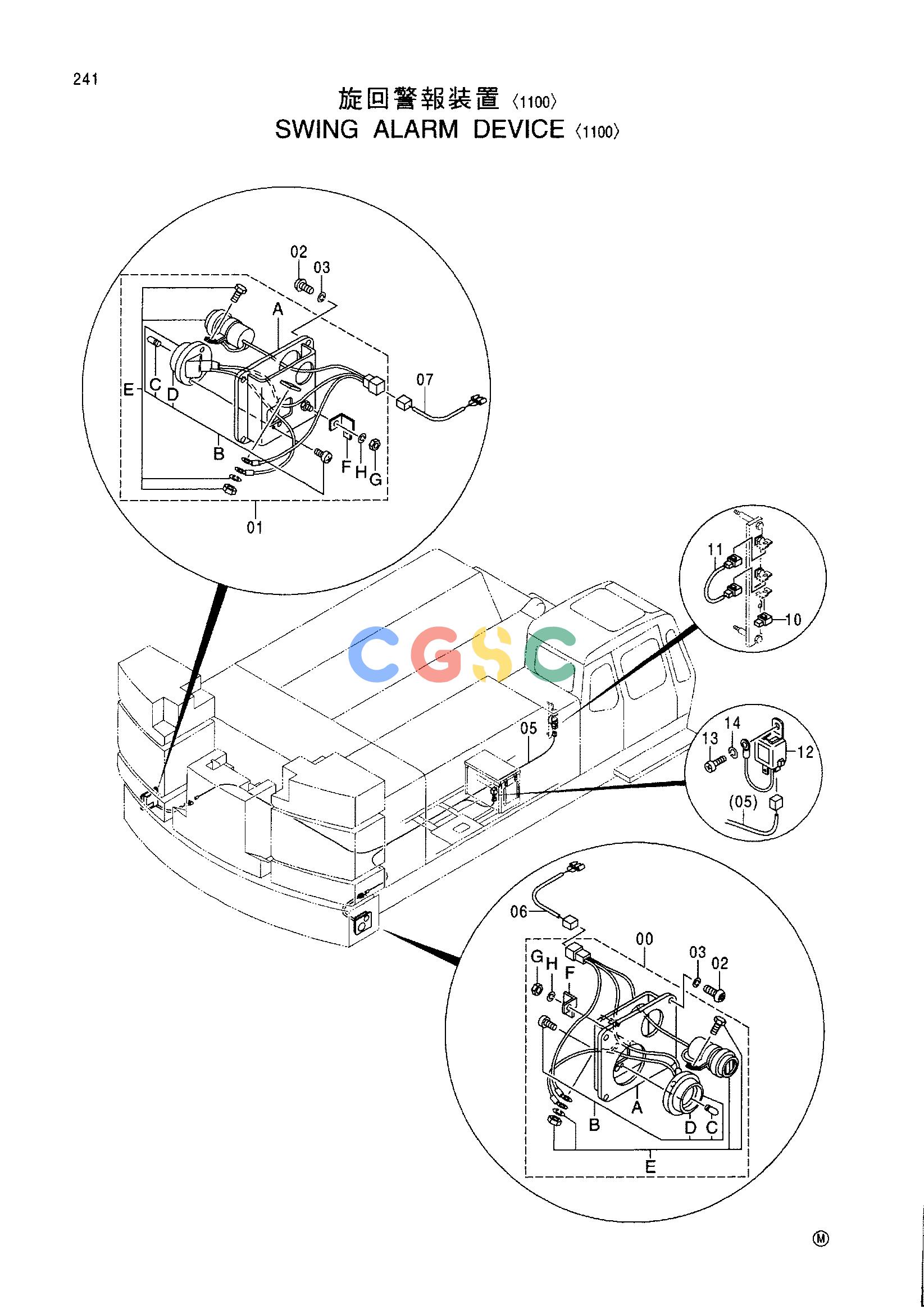

日立零件查询（CX1000）SWING ALARM DEVICE <1100> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
986 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 7036651 | [1] | LAMP;SIDE ASS'Y | |
| 00A. | 8076482 | [1] | PANEL;R | |
| 00B. | 4123644 | [1] | LAMP | |
| 00C. | 4174814 | [1] | BULB | |
| 00D. | 4182178 | [1] | LENS | |
| 00E. | 4020830 | [1] | BUZZER | |
| 00F. | 4252767 | [1] | BRACKET | |
| 00G. | M500605 | [1] | NUT | |
| 00H. | A590906 | [1] | WASHER;SPRING | |
| 01. | 7036652 | [1] | LAMP;SIDE ASS'Y | |
| 01A. | 8076483 | [1] | PANEL;L | |
| 01B. | 4123645 | [1] | LAMP | |
| 01C. | 4174814 | [1] | BULB | |
| 01D. | 4182178 | [1] | LENS | |
| 01E. | 4020830 | [1] | BUZZER | |
| 01F. | 4336874 | [1] | BRACKET | |
| 01G. | M500605 | [1] | NUT | |
| 01H. | A590906 | [1] | WASHER;SPRING | |
| 02. | 4389283 | [8] | BOLT | |
| 03. | A590912 | [8] | WASHER;SPRING | |
| 05. | 3087710 | [1] | HARNESS;WIRE | |
| 06. | 4421704 | [1] | HARNESS;WIRE | |
| 07. | 4421705 | [1] | HARNESS;WIRE | |
| 10. | 4382080 | [1] | CONNECTOR | |
| 11. | 4418187 | [1] | HARNESS;WIRE | |
| 12. | 4175981 | [1] | FLASHER | |
| 13. | M430610 | [1] | SCREW | |
| 14. | A590906 | [1] | WASHER;SPRING | |
