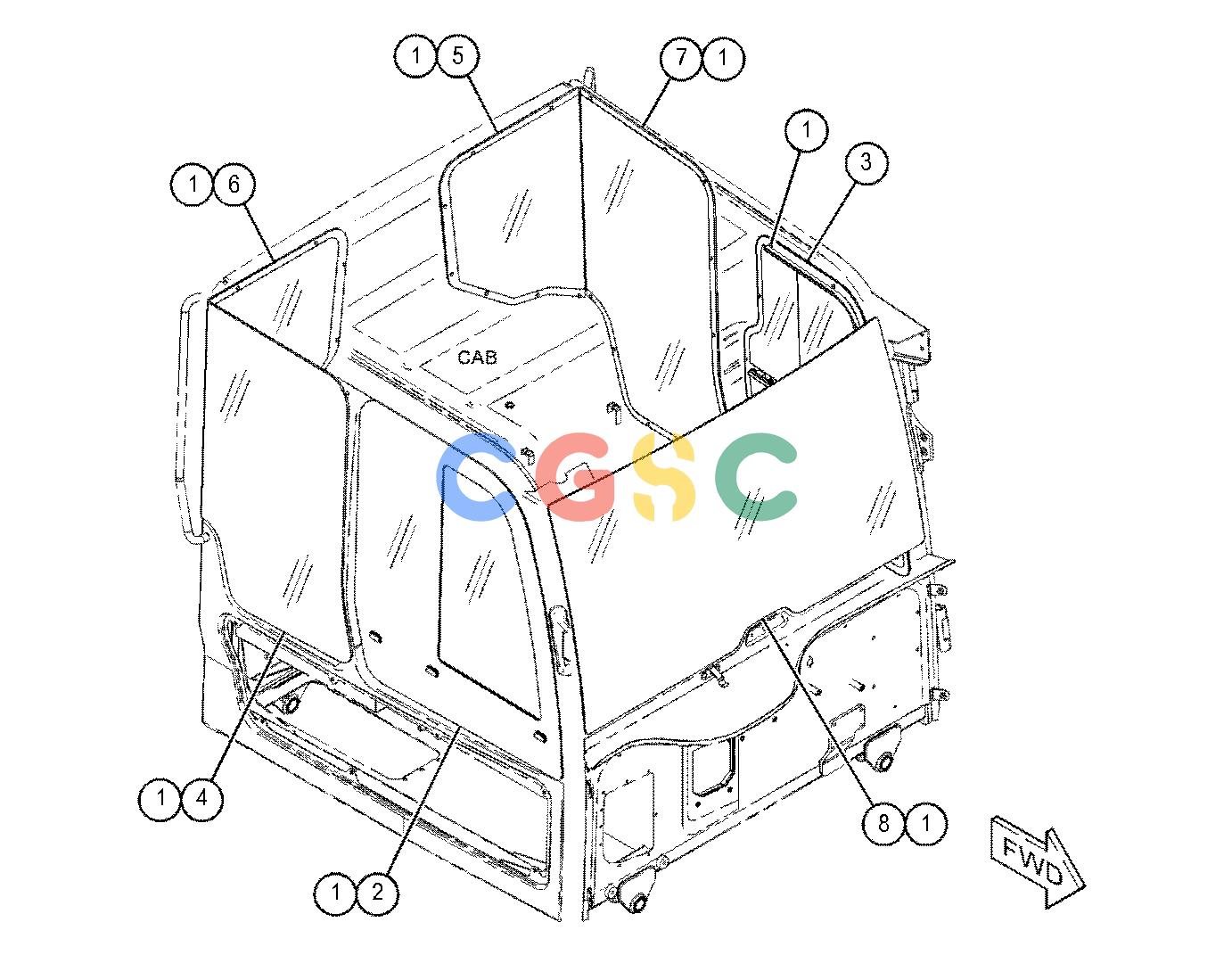

卡特零件查询（730） 480-7001: WINDOW GP-CAB
广数供应链运营团队, 15 02月, 2025，浏览：
383 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 110-7524B | [66] | BUTTON | |
| 2. | 480-6970 | [1] | WINDOW AS-CAB(LH) | |
| | | [1] | GLASS AS-SLIDING |
| | 480-6989 | [2] | GUIDE | |
| | 480-6990 | [3] | COVER | |
| | 500-5942 | [1] | LATCH AS | |
| 3. | 480-6986 | [1] | WINDOW AS-CAB(RH) | |
| | 480-6987 | [1] | GLASS AS-SLIDING | |
| | 480-6988 | [1] | LATCH AS | |
| | 480-6989 | [2] | GUIDE | |
| | 480-6990 | [3] | COVER | |
| 4. | 508-0791 | [1] | GLASS(RH) | |
| 5. | 508-0789 | [1] | GLASS-REAR | |
| 6. | 508-0790 | [1] | GLASS-REAR | |
| 7. | 508-0788 | [1] | GLASS(LH) | |
| 8. | 508-0792 | [1] | GLASS-FRONT | |
| | B | | USE AS REQUIRED |
