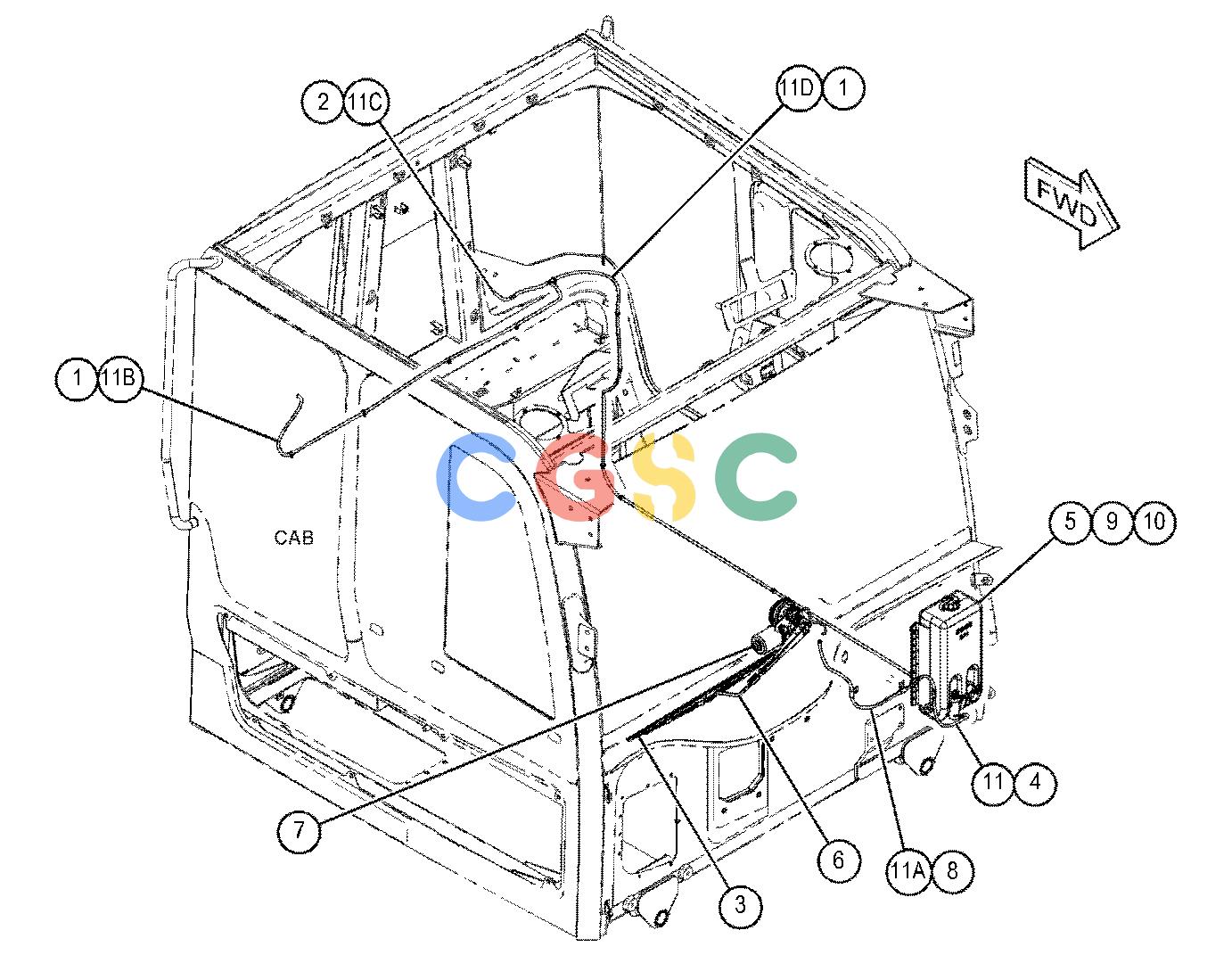

卡特零件查询（730） 480-7002: WIPER & WASHER GP-WINDOW
广数供应链运营团队, 15 02月, 2025，浏览：
402 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [12] | STRAP-CABLE | |
| 2. | 6K-9632 | [1] | TEE | |
| 3. | 320-1390 | [1] | BLADE-WIPER(558-MM) | |
| 4. | 469-5745 | [1] | VALVE-CHECK | |
| 5. | 480-6992Y | [1] | TANK GP-WINDOW WASHER | |
| 6. | 480-6995 | [1] | ARM GP-WIPER | |
| | 194-5171E | | HOSE(43-CM) | |
| | 305-9192 | [1] | NOZZLE AS-WASHER | |
| 7. | 480-6999Y | [1] | MOTOR GP-WINDOW WIPER | |
| 8. | 5P-9085 | [2] | CLIP(LOOP) | |
| 9. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 10. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 11. | 144-0195E | | HOSE(23.2-CM) | |
| 11A. | 144-0195E | | HOSE(70.4-CM) | |
| 11B. | 144-0195E | | HOSE(145.5-CM) | |
| 11C. | 144-0195E | | HOSE(23.2-CM) | |
| 11D. | 144-0195E | | HOSE(266-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
