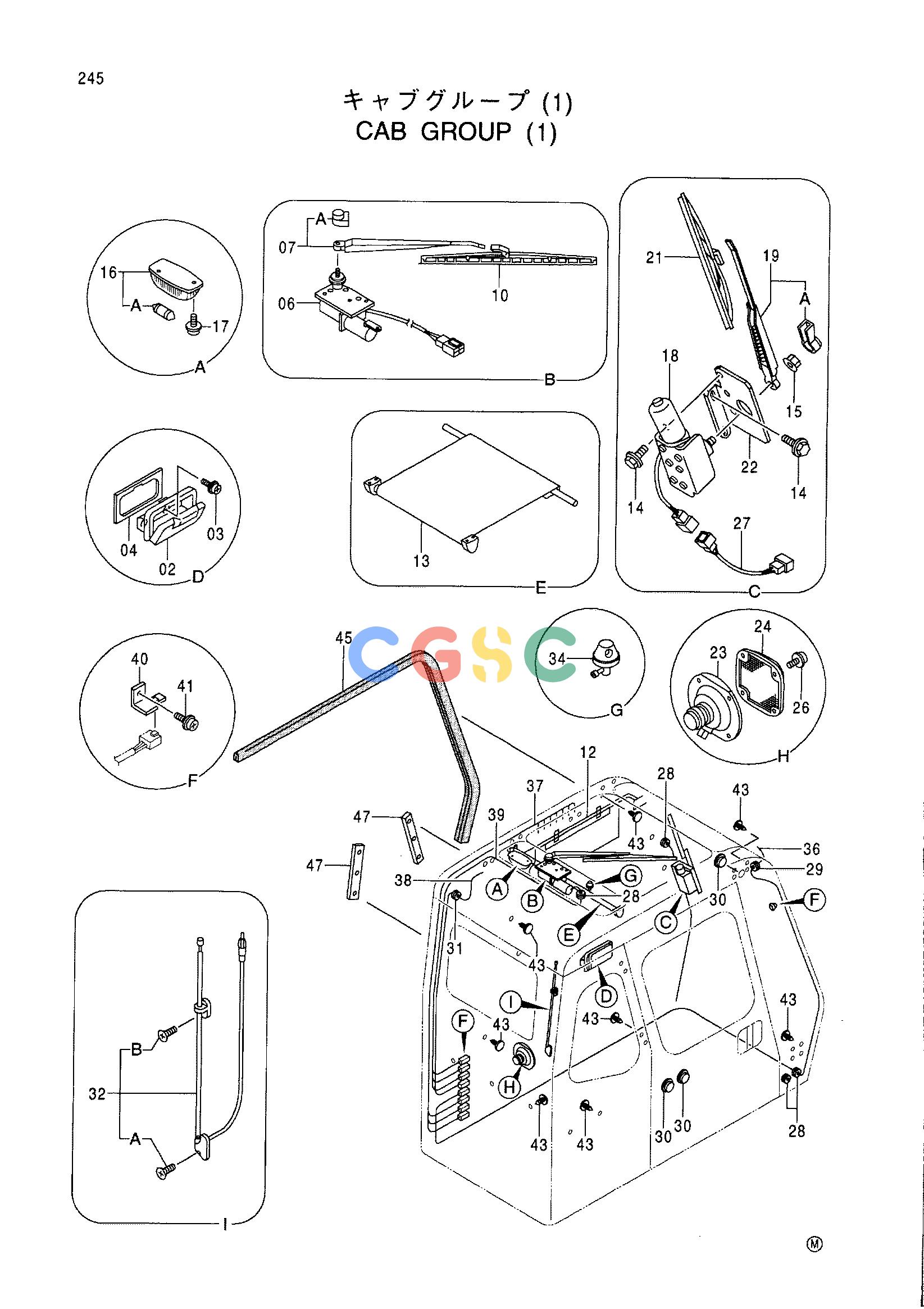

日立零件查询（CX1000）CAB GROUP (1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
344 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 02. | 4298985 | [1] | ASHTRAY | |
| 03. | J460512 | [2] | SCREW;SEMS | |
| 04. | 4337163 | [1] | SPACER | |
| 06. | 4339078 | [1] | WIPER-MOTOR | |
| 07. | 4335340 | [1] | WIPER-ARM | |
| 07A. | 4311679 | [1] | COVER | |
| 10. | 4339084 | [1] | WIPER-BLADE | |
| 12. | 4341662 | [1] | SUNVISOR | |
| 13. | 4341665 | [1] | SUNSHADE | |
| 14. | J020820 | [5] | BOLT;SEMS | |
| 15. | M669008 | [1] | NUT;C-SW | |
| 16. | 4187082 | [1] | LAMP;ROOM | |
| 16A. | 4187083 | [1] | BULB | |
| 17. | J460514 | [2] | SCREW;SEMS | |
| 18. | 4369163 | [1] | WIPER-MOTOR | |
| 19. | 4335340 | [1] | WIPER-ARM | |
| 19A. | 4311679 | [1] | COVER | |
| 21. | 4257132 | [1] | WIPER-BLADE | |
| 22. | 8072383 | [1] | BRACKET | |
| 23. | 4361302 | [2] | SPEAKER | |
| 24. | 4364504 | [2] | GRILLE | |
| 26. | J680414 | [8] | SCREW;SEMS | |
| 27. | 4369424 | [1] | HARNESS;WIRE | |
| 28. | 4335429 | [4] | BUSHING;RUBBER | |
| 29. | 4335430 | [1] | BUSHING;RUBBER | |
| 30. | 4341661 | [3] | BUSHING;RUBBER | |
| 31. | 4341676 | [1] | BUSHING;RUBBER | |
| 32. | 4280527 | [1] | ANTENNA | |
| 32A. | 4210412 | [1] | SCREW | |
| 32B. | 4210413 | [1] | SCREW | |
| 34. | 4335374 | [2] | NOZZLE | |
| 36. | 4402403 | [1] | HARNESS;WIRE | |
| 37. | 4341713 | [1] | HARNESS;WIRE | |
| 38. | 4341714 | [1] | HARNESS;WIRE | |
| 39. | 4341731 | [1] | HARNESS;WIRE | |
| 40. | 4252767 | [8] | BRACKET | |
| 41. | J460616 | [8] | SCREW;SEMS | |
| 43. | 4341672 | [30] | CLIP | |
| 45. | 4382662 | [1] | TRIM;SEAL | |
| 47. | 4386785 | [2] | PROTECTOR | |
