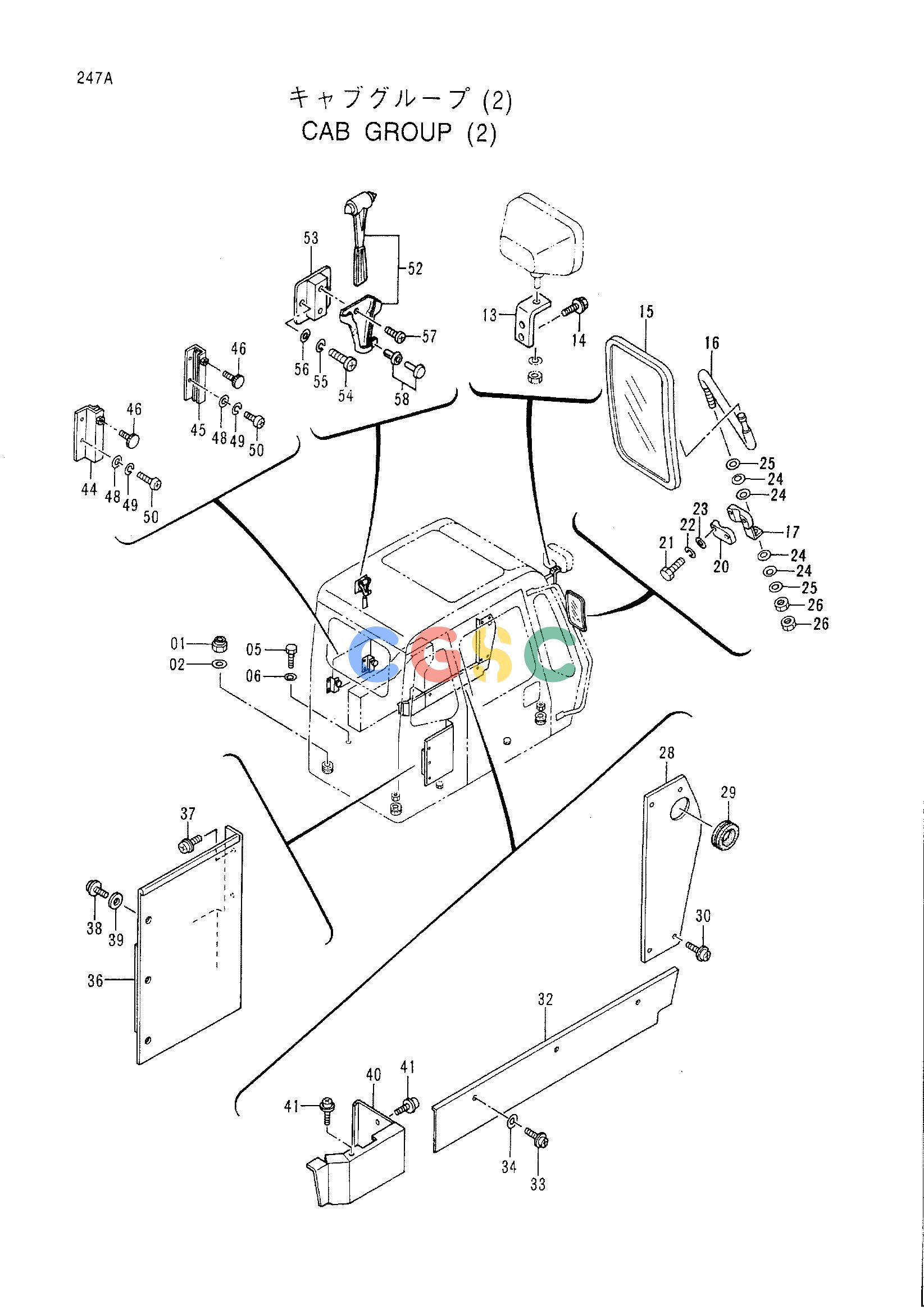

日立零件查询（CX1000）CAB GROUP (2) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
900 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | M660016 | [4] | NUT;U | |
| 02. | J222016 | [4] | WASHER | |
| 05. | J901030 | [5] | BOLT | |
| 06. | J222010 | [5] | WASHER | |
| 13. | 4315925 | [1] | STAY | |
| 14. | J020820 | [2] | BOLT;SEMS | |
| 15. | 4165676 | [1] | MIRROR | |
| 16. | 4365713 | [1] | STAY | |
| 17. | 9746220 | [1] | BRACKET | |
| 20. | 4201441 | [1] | CLAMP | |
| 21. | J870845 | [2] | BOLT | |
| 22. | J251008 | [2] | WASHER;SPRING | |
| 23. | J250008 | [2] | WASHER;PLANE | |
| 24. | 4172172 | [4] | SPRING;DISC | |
| 25. | A590112 | [2] | WASHER;PLANE | |
| 26. | J950012 | [2] | NUT | |
| 28. | 8060083 | [1] | COVER | |
| 29. | 4339745 | [1] | BUSHING;RUBBER | |
| 30. | J680620 | [4] | SCREW;SEMS | |
| 32. | 3070248 | [1] | COVER | |
| 33. | J450616 | [3] | SCREW;SEMS | |
| 34. | A590106 | [3] | WASHER;PLANE | |
| 36. | 2038444 | [1] | POCKET | |
| 37. | J680616 | [2] | SCREW;SEMS | |
| 38. | J670616 | [3] | SCREW;SEMS | |
| 39. | 4144838 | [3] | WASHER | |
| 40. | 8063957 | [1] | COVER | |
| 41. | J460616 | [2] | SCREW;SEMS | |
| 44. | 8061140 | [1] | BRACKET | |
| 45. | 8061141 | [1] | BRACKET | |
| 46. | 4342026 | [2] | KNOB | |
| 48. | A590108 | [4] | WASHER;PLANE | |
| 49. | A590908 | [4] | WASHER;SPRING | |
| 50. | M430816 | [4] | SCREW | |
| 52. | 4355016 | [1] | HAMMER | |
| 53. | 9745483 | [1] | BRACKET | |
| 54. | J850814 | [2] | SCREW | |
| 55. | J251008 | [2] | WASHER;SPRING | |
| 56. | J250008 | [2] | WASHER;PLANE | |
| 57. | J650310 | [2] | SCREW | |
| 58. | 4355015 | [1] | RIVET | |
