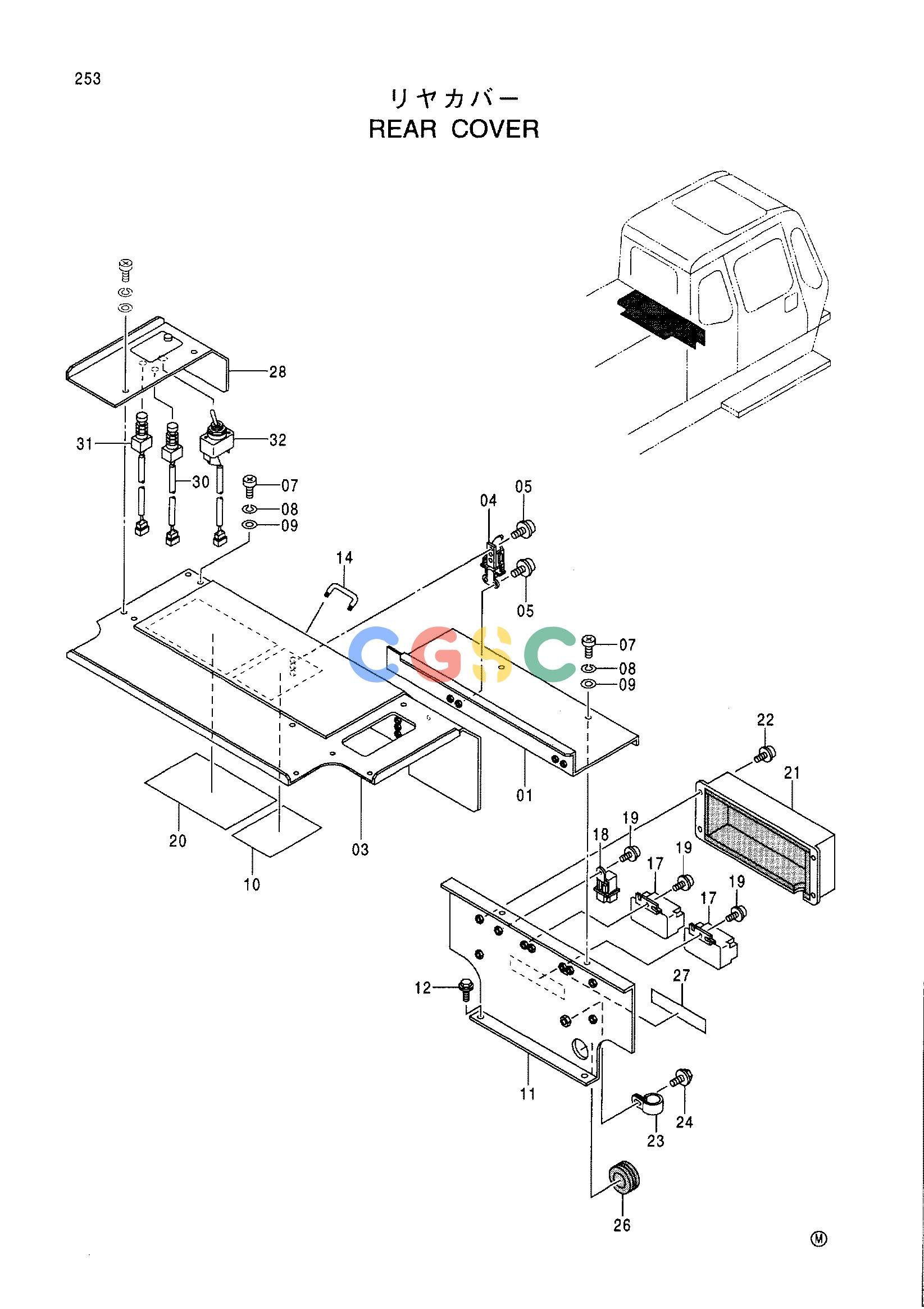

日立零件查询（CX1000）REAR COVER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
953 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 8060044 | [1] | COVER | |
| 03. | 6014447 | [1] | COVER | |
| 04. | 4339649 | [2] | CATCH | |
| 05. | J460412 | [10] | SCREW;SEMS | |
| 07. | J850820 | [10] | SCREW | |
| 08. | J251008 | [10] | WASHER;SPRING | |
| 09. | J250008 | [10] | WASHER;PLANE | |
| 10. | 3083452 | [1] | NAME-PLATE | |
| 11. | 8059099 | [1] | PLATE | |
| 12. | J011030 | [2] | BOLT;SEMS | |
| 14. | 4339647 | [1] | HANDLE | |
| 17. | 4239944 | [2] | RELAY | |
| 18. | 4251588 | [1] | RELAY | |
| 19. | J460616 | [5] | SCREW;SEMS | |
| 20. | 3092130 | [1] | NAME-PLATE | |
| 20. | 3092130 | [1] | NAME-PLATE | |
| 20. | 3092130 | [1] | NAME-PLATE | |
| 20. | 3092130 | [1] | NAME-PLATE | |
| 20. | 3093281 | [1] | NAME-PLATE | |
| 20. | 3093281 | [1] | NAME-PLATE | |
| 20. | 3093281 | [1] | NAME-PLATE | |
| 21. | 8061368 | [1] | COVER | |
| 22. | J680616 | [4] | SCREW;SEMS | |
| 23. | 4190273 | [1] | CLIP | |
| 24. | J021025 | [1] | BOLT;SEMS | |
| 26. | 4210485 | [1] | BUSHING;RUBBER | |
| 27. | 4343529 | [1] | NAME-PLATE | |
| 28. | 7033410 | [1] | COVER | |
| 30. | 4322334 | [1] | SWITCH | |
| 31. | 4322325 | [1] | SWITCH | |
| 32. | 4388133 | [1] | SWITCH | |
