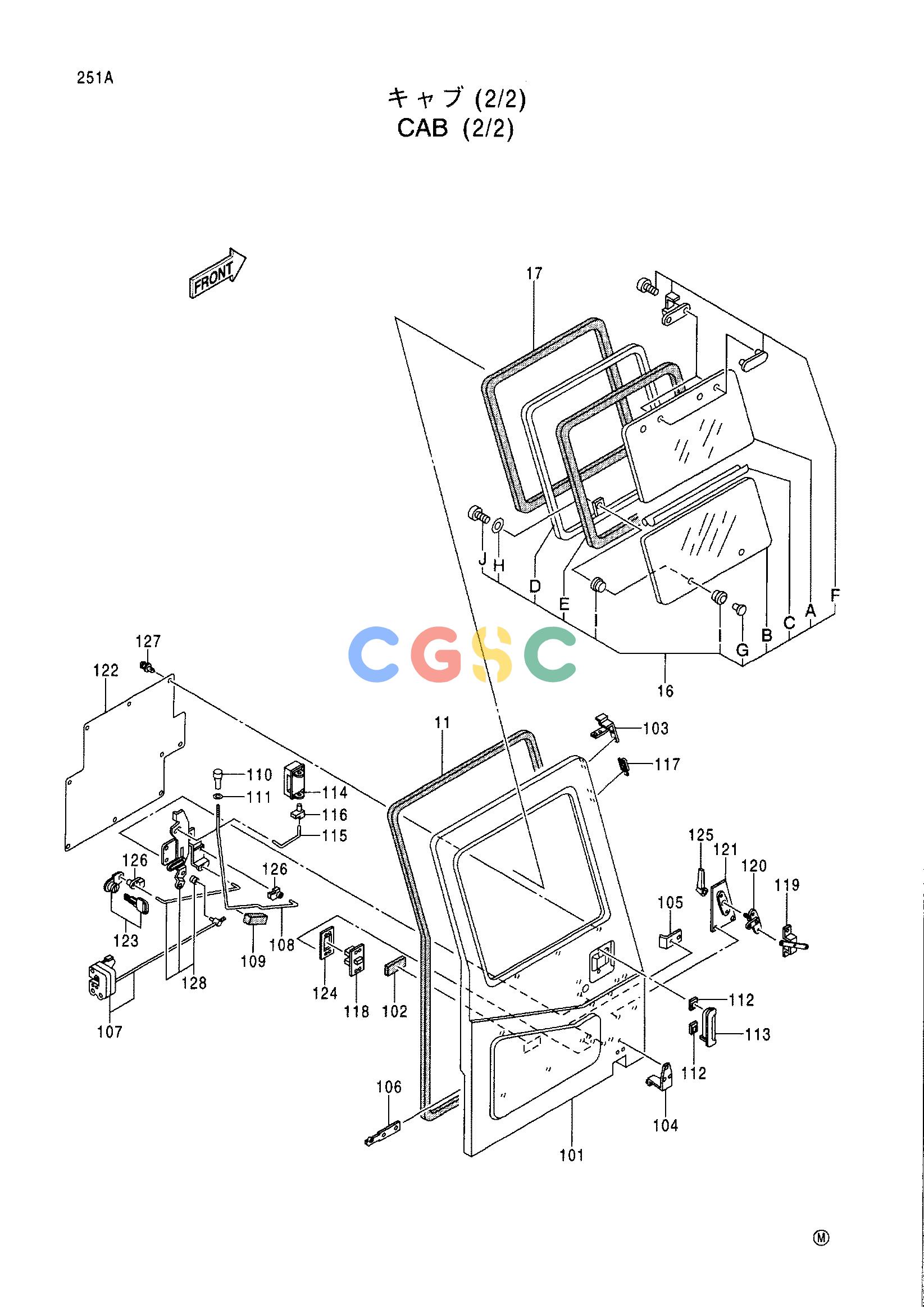

日立零件查询（CX1000）CAB (2/2) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
434 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4338172 | [1] | CAB ASS'Y (2/2) | This PART NO. consists of all parts shown in CAB (1/2) to (2/2). |
| 11-1. | 4436871 | [1] | DOOR;SLIDE ASS'Y | |
| 11. | 4345189 | [1] | WEATHER-STRIP | |
| 16. | 4382193 | [1] | SASH | |
| 16A. | 4382184 | [1] | GLASS | |
| 16B. | 4382183 | [1] | GLASS | |
| 16C. | 4345201 | [1] | WEATHER-STRIP | |
| 16D. | 4345335 | [1] | FRAME | |
| 16E. | 4345336 | [1] | GLASS-RUN | |
| 16F. | 4345334 | [2] | LOCK | |
| 16G. | 4345337 | [2] | HOLDER | |
| 16H. | 4350070 | [2] | WASHER | |
| 16I. | 4350071 | [4] | PACKING | |
| 16J. | 4350178 | [2] | SCREW | |
| 17. | 4345195 | [1] | WELT | |
| 101. | 4430421 | [1] | DOOR;SLIDE | |
| 102. | 4430412 | [1] | PAD | |
| 103. | 4430375 | [1] | ROLLER;UPPER | |
| 104. | 4430377 | [1] | ROLLER;LOWER | |
| 105. | 4430379 | [1] | STOPPER | |
| 106. | 4430380 | [1] | ROLLER | |
| 107. | 4430381 | [1] | LOCK;DOOR | |
| 108. | 4430383 | [1] | ROD | |
| 109. | 4430384 | [1] | PAD | |
| 110. | 4430386 | [1] | KNOB | |
| 111. | 4430387 | [1] | WASHER | |
| 112. | 4430388 | [2] | SEAL | |
| 113. | 4430389 | [1] | HANDLE;OUTER | |
| 114. | 4430391 | [1] | HANDLE;INNER | |
| 115. | 4430392 | [1] | ROD | |
| 116. | 4430393 | [1] | HOLDER | |
| 117. | 4430394 | [2] | GUIDE | |
| 118. | 4430396 | [1] | LOCK | |
| 119. | 4430397 | [1] | LEVER;LOCK | |
| 120. | 4430398 | [1] | LEVER | |
| 121. | 4430399 | [1] | COVER | |
| 122. | 4430400 | [1] | COVER | |
| 123. | 4430401 | [1] | KEY | |
| 124. | 4430402 | [1] | SEAL | |
| 125. | 4430404 | [1] | HANDLE | |
| 126. | 4430405 | [2] | CLIP | |
| 127. | 4459786 | [9] | CLIP | |
| 128. | 4462548 | [1] | LEVER;LOCK | |
