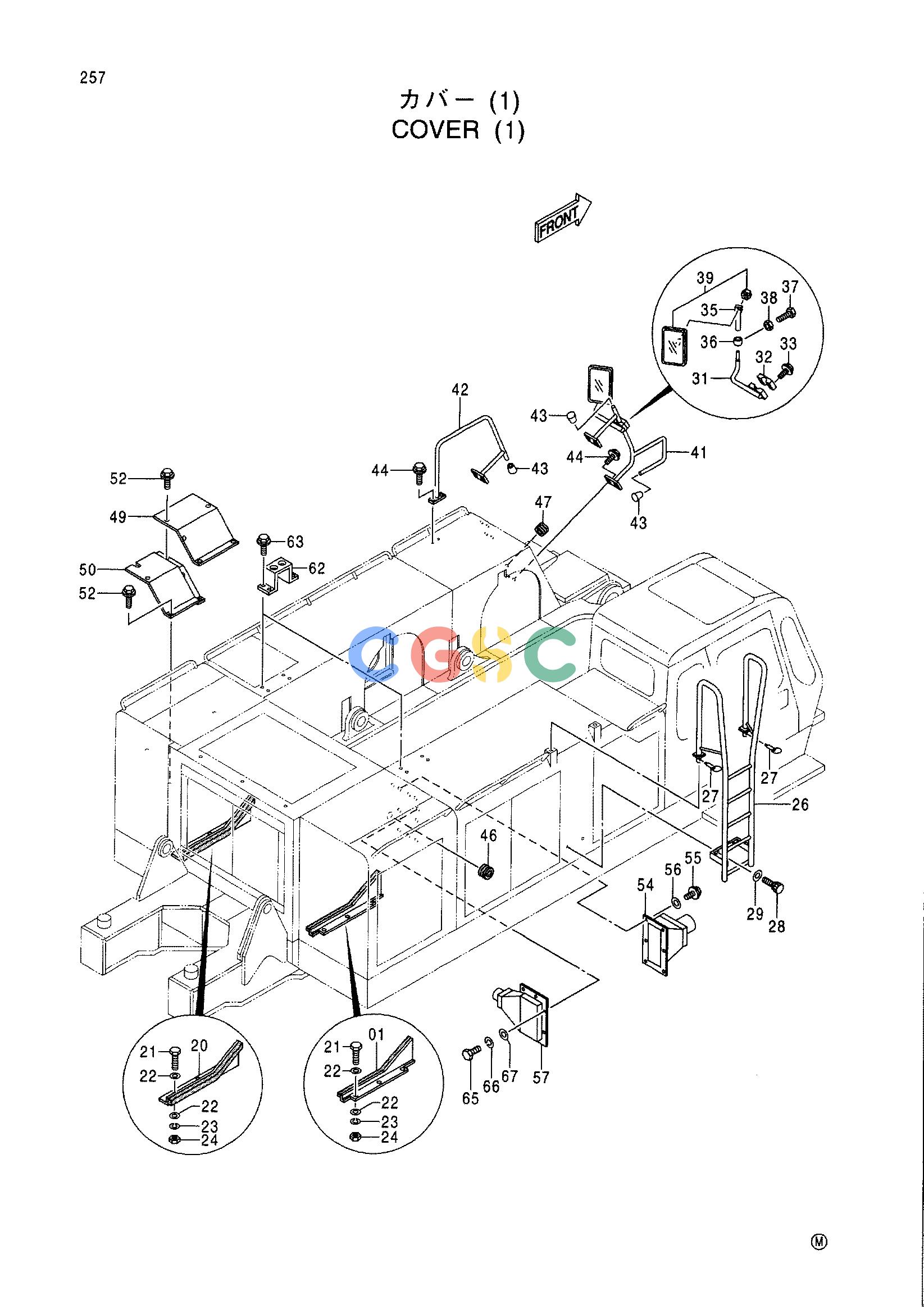

日立零件查询（CX1000）COVER (1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
975 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 8066113 | [1] | COVER | |
| 20. | 8066114 | [1] | COVER | |
| 21. | J901030 | [6] | BOLT | |
| 22. | A590110 | [12] | WASHER;PLANE | |
| 23. | A590910 | [6] | WASHER;SPRING | |
| 24. | J950010 | [6] | NUT | |
| 26. | 7033204 | [1] | LADDER | |
| 27. | 4001834 | [2] | PIN;RING | |
| 28. | 4369912 | [2] | KNOB | |
| 29. | J217083 | [2] | WASHER | |
| 31. | 8076807 | [1] | STAY | |
| 32. | 4201441 | [1] | CLAMP | |
| 33. | J020845 | [2] | BOLT;SEMS | |
| 35. | 4381336 | [1] | STAY | |
| 36. | 4381903 | [1] | JOINT | |
| 37. | J900820 | [1] | BOLT | |
| 38. | M500807 | [1] | NUT | |
| 39. | 4152892 | [1] | MIRROR | |
| 41. | 8068880 | [1] | HANDRAIL | |
| 42. | 8068881 | [1] | HANDRAIL | |
| 43. | 4094101 | [3] | CAP | |
| 44. | J021025 | [8] | BOLT;SEMS | |
| 46. | 94-2816 | [1] | BUSHING;RUBBER | |
| 47. | 94-2809 | [1] | BUSHING;RUBBER | |
| 49. | 3082654 | [1] | COVER(1) | |
| 50. | 8072600 | [1] | COVER(2) | |
| 52. | J031030 | [7] | BOLT;SEMS | |
| 54. | 7034836 | [1] | DUCT;AIR | |
| 55. | J011022 | [6] | BOLT;SEMS | |
| 56. | A590110 | [6] | WASHER;PLANE | |
| 57. | 7033819 | [1] | DUCT;AIR | |
| 62. | 4369708 | [2] | BRACKET | |
| 63. | J011025 | [8] | BOLT;SEMS | |
| 65. | J901016 | [6] | BOLT | |
| 66. | A590910 | [6] | WASHER;SPRING | |
| 67. | A590110 | [6] | WASHER;PLANE | |
