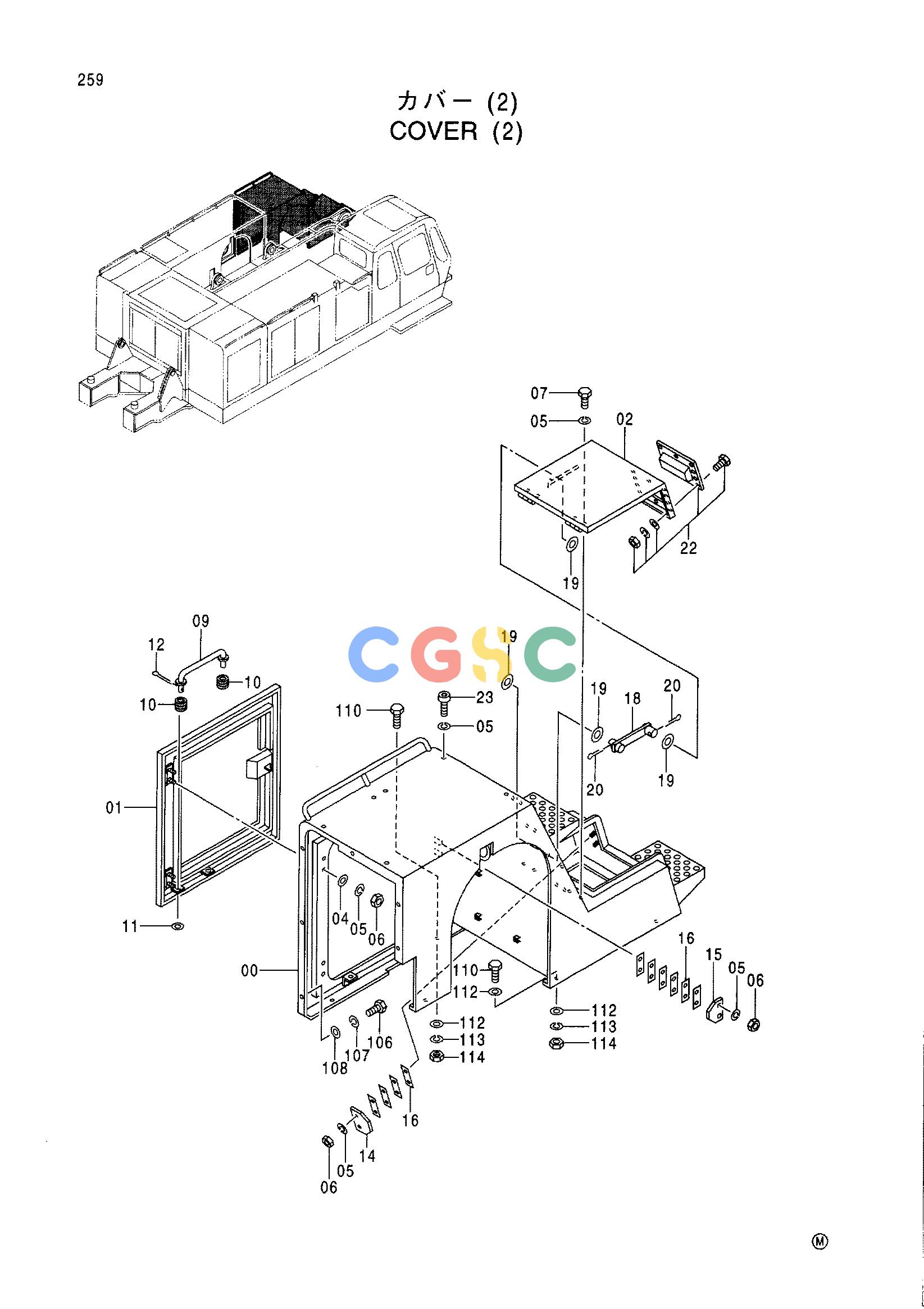

日立零件查询（CX1000）COVER (2) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
569 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 5006308 | [1] | COVER | |
| 01. | 7031694 | [1] | DOOR | |
| 02. | 7034832 | [1] | ROOF | |
| 04. | A590110 | [4] | WASHER;PLANE | |
| 05. | A590910 | [16] | WASHER;SPRING | |
| 06. | J950010 | [8] | NUT | |
| 07. | J901030 | [4] | BOLT | |
| 09. | 9742293 | [1] | STAY | |
| 10. | 4330808 | [2] | BUSHING;RUBBER | |
| 11. | A590108 | [1] | WASHER;PLANE | |
| 12. | A762013 | [1] | PIN;SPLIT | |
| 14. | 4403191 | [1] | LOCK | |
| 15. | 4330980 | [1] | LOCK | |
| 16. | 4330984 | [10] | SHIM | |
| 18. | 9750457 | [1] | STAY | |
| 19. | A590112 | [4] | WASHER;PLANE | |
| 20. | A762018 | [2] | PIN;SPLIT | |
| 22. | 4369904 | [1] | CATCH | |
| 23. | 4330985 | [4] | BOLT | |
| 106. | J901025 | [6] | BOLT | |
| 107. | A590910 | [6] | WASHER;SPRING | |
| 108. | A590110 | [6] | WASHER;PLANE | |
| 110. | J901230 | [6] | BOLT | |
| 112. | 449490 | [6] | WASHER | |
| 113. | A590912 | [6] | WASHER;SPRING | |
| 114. | J950012 | [6] | NUT | |
