斗山零件查询WATER PUMP & COOLING FAN SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
125 次

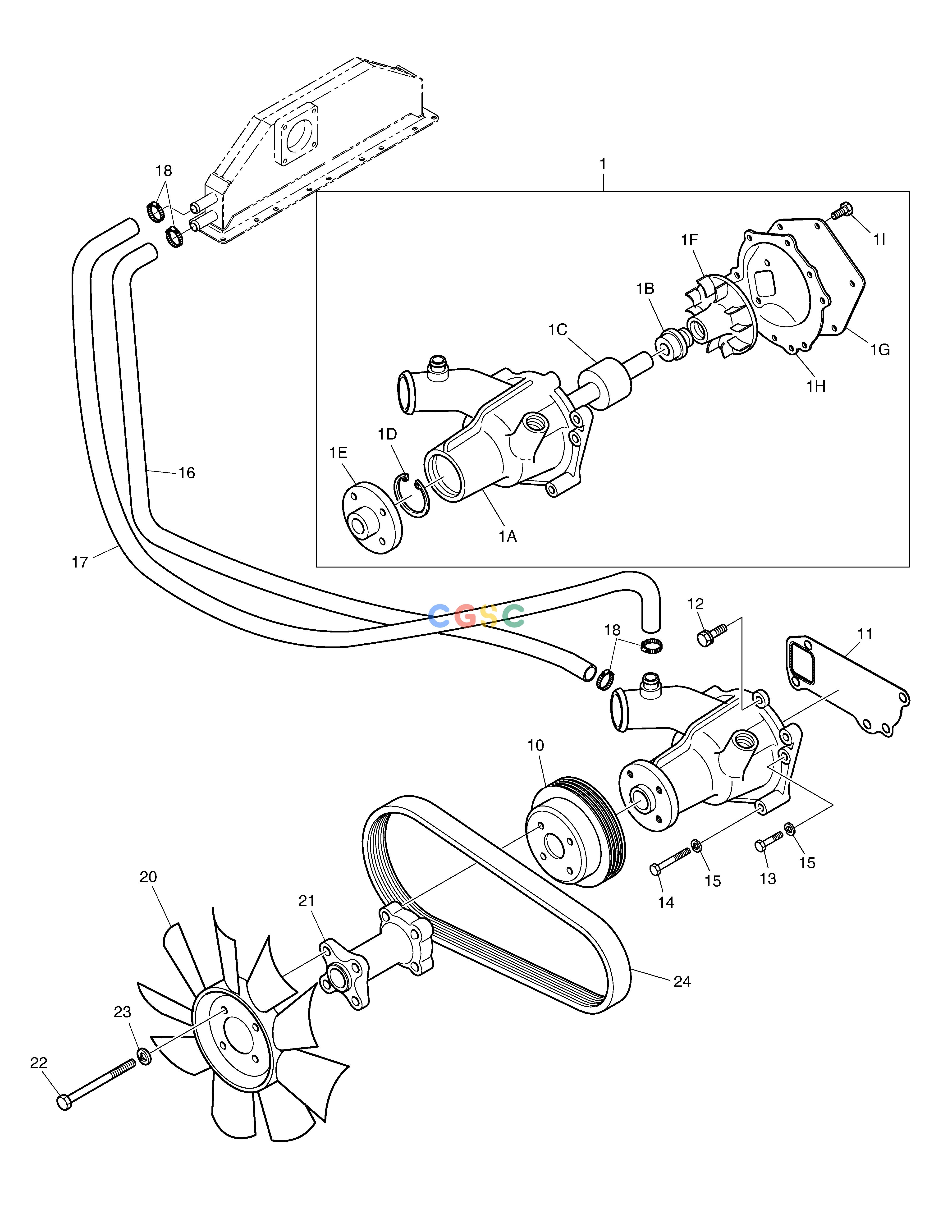

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.06500-6402B
|
[1] |
WATER PUMP ASS'Y
|
65.06500-6402C
|
| 1. |
65.06500-6402C
|
[1] |
WATER PUMP ASS`Y
|
|
| 10. |
65.06606-0021
|
[1] |
PULLEY;FAN
|
|
| 11. |
65.06901B0002
|
[1] |
GASKET;WATER PUMP
|
|
| 12. |
06.01943-3218
|
[1] |
BOLT ASS`Y M10X1.25X35
|
|
| 13. |
06.01493-4212
|
[2] |
BOLT M10X1.25X65
|
|
| 14. |
06.01493-4215
|
[1] |
BOLT M10X1.25X80
|
|
| 15. |
06.16731-2108
|
[3] |
WASHER;SPRING
|
|
| 16. |
65.96301-0363
|
[1] |
HOSE;RUBBER
|
|
| 17. |
65.96301-0364
|
[1] |
HOSE;RUBBER
|
|
| 18. |
06.67020-0104
|
[4] |
CLAMP;HOSE
|
|
| 1A. |
65.06501-0217A
|
[1] |
. HOUSING
|
|
| 1B. |
65.06520-6007
|
[1] |
. SEAL;MECHANICAL
|
|
| 1C. |
65.93410-0027
|
[1] |
BEARING
|
65.93410-0087
|
| 1C. |
65.93410-0087
|
[1] |
. BEARING
|
|
| 1D. |
06.29020-0132
|
[1] |
. SNAP RING
|
|
| 1E. |
65.06504-0033
|
[1] |
. HUB;V-BELT PULLEY
|
|
| 1F. |
65.06506-0085A
|
[1] |
. IMPELLER
|
|
| 1G. |
65.06512-0016
|
[1] |
. COVER
|
|
| 1H. |
65.06901-0035A
|
[1] |
. GASKET
|
|
| 1I. |
06.04200-9009
|
[3] |
. SCREW;CROSS M8X20
|
|
| 20. |
65.06601-5068
|
[1] |
FAN;COOLING(9 BLADE)
|
|
| 21. |
65.06611-0137A
|
[1] |
FLANGE;FAN
|
|
| 22. |
06.01013-9127
|
[4] |
BOLT M8X120
|
|
| 23. |
06.16731-2107
|
[4] |
WASHER
|
|
| 24. |
65.96801-0141A
|
[1] |
BELT;POLY
|
|
