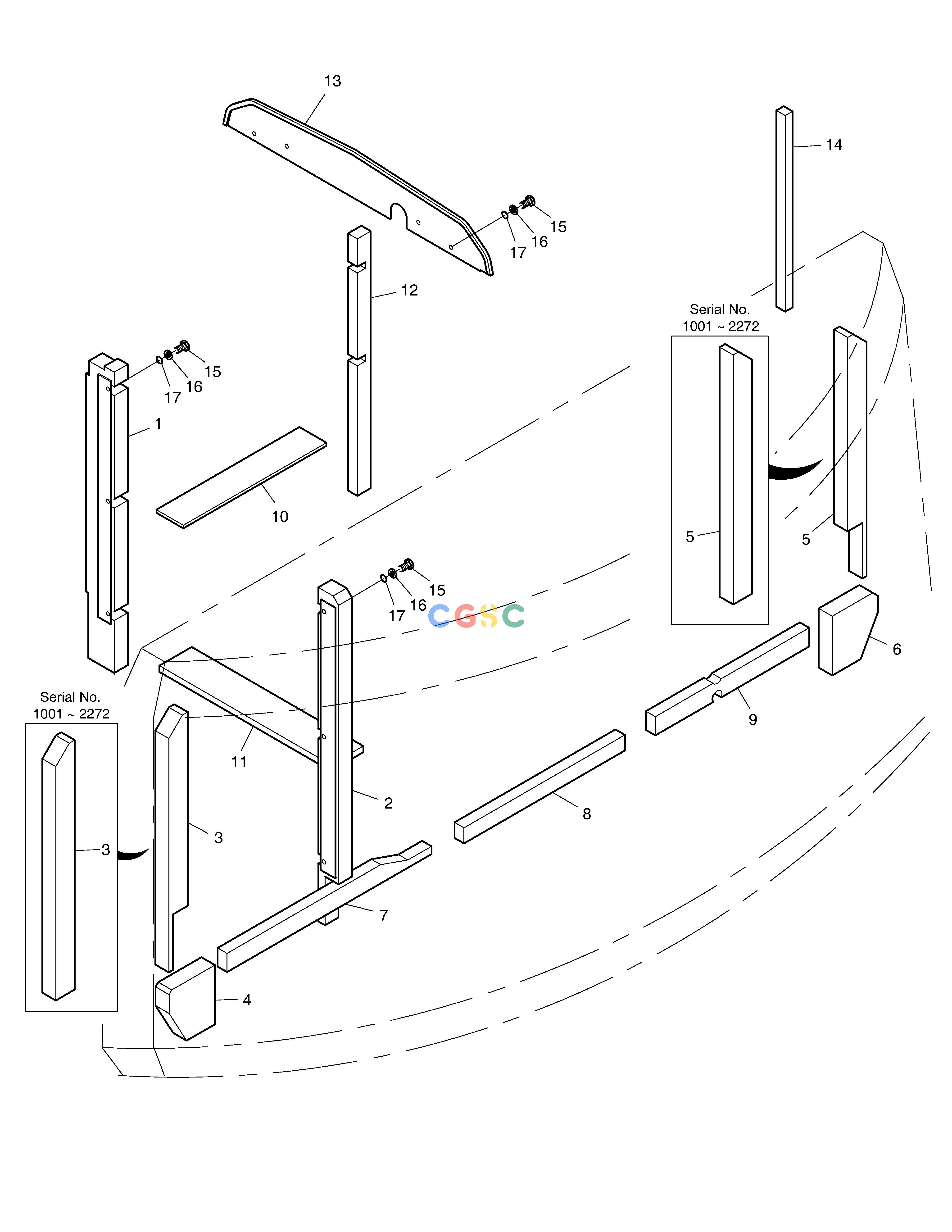

斗山零件查询ACOUSTIC FOAM SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
175 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
161-00528
|
[-] |
ACOUSTIC FOAM ASS'Y
|
|
| -. |
180102-00499
|
[-] |
|
|
| 1. |
621-02179
|
[1] |
FOAM;POLYURETHANE
|
|
| 10. |
2161-2165A
|
[1] |
FOAM;POLYURETHANE
|
|
| 11. |
2161-2151A
|
[1] |
FOAM;POLYURETHANE
|
|
| 12. |
161-00075
|
[1] |
FOAM;POLYURETHANE
|
|
| 13. |
621-02181A
|
[1] |
COVER
|
|
| 14. |
161-00045A
|
[1] |
FOAM;POLYURETHANE
|
|
| 15. |
S0508653
|
[10] |
BOLT
|
|
| 16. |
S5102503
|
[10] |
. WASHER
|
|
| 17. |
S5010513
|
[10] |
WASHER
|
|
| 2. |
621-02180
|
[1] |
FOAM;POLYURETHANE
|
|
| 3. |
2161-2499
|
[1] |
FOAM;POLYURETHANE
|
180102-00500
|
| 3. |
180102-00500
|
[1] |
|
|
| 4. |
2161-2172A
|
[1] |
FOAM;POLYURETHANE
|
|
| 5. |
2161-2500
|
[1] |
FOAM;POLYURETHANE
|
180102-00501
|
| 5. |
180102-00501
|
[1] |
|
|
| 6. |
2161-2174A
|
[1] |
FOAM;POLYURETHANE
|
|
| 7. |
2161-2501
|
[1] |
FOAM;POLYURETHANE
|
|
| 8. |
2161-2502
|
[1] |
FOAM;POLYURETHANE
|
|
| 9. |
2161-2503
|
[1] |
FOAM;POLYURETHANE
|
|
