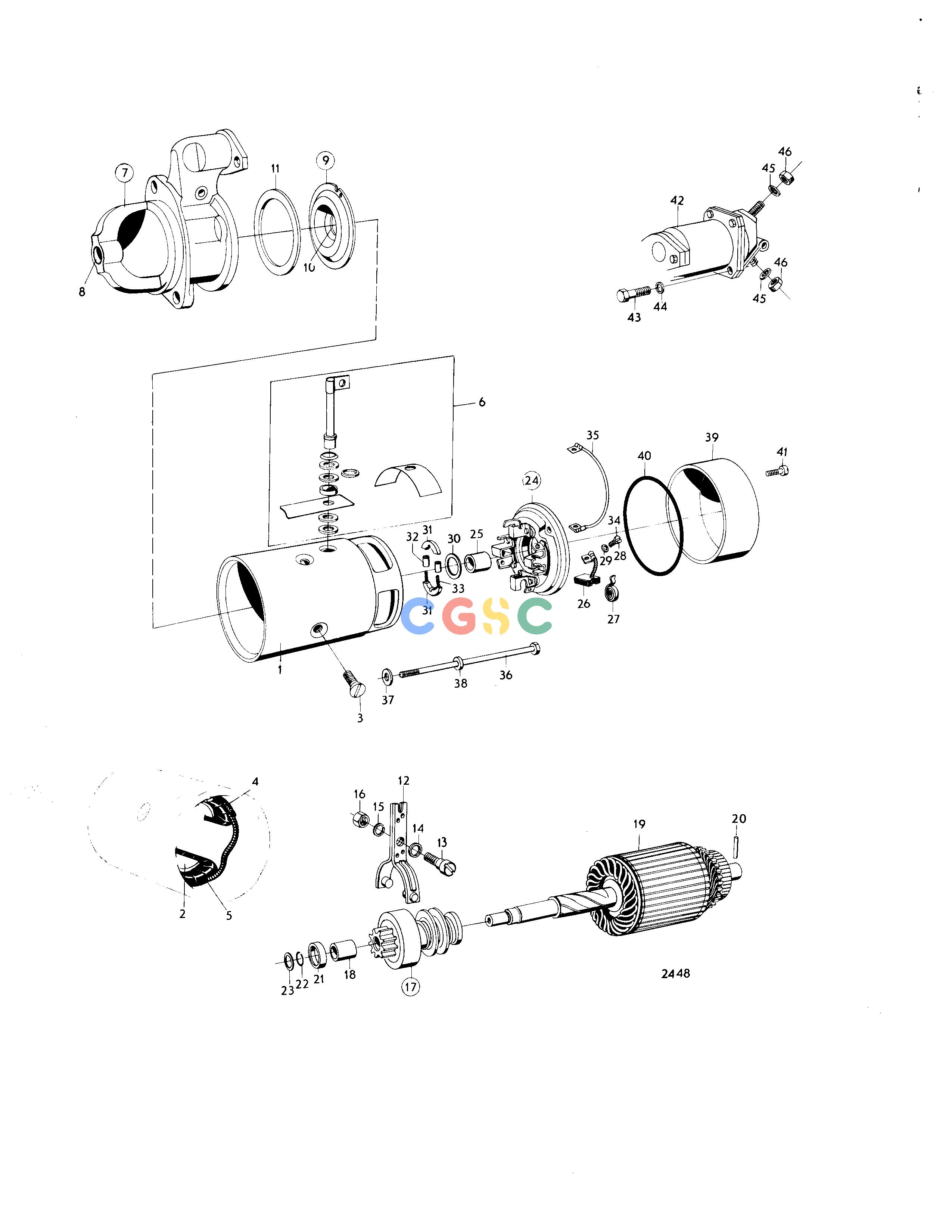

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BElectrical SystemStarter MotorEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
561 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
|
|
|
|
| 3. |
956130
|
[4] |
Cross recessed screw
|
|
| 4. |
243424
|
[1] |
Field winding
|
|
| 5. |
243425
|
[1] |
Field winding
|
|
| 6. |
243426
|
[1] |
Local part
|
|
| 7. |
243427
|
[1] |
Bearing shield
|
|
| 8. |
76603
|
[1] |
Bushing
|
|
| 9. |
243428
|
[1] |
Bearing
|
|
| 10. |
72483
|
[1] |
Bushing
|
|
| 11. |
243429
|
[1] |
Washer
|
|
| 12. |
243430
|
[1] |
Arm
|
|
| 13. |
72481
|
[1] |
Arm
|
|
| 14. |
120649
|
[1] |
Adjusting washer
|
TH=0.1mm
|
| 14. |
238834
|
[1] |
Adjusting washer
|
TH=0.3mm
|
| 15. |
941906
|
[1] |
Spring washer
|
|
| 16. |
955781
|
[1] |
Hexagon nut
|
|
| 17. |
243431
|
[1] |
Starter pinion
|
|
| 18. |
243436
|
[2] |
Bushing
|
|
| 19. |
243432
|
[1] |
Rotor
|
|
| 20. |
|
|
|
|
| 21. |
240332
|
[1] |
Ring
|
|
| 22. |
240333
|
[1] |
Lock ring
|
|
| 23. |
240610
|
[1] |
Adjusting washer
|
TH=0.2mm
|
| 23. |
120657
|
[1] |
Adjusting washer
|
TH=0.3mm
|
| 23. |
243433
|
[1] |
Washer
|
TH=1.0mm
|
| 24. |
243434
|
[1] |
Bearing
|
|
| 25. |
243437
|
[1] |
Bushing
|
|
| 26. |
233679
|
[1] |
Brush set
|
|
| 27. |
76601
|
[4] |
Spring
|
|
| 28. |
956059
|
[2] |
Cross recessed screw
|
|
| 29. |
955917
|
[2] |
Spring washer
|
|
| 30. |
120648
|
[1] |
Washer
|
|
| 31. |
76604
|
[2] |
Brake shoe
|
|
| 32. |
239547
|
[2] |
Bushing
|
|
| 33. |
76605
|
[2] |
Spring
|
|
| 34. |
956059
|
[2] |
Cross recessed screw
|
|
| 35. |
233872
|
[1] |
Link
|
|
| 36. |
|
|
|
|
| 37. |
86287
|
[2] |
Washer
|
|
| 38. |
941906
|
[2] |
Spring washer
|
|
| 39. |
241326
|
[1] |
Cover
|
|
| 40. |
241327
|
[1] |
Gasket
|
|
| 41. |
956073
|
[2] |
Cross recessed screw
|
|
| 42. |
243435
|
[1] |
Relay
|
|
| 43. |
956094
|
[2] |
Cross recessed screw
|
|
| 44. |
941906
|
[2] |
Spring washer
|
|
| 45. |
941907
|
[2] |
Spring washer
|
|
| 46. |
955782
|
[2] |
Hexagon nut
|
|
