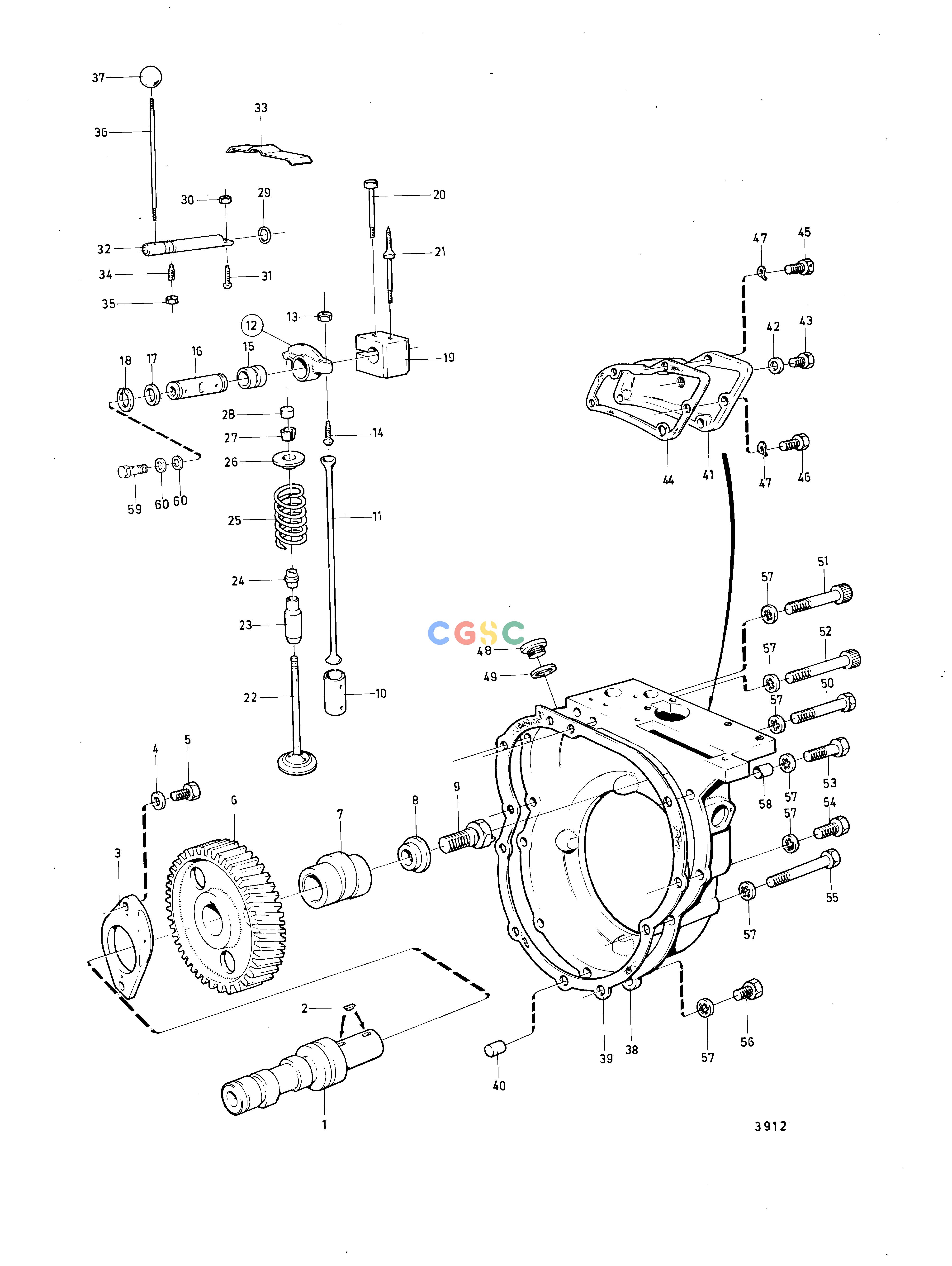

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BEngineCamshaft and Valve MechanismEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
144 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
833162
|
[1] |
Camshaft
|
|
| 2. |
910121
|
[2] |
Woodruff key
|
|
| 3. |
405079
|
[1] |
Flange
|
|
| 4. |
15256
|
[2] |
Washer
|
|
| 5. |
955296
|
[2] |
Hexagon screw
|
|
| 6. |
405026
|
[1] |
Gear
|
|
| 7. |
833485
|
[1] |
Cam disc
|
|
| 8. |
803348
|
[1] |
Guide washer
|
|
| 9. |
807031
|
[1] |
Screw
|
|
| 10. |
807393
|
[2] |
Tappet
|
|
| 11. |
403130
|
[2] |
Push rod
|
|
| 12. |
403561
|
[1] |
Rocker arm, intake
|
|
| 12. |
803247
|
[1] |
Rocker arm, exhaust
|
|
| 13. |
955800
|
[2] |
Hexagon nut
|
|
| 14. |
403155
|
[2] |
Ball stud
|
|
| 15. |
18146
|
[2] |
Bushing
|
|
| 16. |
833222
|
[1] |
Rocker arm shaft
|
|
| 17. |
191173
|
[4] |
Shim
|
TH=0.7mm
|
| 18. |
914452
|
[2] |
Snap ring
|
|
| 19. |
833223
|
[1] |
Bearing box
|
|
| 20. |
955300
|
[1] |
Hexagon screw
|
|
| 21. |
833569
|
[1] |
Screw
|
|
| 22. |
833188
|
[1] |
Inlet valve
|
|
| 22. |
829620
|
[1] |
Exhaust valve
|
Early production of exhaust valve + valve seal is replaced by 829620.
|
| 23. |
419653
|
[1] |
Valve guide, intake
|
|
| 23. |
829867
|
[1] |
Guide sleeve, exhaust
|
|
| 24. |
1306630
|
[1] |
Valve stem seal, intake
|
(833347)
|
| 25. |
829622
|
[2] |
Valve spring
|
(403387)
|
| 26. |
403314
|
[2] |
Valve spring washer
|
|
| 27. |
403315
|
[4] |
Lock
|
|
| 28. |
896580
|
[2] |
Valve cap
|
|
| 29. |
925053
|
[1] |
O-ring
|
|
| 30. |
955800
|
[1] |
Hexagon nut
|
|
| 31. |
403155
|
[1] |
Ball stud
|
|
| 32. |
|
|
|
Replaced by 1pc 833499 + 1pc 945292 + 1pc 940344., MO-18708
|
| 32. |
833499
|
[1] |
Shaft
|
MO 18709-
|
| 33. |
803604
|
[1] |
Spring
|
|
| 34. |
919118
|
[1] |
Set screw
|
|
| 35. |
955781
|
[1] |
Hexagon nut
|
|
| 36. |
897390
|
[1] |
Stud
|
MO-18708
|
| 36. |
945292
|
[1] |
Stud
|
MO 18709-
|
| 37. |
807042
|
[1] |
Ball
|
MO-18708
|
| 37. |
940344
|
[1] |
Wing nut
|
MO 18709-
|
| 38. |
833183
|
[1] |
Timing gear casing
|
|
| 39. |
803360
|
[1] |
Gasket
|
|
| 40. |
950586
|
[2] |
Pin
|
|
| 41. |
|
|
|
Replaced by 1pc 833766 + 1pc 957175 + 1pc 16322., MO-22018
|
| 41. |
833766
|
[1] |
Hatch
|
MO 22019-
|
| 42. |
957175
|
[1] |
Gasket
|
MO 22019-
|
| 43. |
16322
|
[1] |
Plug
|
MO 22019-
|
| 44. |
897327
|
[1] |
Gasket
|
|
| 45. |
192356
|
[1] |
Hexagon screw
|
|
| 46. |
955273
|
[4] |
Hexagon screw
|
|
| 47. |
941906
|
[5] |
Spring washer
|
|
| 48. |
|
|
|
Replaced by 1pc 833511 + 1pc 807363., MO-18791
|
| 48. |
833511
|
[1] |
Plug
|
MO 18792-20599
|
| 48. |
833496
|
[1] |
Plug
|
MO 20600-
|
| 49. |
925065
|
[1] |
O-ring
|
MO-18791
|
| 49. |
807363
|
[1] |
Sealing ring
|
MO 18792-20599
|
| 49. |
957191
|
[1] |
Gasket
|
MO 20600-
|
| 50. |
192357
|
[1] |
Screw
|
L=115mm
|
| 51. |
945295
|
[1] |
Screw
|
L=110mm
|
| 52. |
943795
|
[1] |
Hex. socket screw
|
L=130mm
|
| 53. |
946408
|
[1] |
Screw
|
L=75mm
|
| 54. |
955324
|
[1] |
Hexagon screw
|
L=60mm
|
| 55. |
955332
|
[1] |
Hexagon screw
|
L=120mm
|
| 56. |
955318
|
[2] |
Hexagon screw
|
L=30mm
|
| 57. |
940109
|
[8] |
Toothed washer
|
|
| 58. |
943835
|
[1] |
Plug
|
|
| 59. |
74033
|
[1] |
Hollow screw
|
|
| 60. |
957171
|
[2] |
Gasket
|
|
