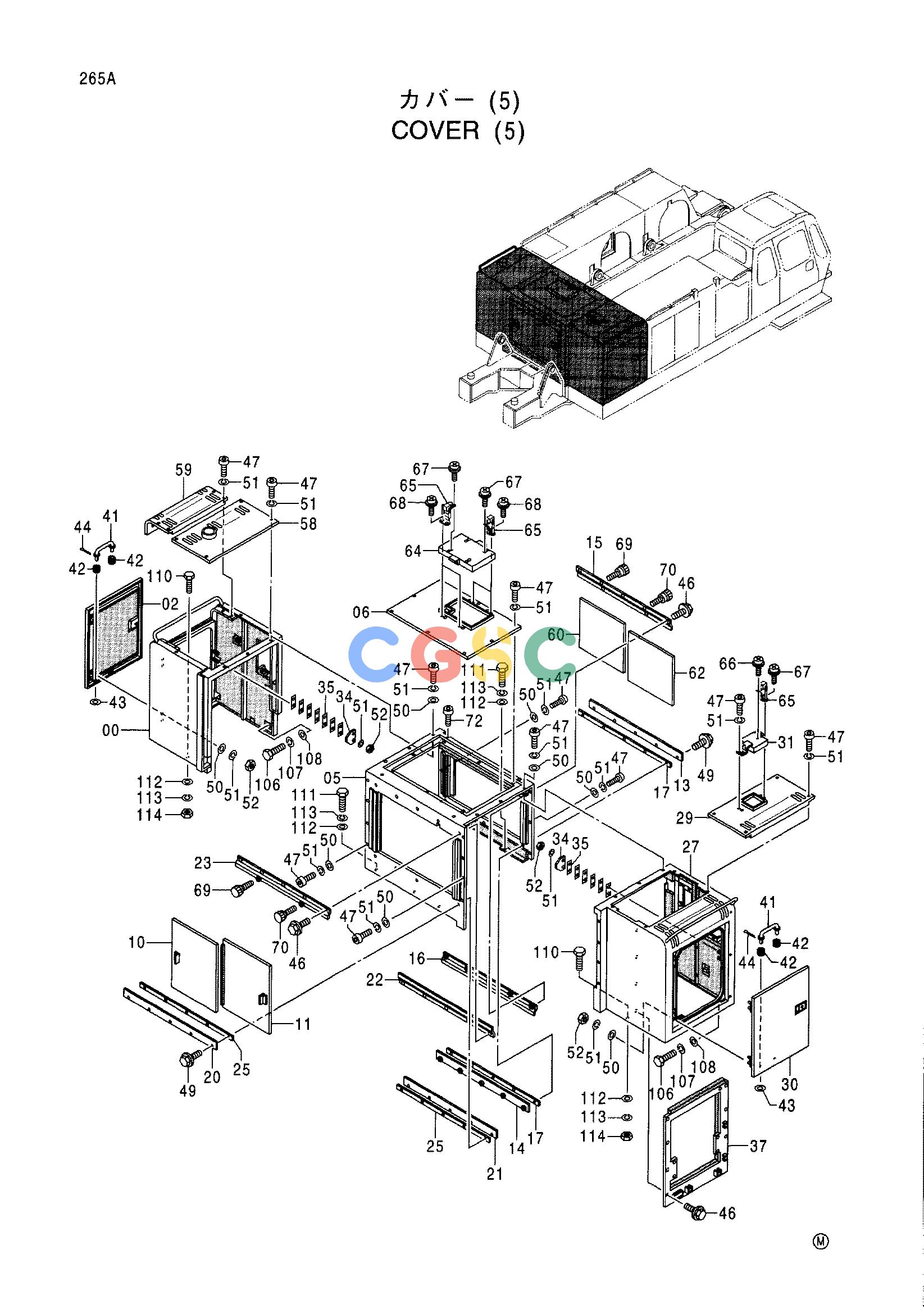

日立零件查询（CX1000）COVER (5) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
938 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 5005992 | [1] | COVER | |
| 02. | 7031697 | [1] | DOOR | |
| 05. | 5007287 | [1] | COVER | |
| 06. | 7031703 | [1] | COVER | |
| 10. | 9750411 | [1] | DOOR | |
| 11. | 8072554 | [1] | DOOR | |
| 13. | 4402891 | [1] | GUIDE | |
| 14. | 9750412 | [1] | GUIDE | |
| 15. | 9750413 | [1] | GUIDE | |
| 16. | 9750414 | [1] | GUIDE | |
| 17. | 4403182 | [2] | GUIDE | |
| 20. | 4402892 | [1] | GUIDE | |
| 21. | 9750415 | [1] | GUIDE | |
| 22. | 9750417 | [1] | GUIDE | |
| 23. | 9750416 | [1] | GUIDE | |
| 25. | 4402893 | [2] | GUIDE | |
| 27. | 5005975 | [1] | COVER | |
| 29. | 7034816 | [1] | COVER | |
| 30. | 7031701 | [1] | DOOR | |
| 31. | 8066110 | [1] | COVER | |
| 34. | 4330980 | [2] | LOCK | |
| 35. | 4330984 | [12] | SHIM | |
| 37. | 7034785 | [1] | COVER | |
| 41. | 9742293 | [2] | STAY | |
| 42. | 4330808 | [4] | BUSHING;RUBBER | |
| 43. | A590108 | [2] | WASHER;PLANE | |
| 44. | A762013 | [2] | PIN;SPLIT | |
| 46. | J011020 | [18] | BOLT;SEMS | |
| 47. | 4330985 | [43] | BOLT | |
| 49. | J011030 | [10] | BOLT;SEMS | |
| 50. | A590110 | [29] | WASHER;PLANE | |
| 51. | A590910 | [55] | WASHER;SPRING | |
| 52. | J950010 | [12] | NUT | |
| 58. | 7034812 | [1] | COVER | |
| 59. | 7034811 | [1] | COVER | |
| 60. | 9750409 | [1] | DOOR | |
| 62. | 9750410 | [1] | DOOR | |
| 64. | 7033527 | [1] | COVER | |
| 65. | 4389861 | [5] | CATCH | |
| 66. | J450410 | [2] | SCREW;SEMS | |
| 67. | J450412 | [10] | SCREW;SEMS | |
| 68. | J450414 | [8] | SCREW;SEMS | |
| 69. | 4389897 | [2] | KNOB | |
| 70. | 4389898 | [2] | KNOB | |
| 72. | 4330985 | [4] | BOLT | |
| 106. | J901025 | [7] | BOLT | |
| 107. | A590910 | [7] | WASHER;SPRING | |
| 108. | A590110 | [7] | WASHER;PLANE | |
| 110. | J901230 | [4] | BOLT | |
| 111. | J901220 | [5] | BOLT | |
| 112. | 449490 | [9] | WASHER | |
| 113. | A590912 | [9] | WASHER;SPRING | |
| 114. | J950012 | [4] | NUT | |
