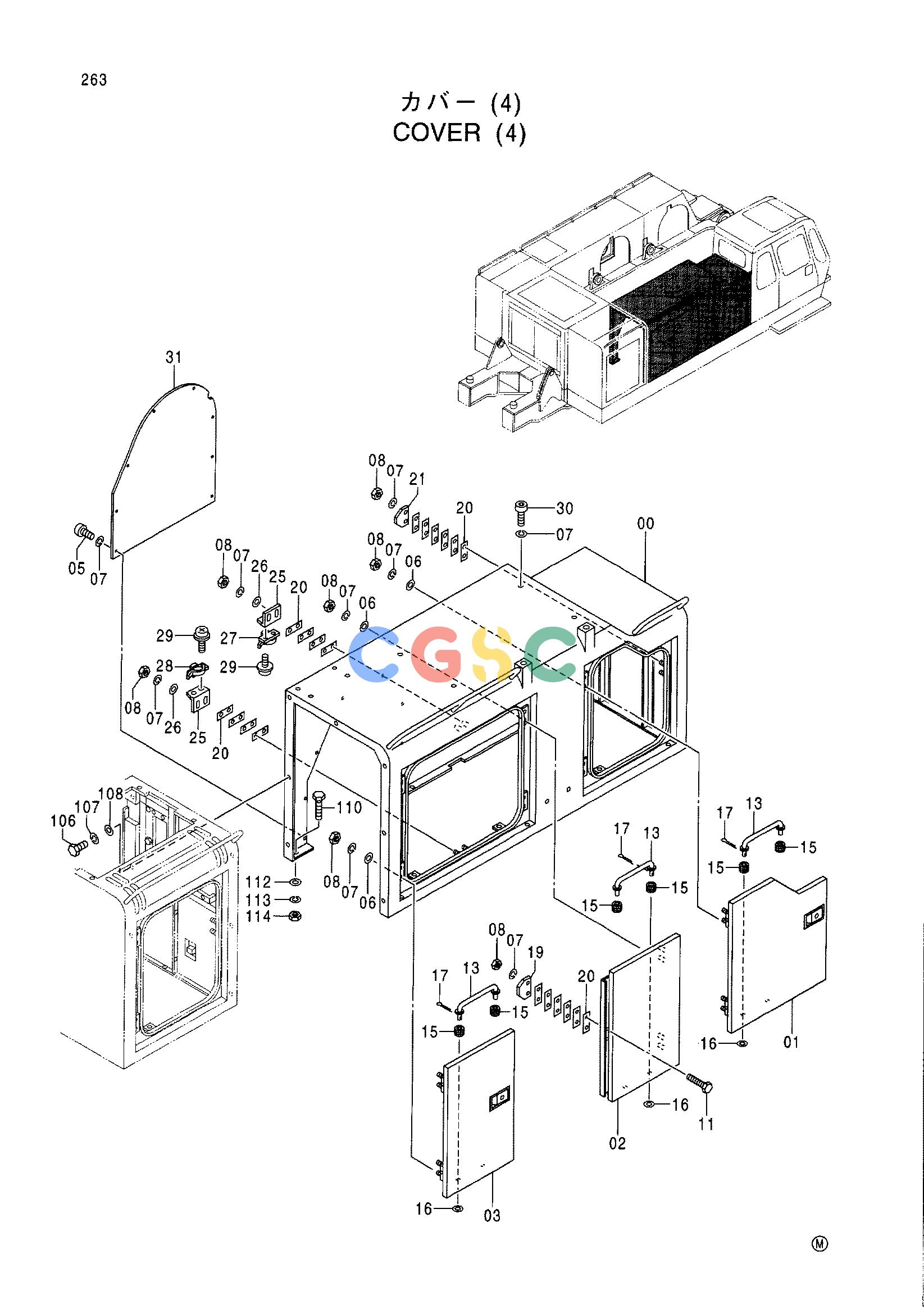

日立零件查询（CX1000）COVER (4) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
298 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 5007707 | [1] | COVER;R | |
| 01. | 7031698 | [1] | DOOR | |
| 02. | 7031699 | [1] | DOOR | |
| 03. | 7031700 | [1] | DOOR | |
| 05. | 4330985 | [8] | BOLT | |
| 06. | A590110 | [12] | WASHER;PLANE | |
| 07. | A590910 | [32] | WASHER;SPRING | |
| 08. | J950010 | [20] | NUT | |
| 11. | J901028 | [2] | BOLT | |
| 13. | 9742293 | [3] | STAY | |
| 15. | 4330808 | [6] | BUSHING;RUBBER | |
| 16. | A590108 | [3] | WASHER;PLANE | |
| 17. | A762013 | [3] | PIN;SPLIT | |
| 19. | 4330979 | [1] | LOCK | |
| 20. | 4330984 | [20] | SHIM | |
| 21. | 4330980 | [1] | LOCK | |
| 25. | 4346147 | [2] | BRACKET | |
| 26. | J217083 | [4] | WASHER | |
| 27. | 4346579 | [1] | LOCK | |
| 28. | 4346580 | [1] | LOCK | |
| 29. | J680412 | [4] | SCREW;SEMS | |
| 30. | 4330985 | [4] | BOLT | |
| 31. | 4454180 | [1] | COVER | |
| 106. | J901025 | [7] | BOLT | |
| 107. | A590910 | [7] | WASHER;SPRING | |
| 108. | A590110 | [7] | WASHER;PLANE | |
| 110. | J901230 | [8] | BOLT | |
| 112. | 449490 | [8] | WASHER | |
| 113. | A590912 | [8] | WASHER;SPRING | |
| 114. | J950012 | [8] | NUT | |
