斗山零件查询AIR CLEANER ASS'Y SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
327 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

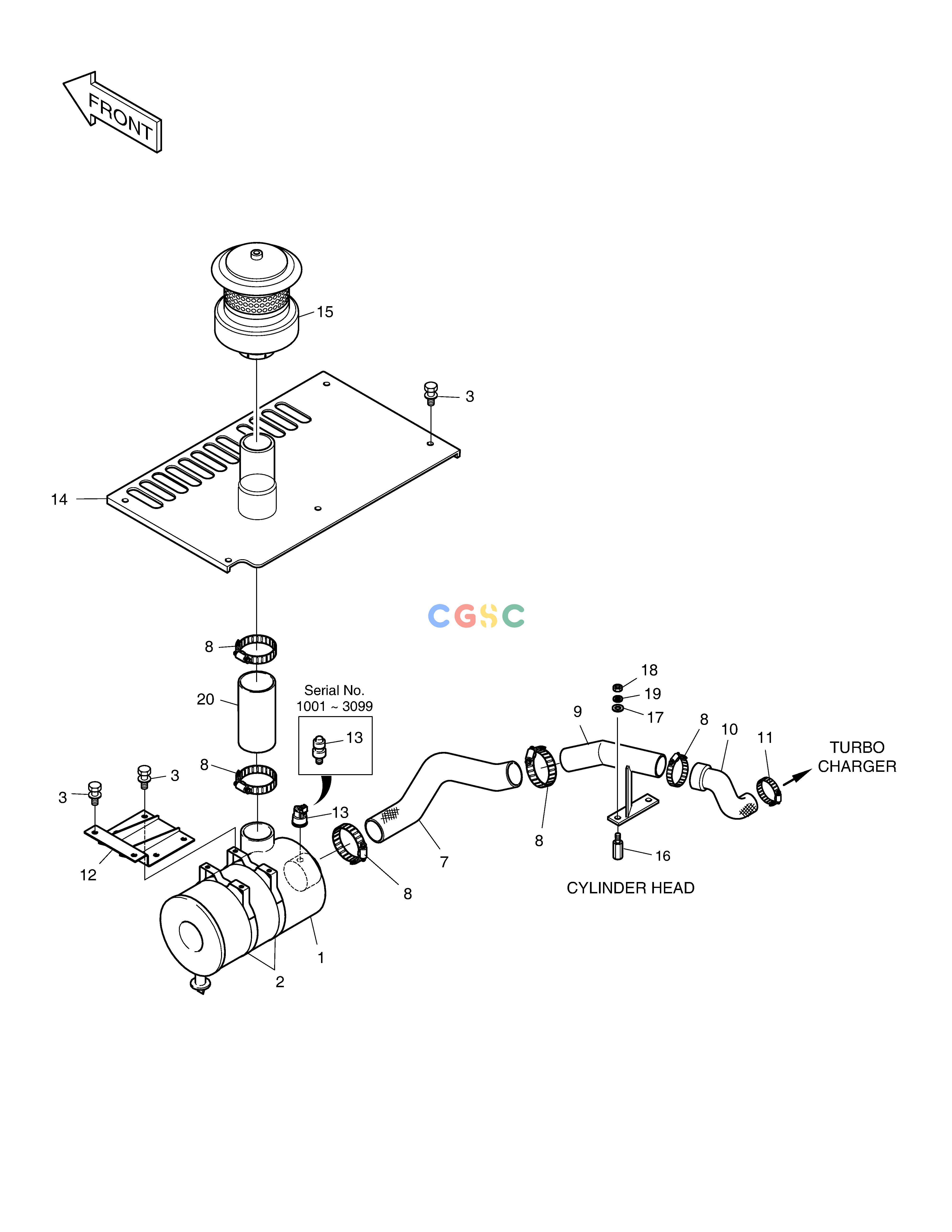

204-00064A
|
[-] |
AIR CLEANER ASS'Y
|
|
| -. |
400414-00404
|
[-] |
|
|
| 1. |
2204-9039A
|
[1] |
CLEANER;AIR
|
|
| 10. |
2185-1671A
|
[1] |
HOSE;AIR
|
|
| 11. |
S8470095
|
[1] |
CLAMP;HOSE
|
|
| 12. |
2197-1517A
|
[1] |
BRACKET
|
|
| 13. |
170-00004
|
[1] |
INDICATOR
|
|
| 13. |
800217-00100
|
[1] |
INDICATOR,DUST
|
|
| 14. |
621-00300C
|
[1] |
COVER
|
|
| 15. |
K1017883
|
[1] |
PRE-CLEANER
|
|
| 16. |
2120-2165
|
[2] |
BOLT
|
|
| 17. |
S5010613
|
[2] |
WASHER
|
|
| 18. |
S4012633
|
[2] |
NUT
|
|
| 19. |
S5102603
|
[2] |
. WASHER
|
|
| 2. |
2124-1593A
|
[2] |
BAND;AIR CLEANER
|
|
| 20. |
185-00020
|
[1] |
HOSE;AIR
|
|
| 3. |
2120-2196D2
|
[11] |
BOLT;SET M10X1.5X25
|
|
| 7. |
2185-1784
|
[1] |
HOSE;AIR
|
|
| 8. |
S8470138
|
[5] |
CLAMP;HOSE
|
|
| 9. |
193-00911
|
[1] |
PIPE;AIR
|
|
