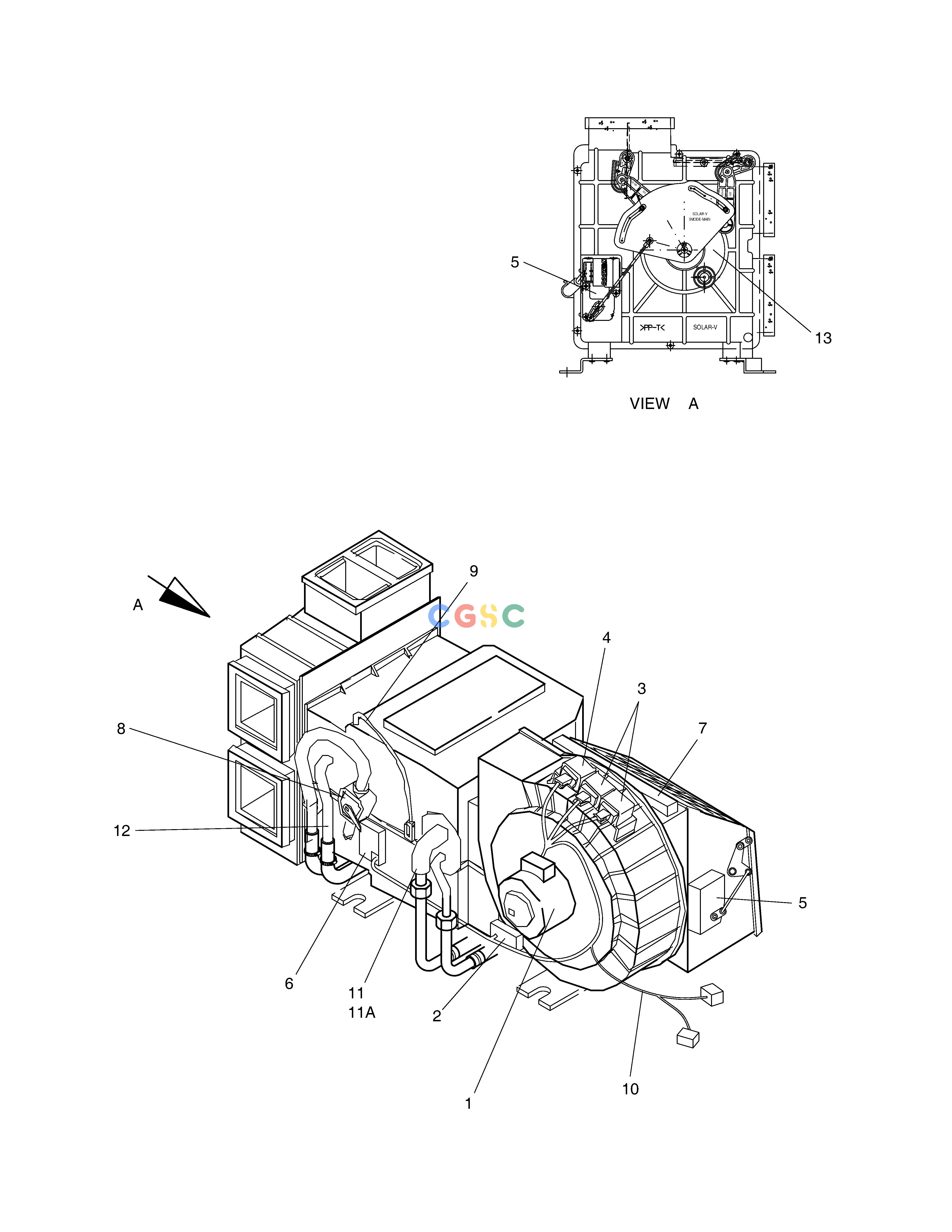

斗山零件查询AIRCON UNIT SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
484 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
920-00020B
|
[1] |
UNIT;AIRCON
|
|
| 1. |
2538-6015
|
[1] |
MOTOR;BLOWER 24V
|
|
| 10. |
2530-6005A
|
[1] |
HARNESS;AIRCON UNIT
|
|
| 11. |
2920-6111
|
[1] |
EVAPORATOR
|
|
| 11A. |
410116-00098
|
[1] |
VALVE
|
|
| 12. |
2920-6112
|
[1] |
HEATER CORE
|
|
| 13. |
133-00161
|
[1] |
MAIN LEVER
|
|
| 2. |
545-00003
|
[1] |
RESISTOR;BLOWER
|
|
| 3. |
2544-6023
|
[2] |
RELAY 10A
|
|
| 4. |
2544-6024
|
[1] |
RELAY 20A
|
|
| 5. |
2538-6016
|
[2] |
MOTOR;INTAKE 24V
|
|
| 6. |
2538-6017
|
[1] |
MOTOR;MIX 12V
|
|
| 7. |
2471-6050A
|
[1] |
FILTER;AIRCON
|
|
| 8. |
2426-6048
|
[1] |
VALVE;STEM
|
|
| 9. |
2547-6033
|
[1] |
SENSOR;TEMPERATURE
|
|
