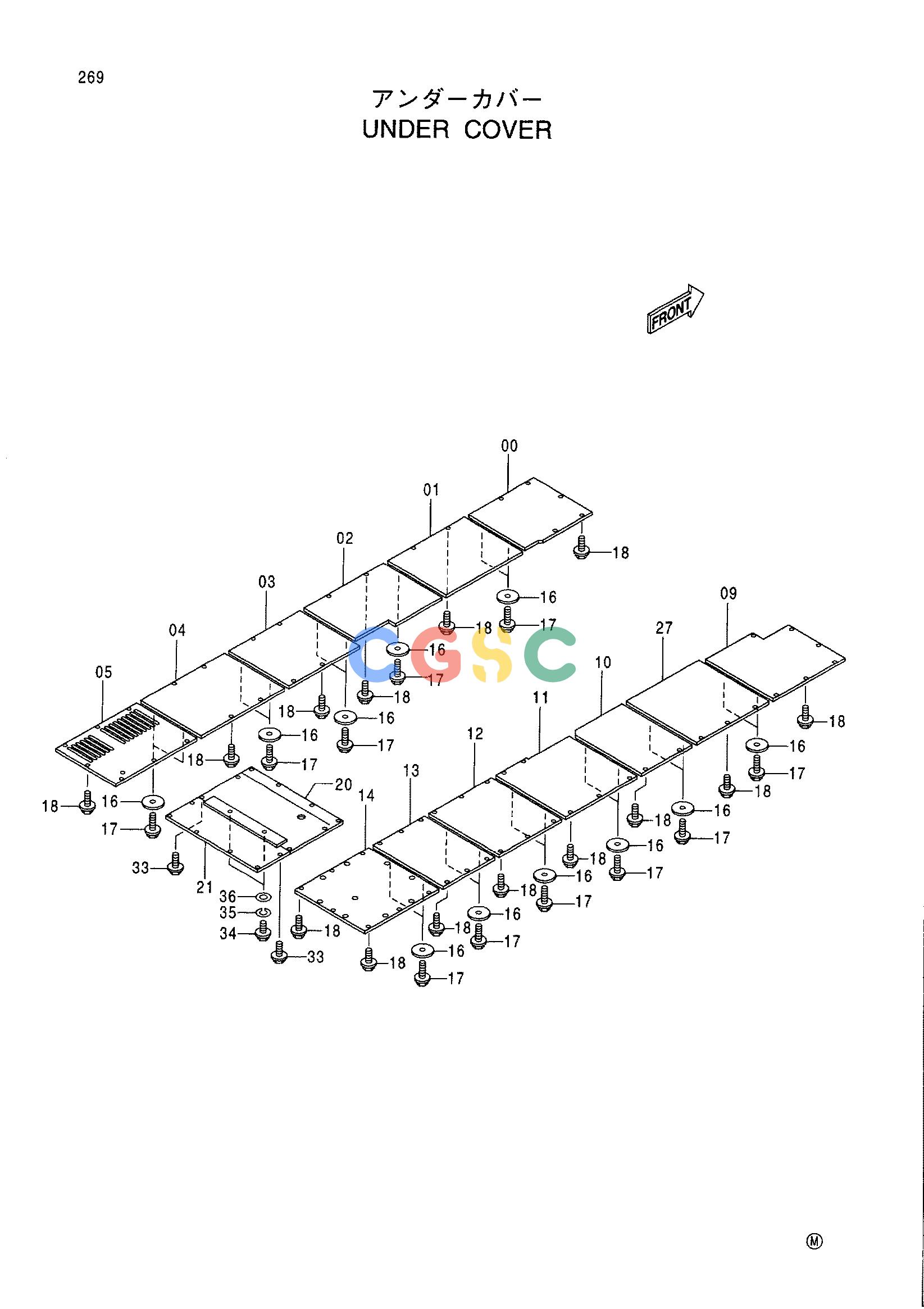

日立零件查询（CX1000）UNDER COVER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
252 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4449482 | [1] | COVER (1) | |
| 01. | 4382372 | [1] | COVER (2) | |
| 02. | 4449486 | [1] | COVER (3) | |
| 03. | 4449487 | [1] | COVER (4) | |
| 04. | 4382375 | [1] | COVER (5) | |
| 05. | 3079800 | [1] | COVER (6) | |
| 09. | 4406586 | [1] | COVER (1) | |
| 10. | 4382379 | [1] | COVER (3) | |
| 11. | 4451188 | [1] | COVER (4) | |
| 12. | 4382381 | [1] | COVER (5) | |
| 13. | 4382382 | [1] | COVER (6) | |
| 14. | 4383271 | [1] | COVER (7) | |
| 16. | 4319802 | [21] | PLATE | |
| 17. | J011035 | [21] | BOLT;SEMS | |
| 18. | J021030 | [59] | BOLT;SEMS | |
| 20. | 4449488 | [1] | COVER;REAR | |
| 21. | 9752381 | [1] | COVER;REAR | |
| 27. | 4417425 | [1] | COVER (2) | |
| 33. | J021030 | [10] | BOLT;SEMS | |
| 34. | J901025 | [2] | BOLT | |
| 35. | A590910 | [2] | WASHER;SPRING | |
| 36. | J217083 | [2] | WASHER | |
