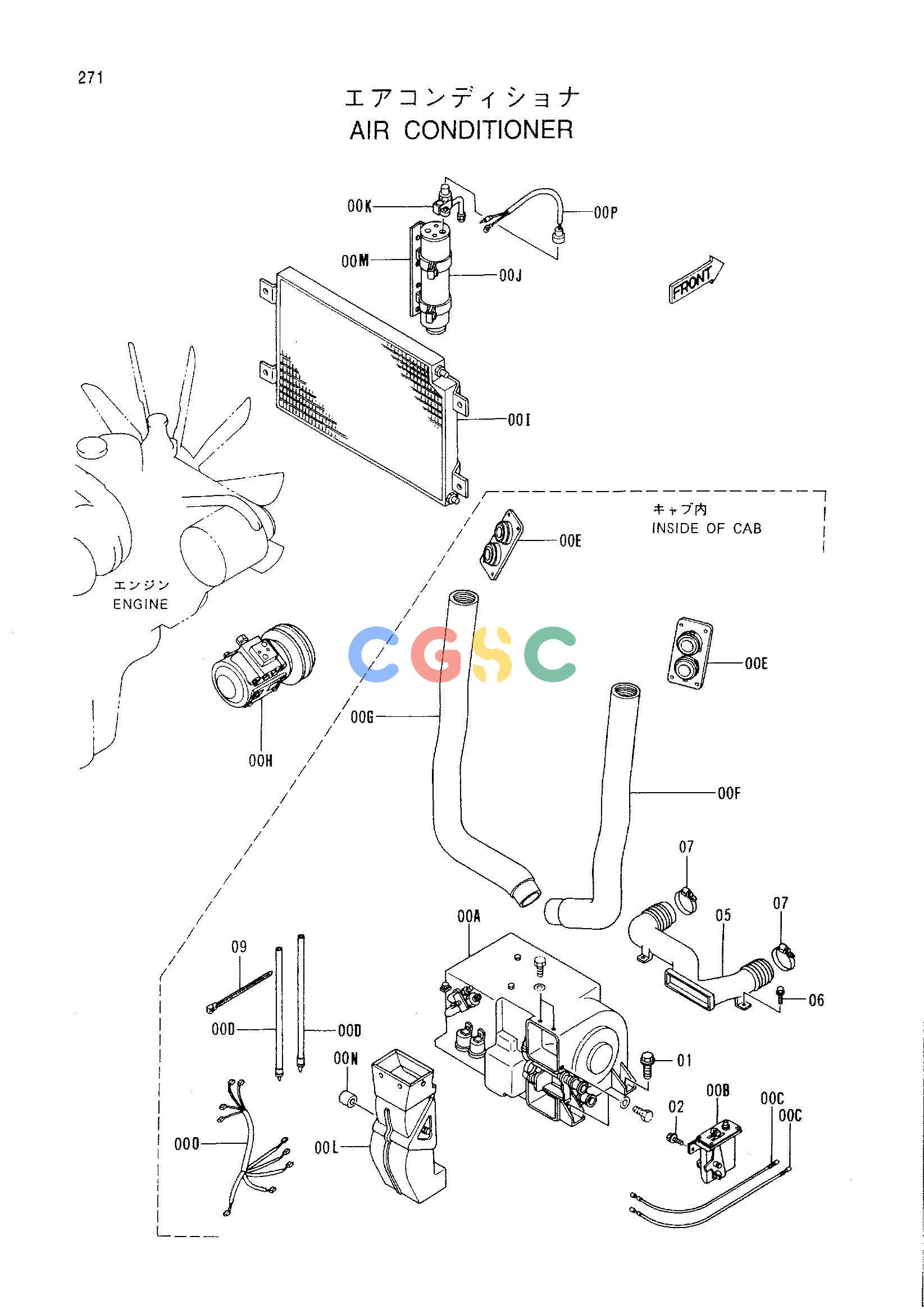

日立零件查询（CX1000）AIR CONDITIONER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
858 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00A-. | 4332670 | [1] | AIR-CONDITIONER ASS'Y | |
| 00A. | 4333458 | [1] | UNIT | <for details: see separate page> |
| 00B. | 4281181 | [1] | CONTROLLER | <for details: see separate page> |
| 00C. | 4251898 | [2] | CABLE;CONTROL | |
| 00D. | 4341980 | [2] | HOSE;DRAIN | |
| 00E. | 4341339 | [2] | GRILLE | |
| 00F. | 4332671 | [1] | HOSE | |
| 00G. | 4332672 | [1] | HOSE | |
| 00H. | 4333459 | [1] | COMPRESSOR | |
| 00I. | 4333460 | [1] | CONDENSER | |
| 00J. | 4333461 | [1] | RECEIVER | |
| 00K. | 4339727 | [1] | PIPE | |
| 00L. | 4281179 | [1] | DUCT;AIR | |
| 00M. | 4333462 | [1] | HOLDER | |
| 00N. | 4293151 | [1] | PLUG | |
| 00O. | 4281186 | [1] | WIRE;HARNESS | |
| 00P. | 4333463 | [1] | WIRE;HARNESS | |
| 01. | J021030 | [4] | BOLT;SEMS | |
| 02. | J010820 | [2] | BOLT;SEMS | |
| 05. | 4264644 | [1] | DUCT;HEATER | |
| 06. | J021030 | [2] | BOLT;SEMS | |
| 07. | 4504491 | [2] | CLAMP;HOSE | |
| 09. | 4055312 | [4] | CLIP;BAND | |
