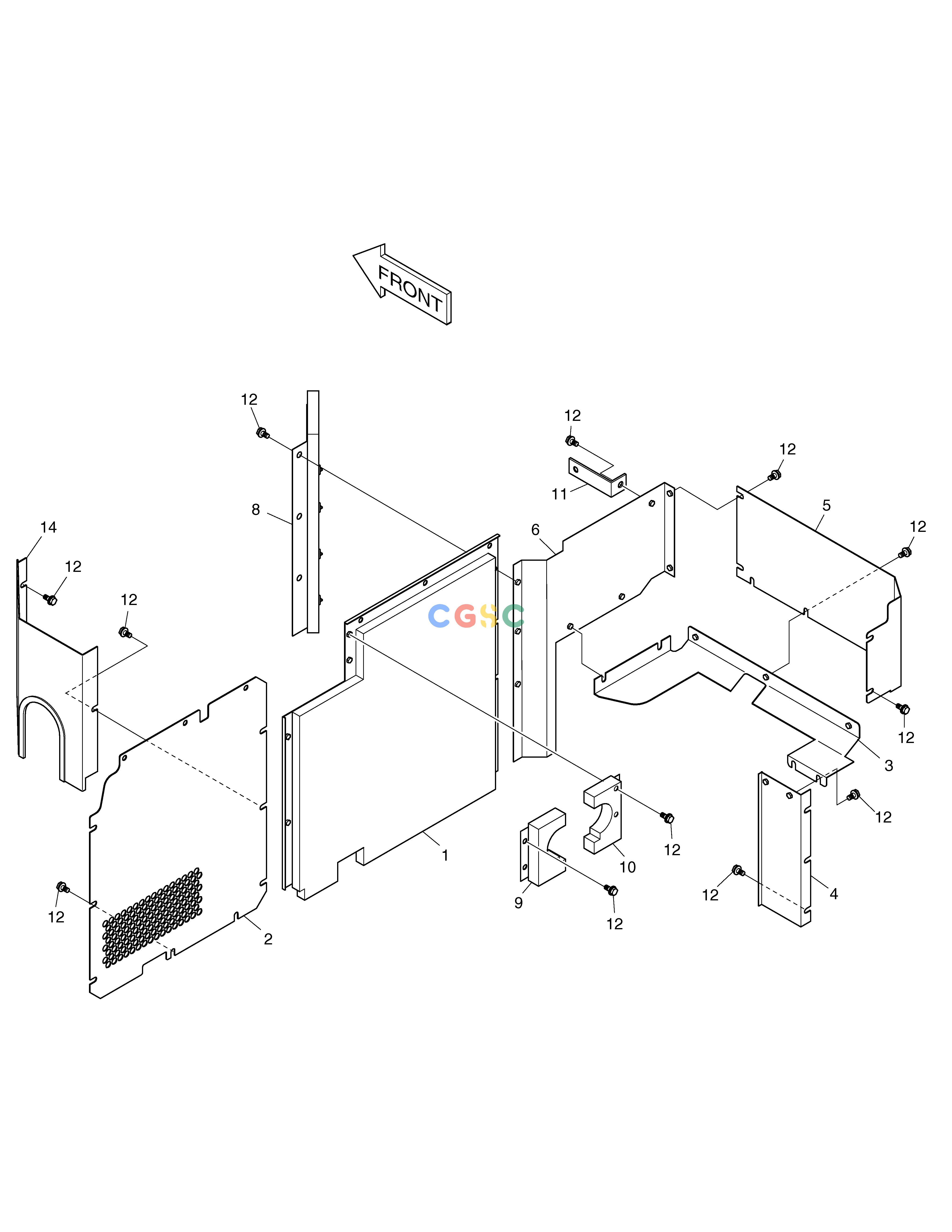

斗山零件查询BAFFLE SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
826 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
621-02493
|
[-] |
BAFFLE ASS'Y
|
|
| 1. |
2627-1835G
|
[1] |
COVER;BAFFLE
|
|
| 10. |
621-02253
|
[1] |
COVER
|
|
| 11. |
2891-1777
|
[1] |
PLATE
|
|
| 12. |
2120-2196D5
|
[39] |
BOLT;SET M10X1.5X20
|
|
| 14. |
621-00511A
|
[1] |
COVER
|
|
| 2. |
2627-1836B
|
[1] |
COVER;BAFFLE
|
|
| 3. |
2627-1841E
|
[1] |
COVER;BAFFLE
|
|
| 4. |
2627-1820B
|
[1] |
COVER;BAFFLE
|
|
| 5. |
2627-1821E
|
[1] |
COVER;BAFFLE
|
|
| 6. |
2627-1840E
|
[1] |
COVER;BAFFLE
|
|
| 8. |
621-02464C
|
[1] |
COVER;BAFFLE
|
|
| 9. |
621-02252
|
[1] |
COVER
|
|
